Volvo A25E - Page 132

Service and maintenance
132 Electrical system

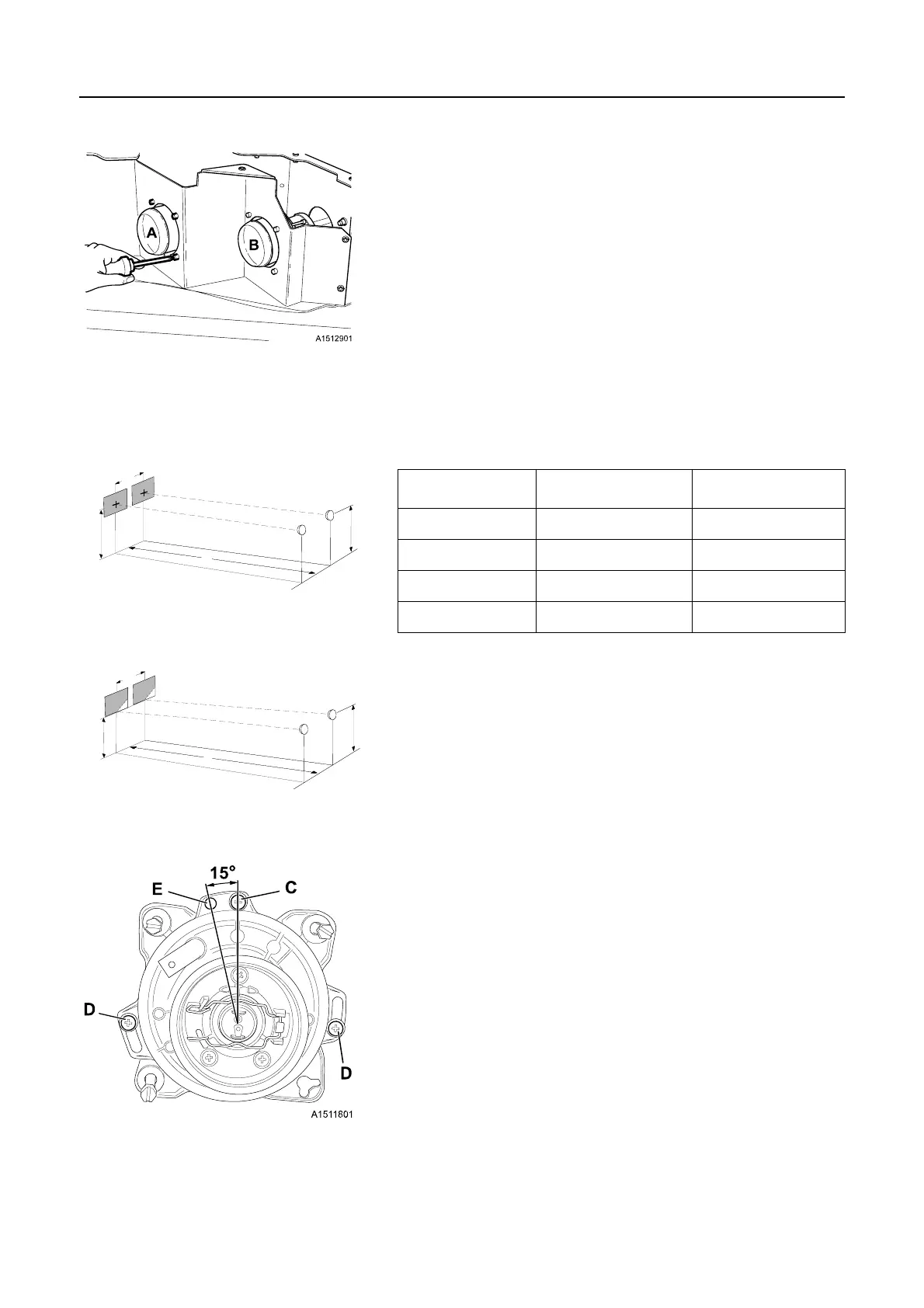

Headlights, adjusting
The setting of the headlights is of great importance, especially
when operating on public roads during darkness. The low beams
from the headlights are of the asymmetrical type.
1 Place the machine in service position, see page 95. The battery
disconnect switch shall be turned on.
2 Measure and mark according to the table below.
3 Open the engine hood.
4 Turn on high beam (A) or low beam (B).
5 Adjust the beam with the three adjusting screws.
6 Turn on the high beams.
7 Adjust the high beam with the three adjusting screws on the
front of the headlight.
8 Turn off the high or low beams.
9 Close the engine hood.
Left/right hand traffic, adjusting
The headlight is supplied adjusted for right-hand traffic.
Adjusting for left-hand traffic
1 Remove screw (C).
2 Loosen screws (D).
3 Turn the back piece so that hole (E) aligns with screw hole (C).
4 Install the screw (C).
5 Tighten screws (D).
Dimensions Low beams High beams
B 1950 mm 1650 mm
H1 1458 mm 1458 mm
H2 1215 mm 1458 mm
L 5000 mm 5000 mm
A High beams
B Low beams
B
A
9009
2
00
B
L
H
2
H
1
Low beams
B
A
9009
2
0
1
B
H
2
L
H
1
High beams
CScrew
D Screws
EHole
