Operating instructions
Transporting the machine 81
1 Lock the steering joint with the steering joint lock, see page 79.
2 Block the rear wheels.
3 Release the parking brake and disengage differential locks. To
be able to do this, the start key has to be in position 1 and there
must be enough pressure in the compressed air tanks.
4 Lift the machine in the frame's front lashing eyes.

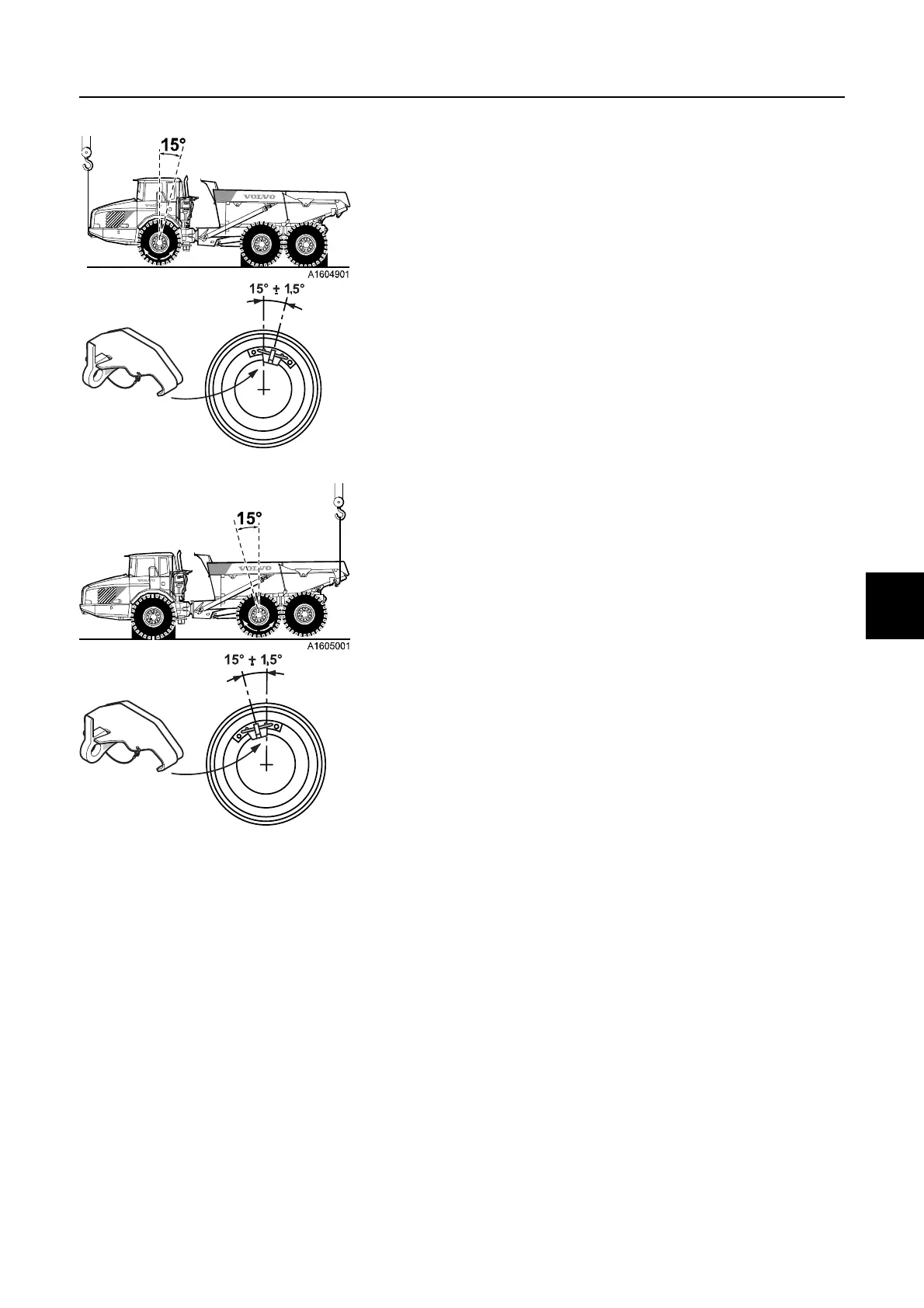

5 Turn the front wheels so that the wheels' lifting eyes are
positioned as shown in the adjacent figure, in line with the lifting
sling.
Steps 6–9 do not apply to A25E 4x4.
6 Block the front wheels.
7 Route a lifting sling or strap around the dump body's chute.
8 Turn the front bogie wheels so that the wheels' lifting eyes are
positioned as shown in the adjacent figure, in line with the lifting
sling.
9 Lower the machine.
10 Apply the parking brake.
