MAINTENANCE AND SERVICE
}}
575
Replacing the rear direction
indicator bulb

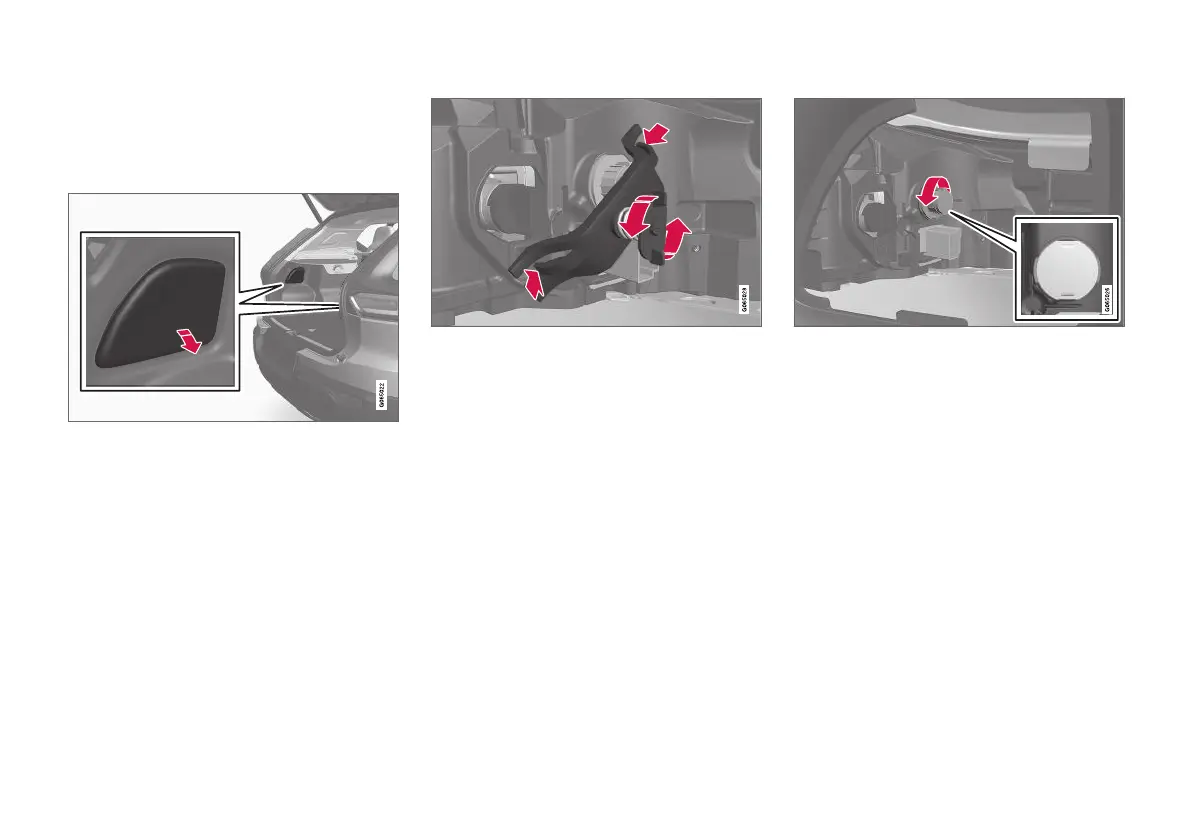

Bulbs for rear direction indicators are located
behind the panel in the side of the cargo area.
1. Press in the panel hatch at the upper edge
to detach it.
2. Move the insulation aside to access the sup-
porting bridge.
3. Unscrew the spring bolt anticlockwise and
remove the supporting bridge. It is easiest to
allow the screw to remain in the supporting
bridge.
4. Undo the grey bulb holder by turning it anti-
clockwise and pulling it out.
5. Remove the bulb by pressing it in and turn-
ing anticlockwise.
6. Fit a new bulb by pressing it in and turning it
clockwise.
7. Attach the bulb holder by turning it clock-
wise.
8. Fit the supporting bridge with associated
spring bolt and make sure that the clips align
in the correct position. Tighten the spring
bolt until it stops (max. 2 Nm).
9. Move back the insulation and then hook in
the panel and press it back into place.
