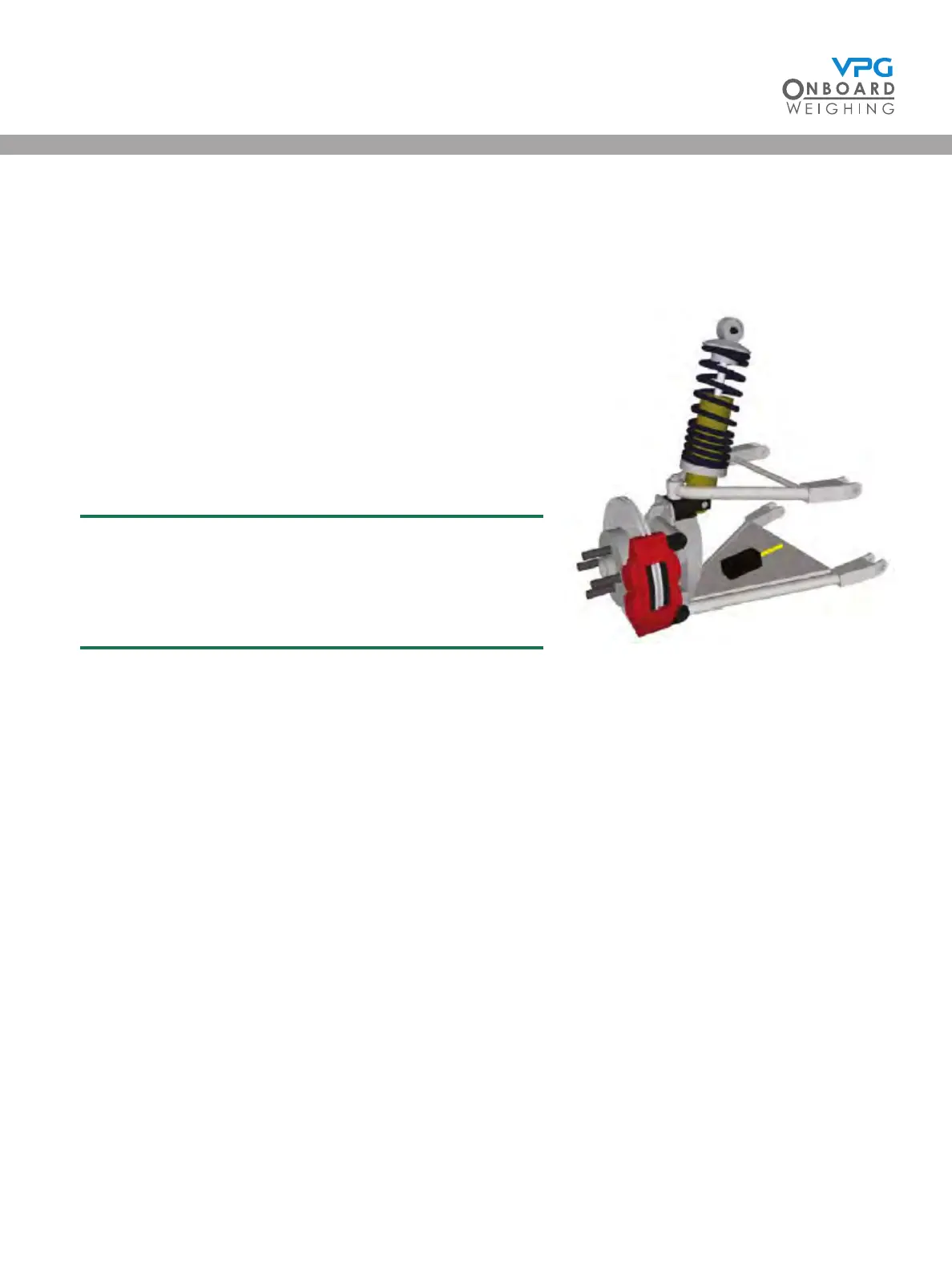

Axle transducer on a front strut
Select a position to install the transducer on a front strut where:
• The transducer is perpendicular to the orientation of the chassis with the cable running away
from the wheel
• The transducer is not at risk of damage from any part
on the vehicle throughout the full range of movement
of the strut
• The sensor cable can be routed to the junction
box without risk of damage from any moving parts
and allowing for the full range of movement of the
transducer on the strut
When mounting the sensor, ensure it is in the correct
orientation, with the groove at the top. See “How to
install a steel axle transducer” on page 27 for
further guidance
