Installation overview
Ensure the engine of the vehicle is o and the parking brake is applied before starng the
installaon
It is recommended that you use a mechanics pit inside a workshop to install the VanWeigh®
system
The VanWeigh® display unit is used to display sensor information once the system has been
installed, congured and calibrated.

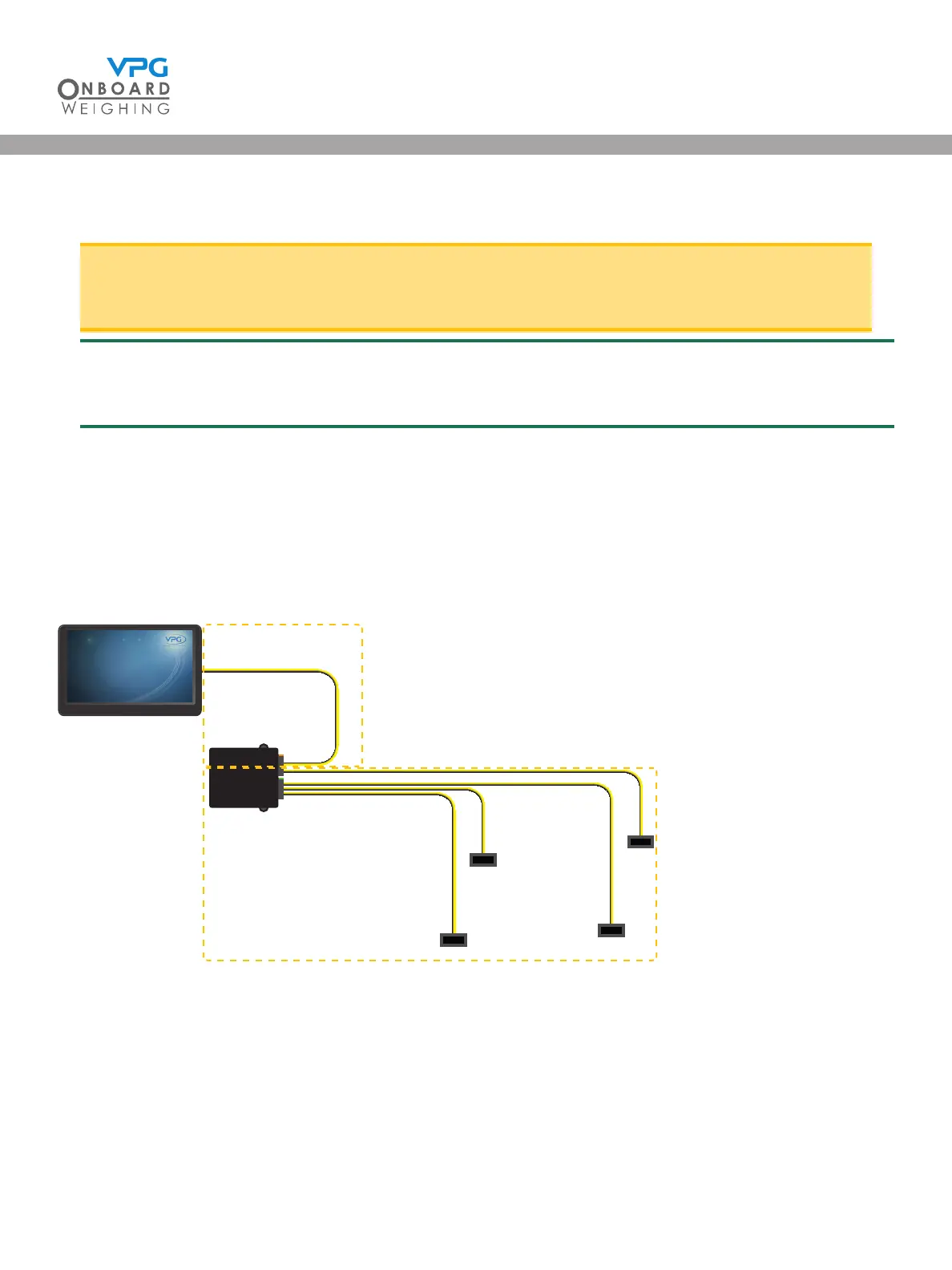

The display unit is connected to the junction box via the external domain cable. The junction box
is installed on the chassis of the vehicle and is connected to all four sensors on the vehicle. The
sensors and junction box form the internal domain.
The sensors send information back to the junction box. The junction box then transmits
information back to the display unit via the external domain.
External domain
Internal domain
Display Unit
Junction
box
Sensor
VanWeigh
®
VanWeigh
®
