How to install an air pressure transducer
A single air pressure transducer is used to monitor a single air
circuit in an air suspension system.

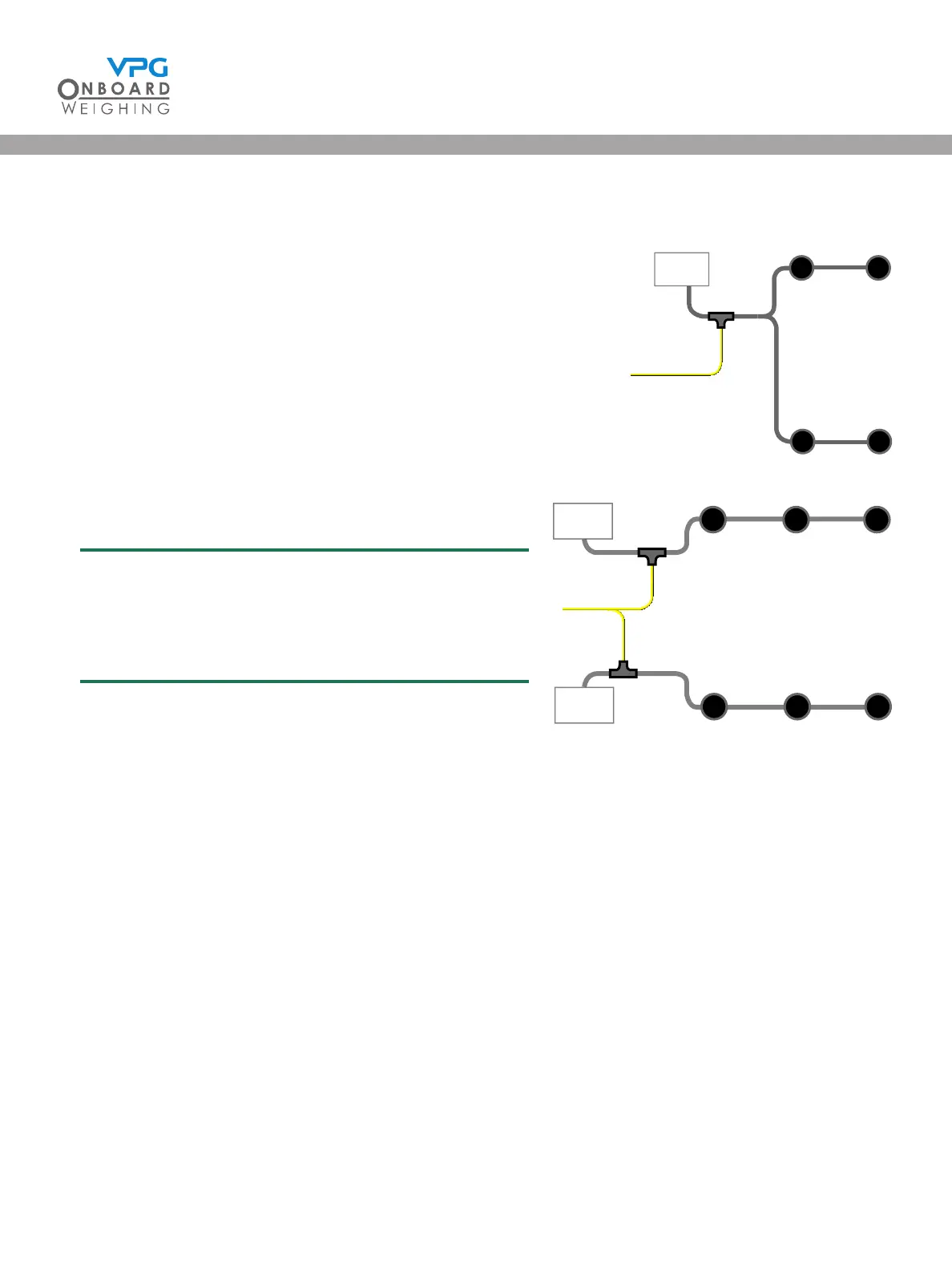

For example; a single air circuit with one ride height control
valve that controls multiple bellows on both sides of the vehicle
would require a single air pressure transducer.
If separate air circuits are present, a transducer must be
installed on each air circuit.
For example; two air circuits, one with a ride height control valve
to control the bellows on the left side and one with a ride height
control valve to control the bellows on the right, would
require two air pressure transducers, one for the circuit
on the left side of the truck and one on the right.
Ensure that you select the appropriate position
for the sensor. Please see “Sensor installation
positions” on page 23 for guidance on selecting
a position for a sensor
Truck Air
System
Truck Air
System
VanWeigh
®
VanWeigh
®
