30

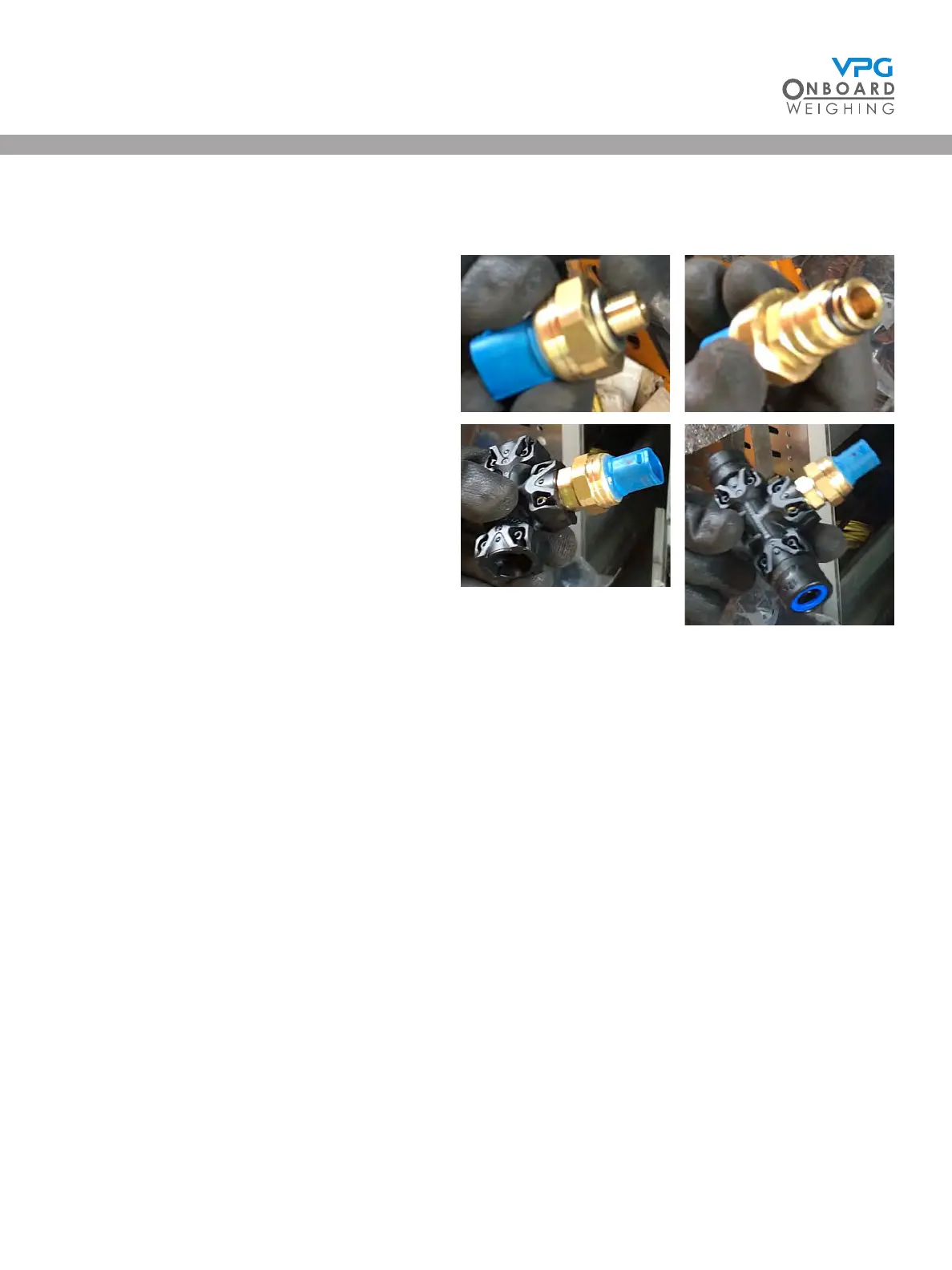

1. Build the air pressure transducer:
i. Disconnect the tting from the sensor
cable
ii. Place the washer over the thread. It is
recommended that PTFE tape is also
applied
iii. Connect the sensor to the tting. Use
18 mm and 24 mm spanners to tighten
iv. Remove the cap from the sensor
v. Connect the tting and sensor to the
stem of the air pressure T-connector.
Push-t until you hear two clicks to lock
the sensor and T-connector together
vi. Connect the air pipe ttings to each
side of the tee on the T-connector.
Push-t until you hear two clicks to lock
the air pipe tting and T-connector together
ii
iv
v vi
