VanWeigh display Molex Microfit 24-way
connector

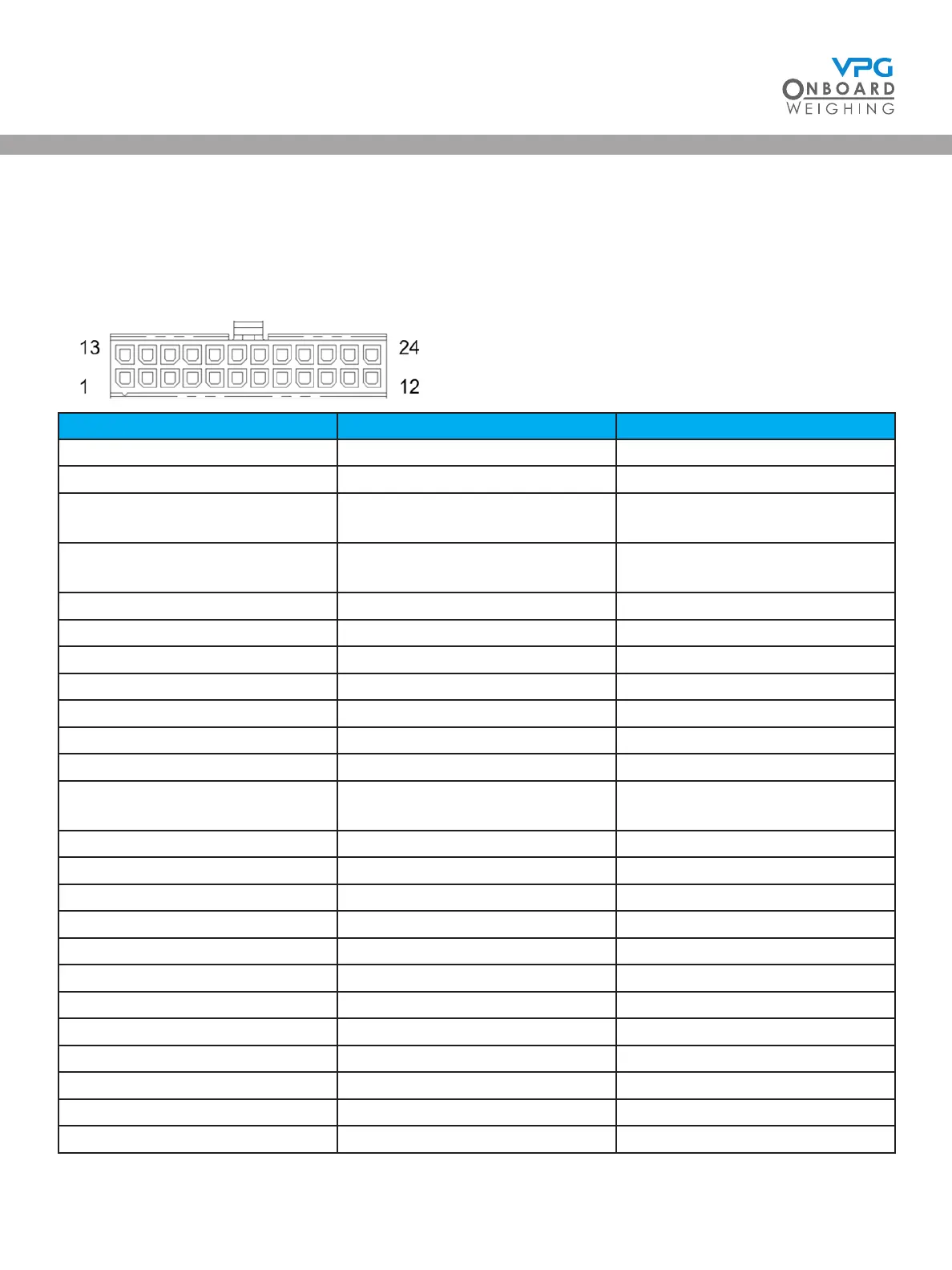

Molex Microt 24-Way connector view from front
Pin Function Description
1
2
3 RS232_1_RTS RS232_1 Request to send -
handshake
4 RS232_1_CTS RS232_1 Clear to send -
handshake
5
6
7 V_OUT Output voltage to junction box
8
9 GND Ground to junction box
10 V_IN Vehicle system voltage in
11 V_IG Vehicle ignition voltage in
12 VCL_OUT Display input voltage monitor
for diagnostics
13 GND Ground
14 GND Ground
15 RS232_1_TX RS232_1 Transmit
16 RS232_1_RX RS232_1 Receive
17 RS232_2_TX RS232_2 Transmit
18 RS232_2_RX RS232_2 Receive
19
20
21 CAN_MAIN_LO Main CAN port low output
22
23 GND_SUPPLY Vehicle system ground in
24 CAN_MAIN_HI Main CAN port high output
