Air pressure transducer
Select a position to install the transducer in an air circuit where:
• The transducer is between the self levelling valve and the air bellows
• The air transducer can be supported without risk of damage from any moving parts
• The cable can be routed to the junction box without risk of damage from any moving parts

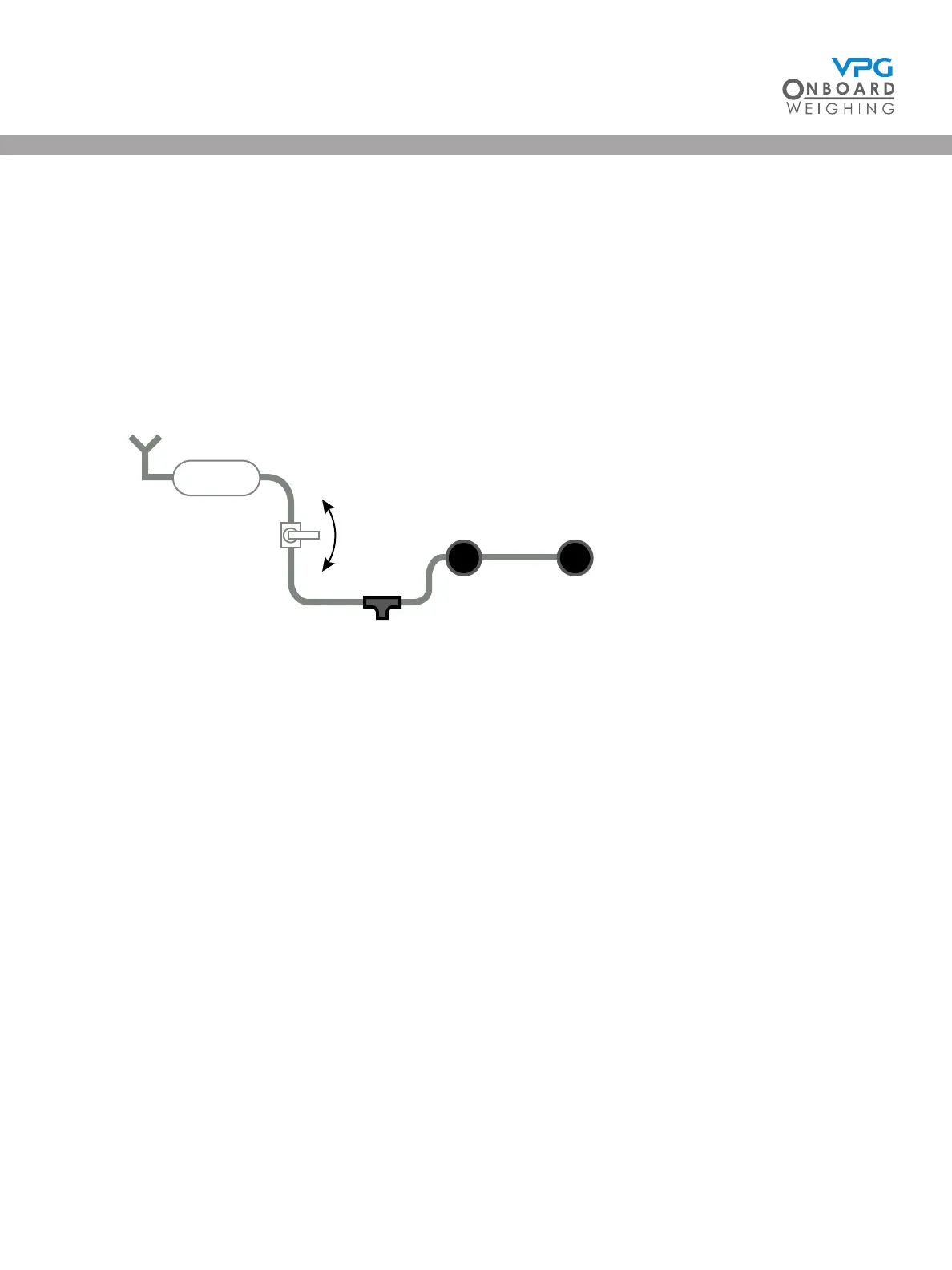

System
Pressure
Air Reservoir
Self Levelling
Valve
Air Pressure
Transducer
Suspension Bellows
VanWeigh
®
