VanWeigh® Display Unit Overview
The display unit is used to display the weight measurements from the sensors on the vehicle.
The display unit must be congured to display any values in the appropriate format and allow any
external devices to operate. See “How to congure the display” on page 54 and “” on page 55
The display unit will not display any weight measurements until the system has been:
• Congured to reect the setup of the sensors and junction boxes on the vehicle. See “Vehicle
conguration” on page 42
• Calibrated to accurately show the weight measurements. Once the conguration is complete,
see “How to calibrate the junction box” on page 51
The display unit will show a message to indicate the current stage of the conguration and
calibration process:
• Axles Sensors Zero Span. This message indicates that a junction box has been detected but
the axles and sensors have not been congured, and the zero and span calibrations have not
been done.
• Zero Span. This message indicates that a
junction box has been detected and the axles
and sensors have been congured, but the
zero and span calibrations have not been
done.
• Span. This message indicates that a junction
box has been detected, the axles and sensors
have been congured and the zero calibration
has been done, but the span calibration has
not been done.

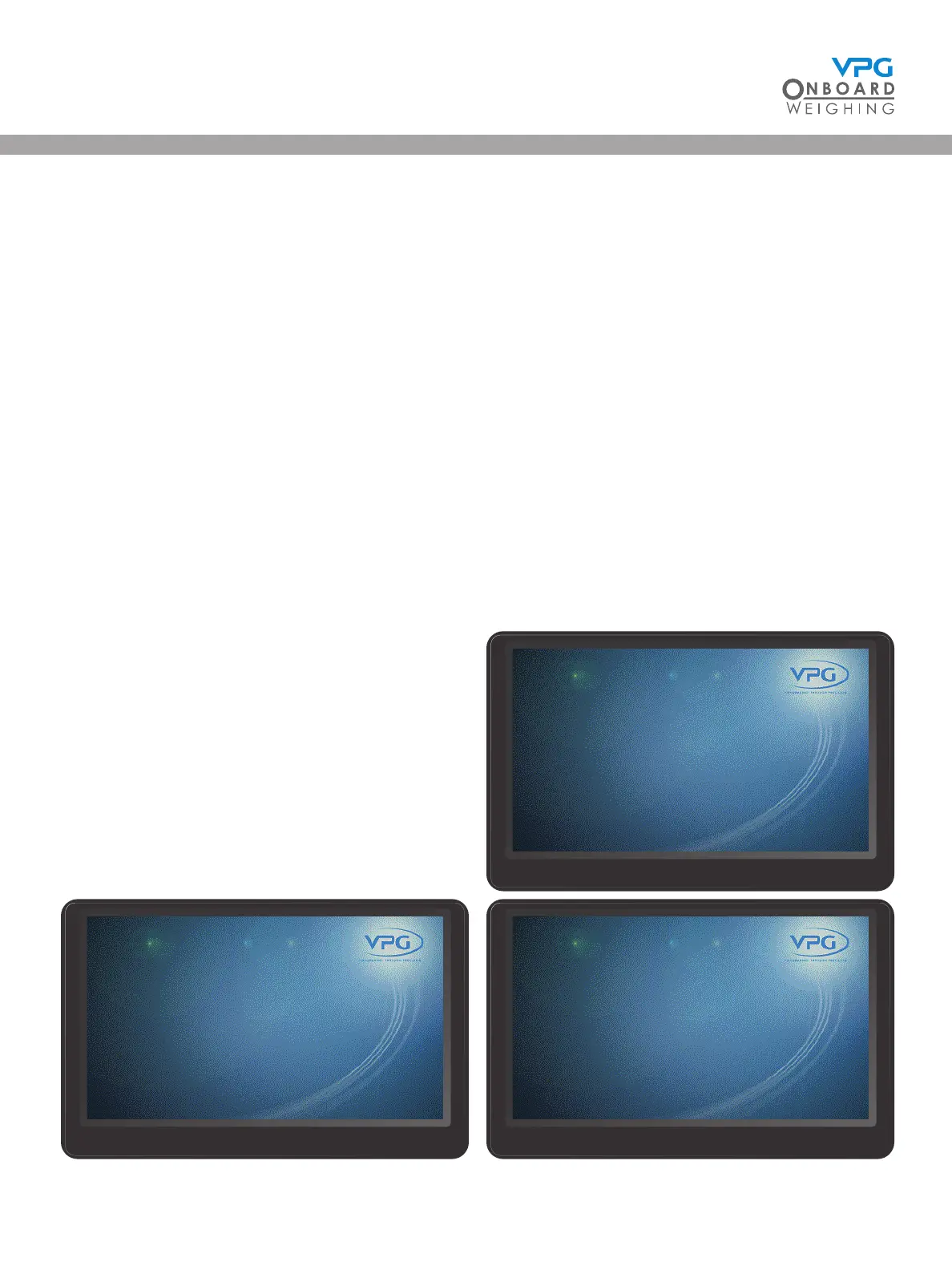

Uncongured
JBox Detected
Axles Sensors Zero Span
Uncongured
JBox Detected
Span
Uncongured
JBox Detected
Zero Span
