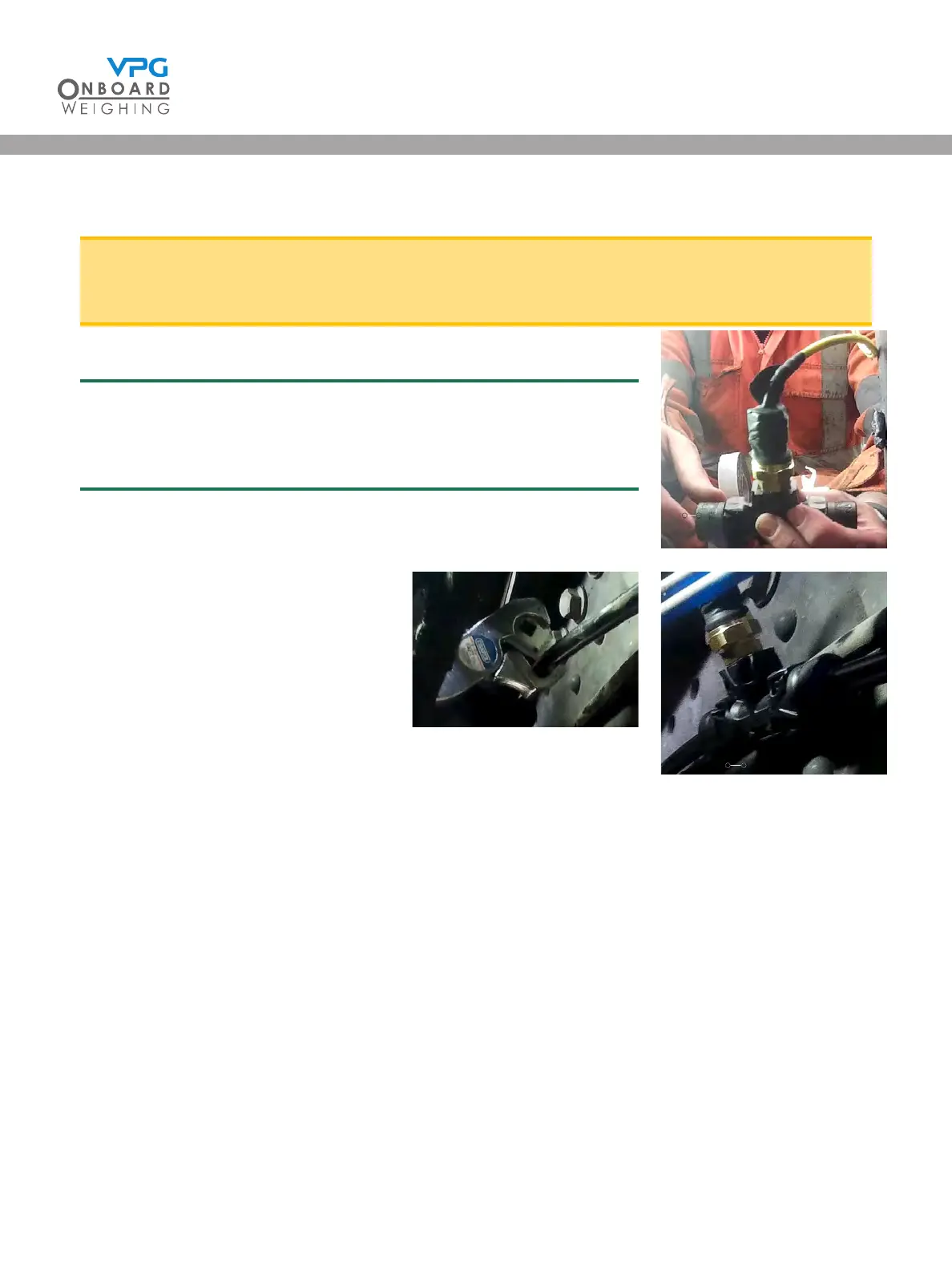

2. Depressurise the air suspension systems
Ensure the air pressure system is fully depressurised to avoid movement in the suspension
when the air pipe is cut
3. Reconnect the sensor to the cable
It is recommended that self amalgamating tape is wrapped
around the air transducer connector and a little way up the cable
to provide protection
4. Cut the air pipe at the appropriate position
5. Cut approximateley 1” of pipe o
the cut end of the air pipe
6. Clean any dirt from the ends of the
air pipe
7. Connect the air pipe to each side of
the air pressure transducer. Push-
t until you hear one click to lock
the pipe into the pipe ttings
8. Connect the sensor cable to the junction box
