28

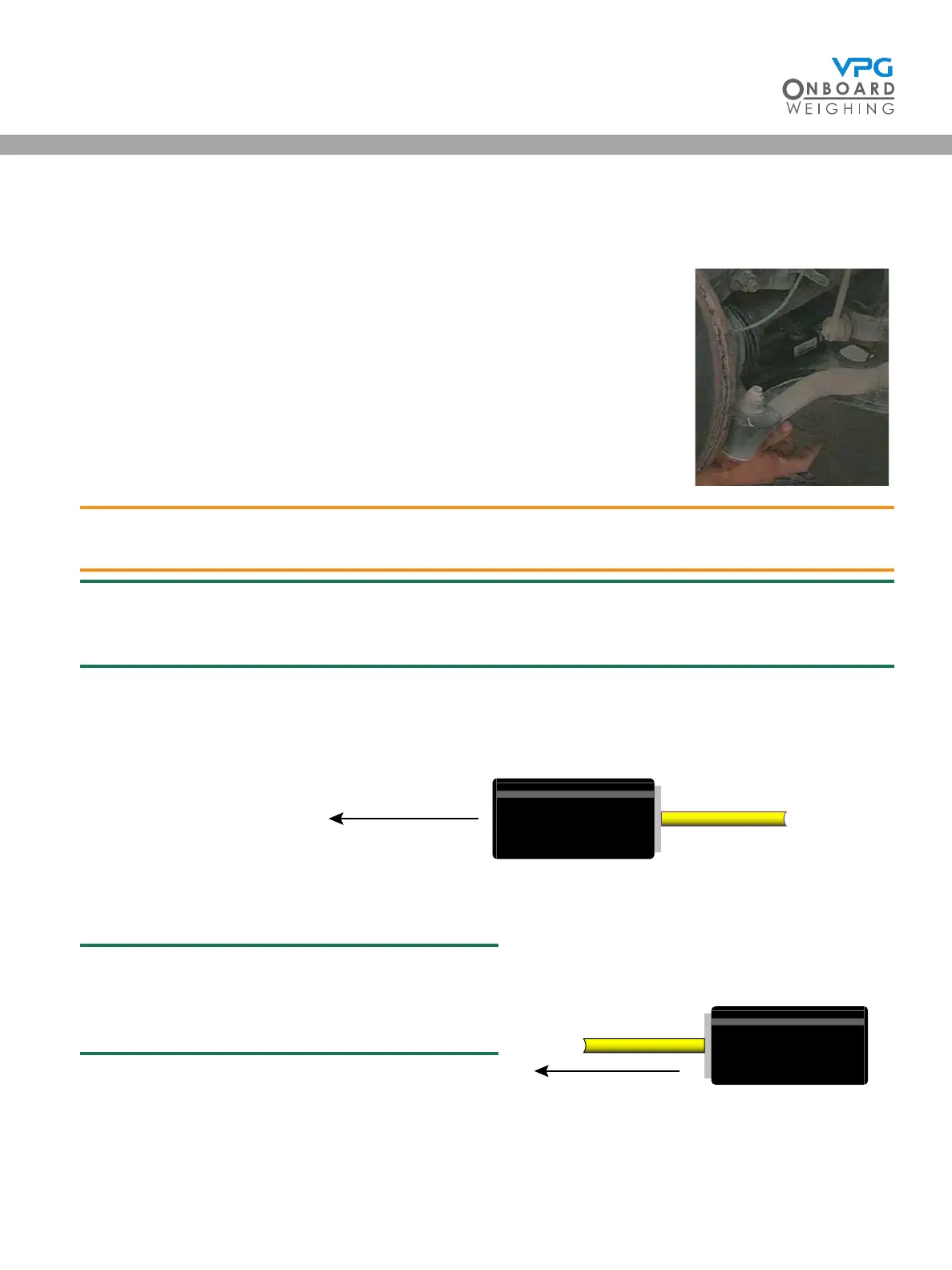

4. Mount the sensor to the suspension and clamp in place for a minimum of 10 minutes
5. Connect the cable to the junction box
• Ensure that cable to cable connections are well supported
• Avoid running cables on or near sharp objects
• Keep cables away from hot components such as exhausts and
engines
• Use cable ties to secure any excess cable to the chassis of the
vehicle
Use cable protector to protect the cable at positions where it may be exposed to damage
Ensure that you make a note of the serial number of the sensor and the location on the
vehicle where it is installed.
6. Make a note of the serial number of the sensor, the position it is located on the vehicle and the
direction it is facing e.g. SN: xxxx, position 1, front left sensor, facing forward
• The internal domain
cable is attached to
the rear of the
transducer. The
opposite face is used
to indicate which
direction the sensor is
facing
It is recommended that you use the system
conguration table to record this information.
See “System conguration table” on page 68
Cable attatched to the
rear of transducer
Front of the vehicle
Sensor Facing Forward
Front of the vehicle
Sensor Facing Backward
