21
(1)
(1)
(2)
(3)

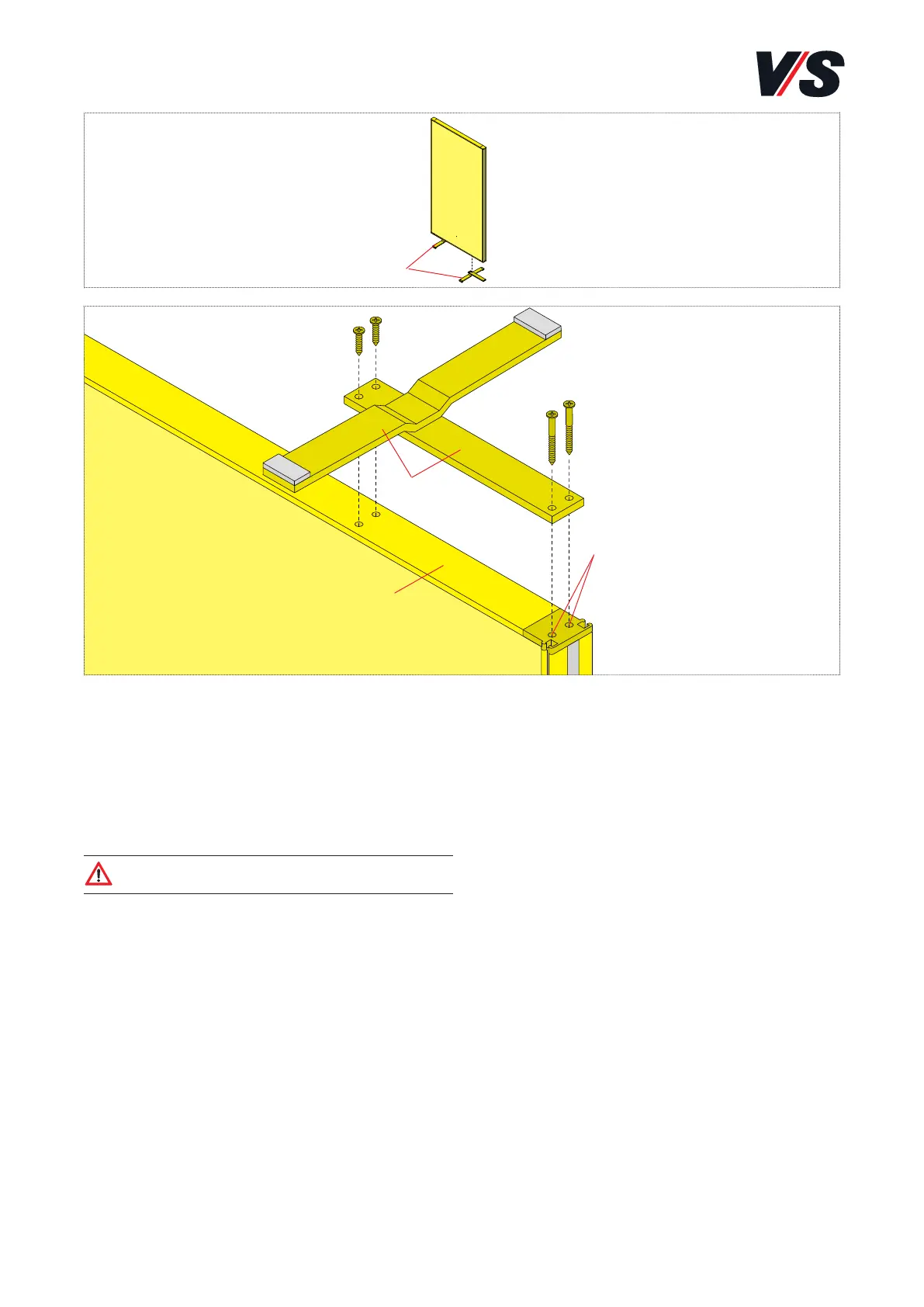

4. Discretion screen. Mounting T-foot.
Assembling discretion screen. Models 05710-05723.
Mounting T-foot: Screw T-foot (1) into screw channel (2) of
the clamping rail with 2 4.8 x 60 pan-head tapping screws.
Align the T-foot parallel with cover profile (3). Secure the
T-foot in the aluminium profile and fasten with 2 4.8 x 19
pan-head tapping screws.
Caution! Do not engage any accessories in the function
groove of the discretion screen.
Discretion screens are erected individually and not
connected with each other.
