VS 2000 Series - Functional screen load capability and mounting

22
30 kg
20 kg
1
2
3
05400-05413
05400-05413
05400-05413
05415-05428
No stand-alone installation!
05415-05428 No stand-alone installation!
05415-05428 No stand-alone installation!

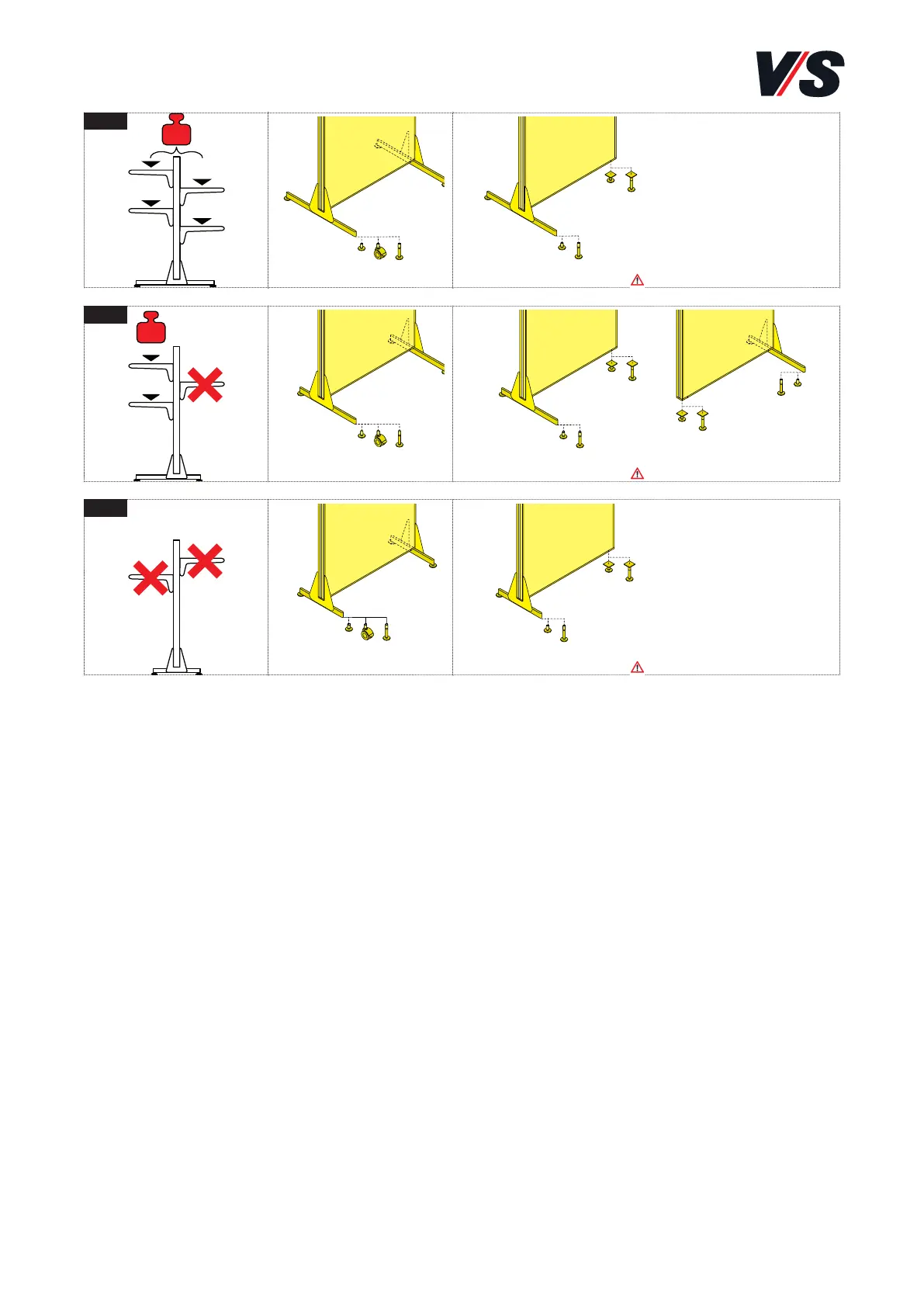

5. Functional screen. Overview of load
capability. Part 1.
[Fig. 1] Models 05400-05413, 05415-05428.
Long stabiliser = total load distributed to both sides max.
30 kg.
[Fig. 2] Models 05400-05413, 05415-05428.
Long stabiliser on one side = total load on the long stabiliser
side max. 20 kg, no load permitted on the functional screen
on the short stabiliser side.
[Fig. 3] Models 05400-05413, 05415-05428.
Short stabiliser = no load permitted on the functional
screen.
