VS 2000 Series - Accessories shelves and function rail; Mounting function rail

34
(1)
(2)
(1)
(3)
(2)
(1)
(1)
(3)
1 2
Mounting function rail. As described above for the shelves.
Important! The maximum function-rail load is:
05615 - 05618 10 kg
13. Accessories: Shelves and function
rail.

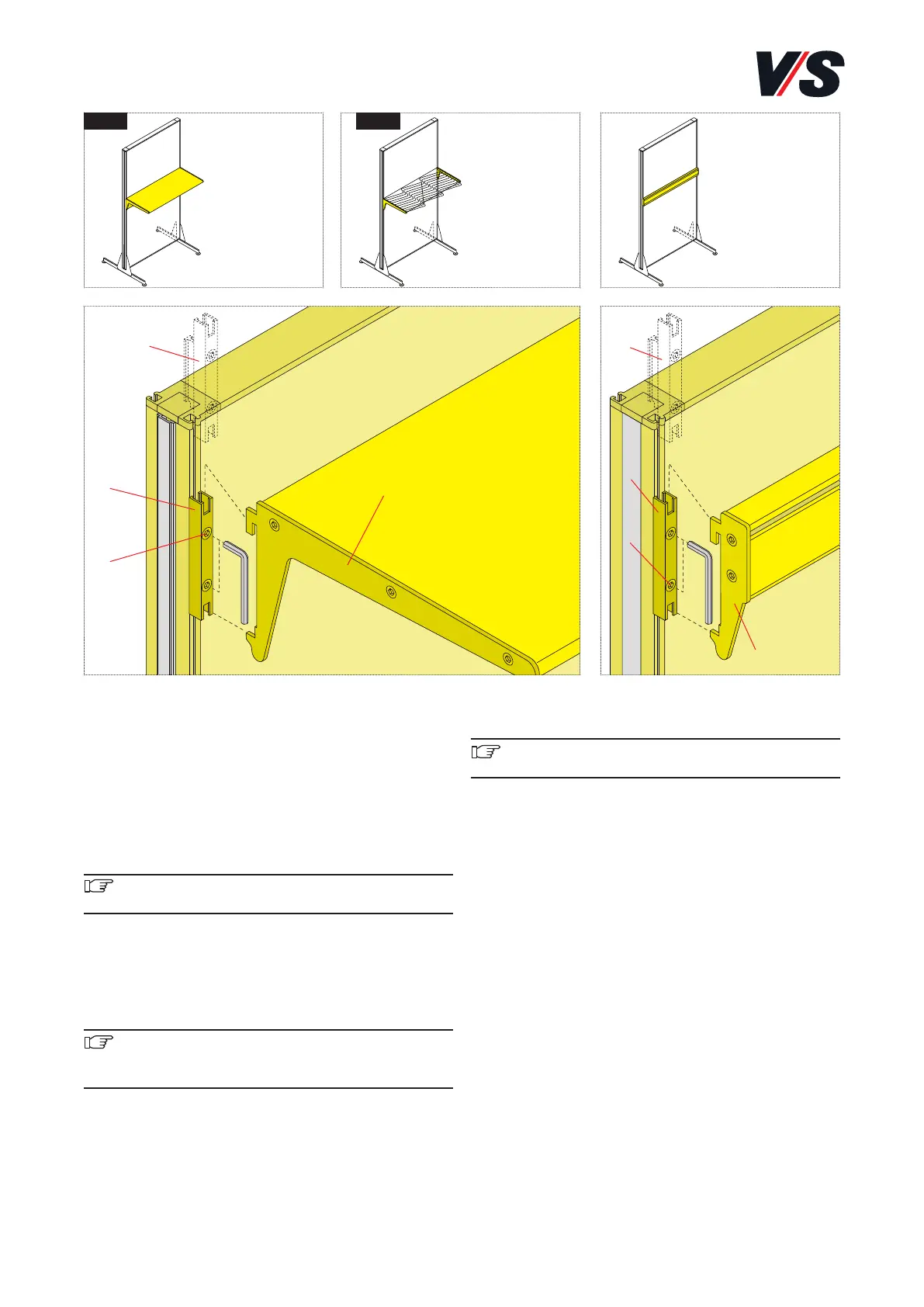

Mounting shelving accessories. Models LIGNOpal chipbo-
ard 05600-05603, corrugated lattice element 05605-
05606 for 800 and 900 wide screen elements only.
Slide entire clamping block (1) into the function groove in
the frame profile. Position entire clamping block (1) at the
desired height (using a tape measure).a
Important! Make sure the clamping blocks are positio-
ned at the same height on both sides.
Tighten the 2 M5 x 12 mm screws (2) (using TR 20). Engage
both shelf mounting brackets (3) at the same time, tilting
the shelf backwards slightly and snapping downwards into
the fastening lugs.
Important! The maximal shelf load is:
Fig. 1: 05600 - 05603 LIGNOpal 10 kg
Fig. 2: 05605, 05606 Lattice 3 kg
