33
NetWork
NetWork
(2)
(1)
(6)
(3)
(5) (4)
(11)
(9)
(10)
(8)
(7)

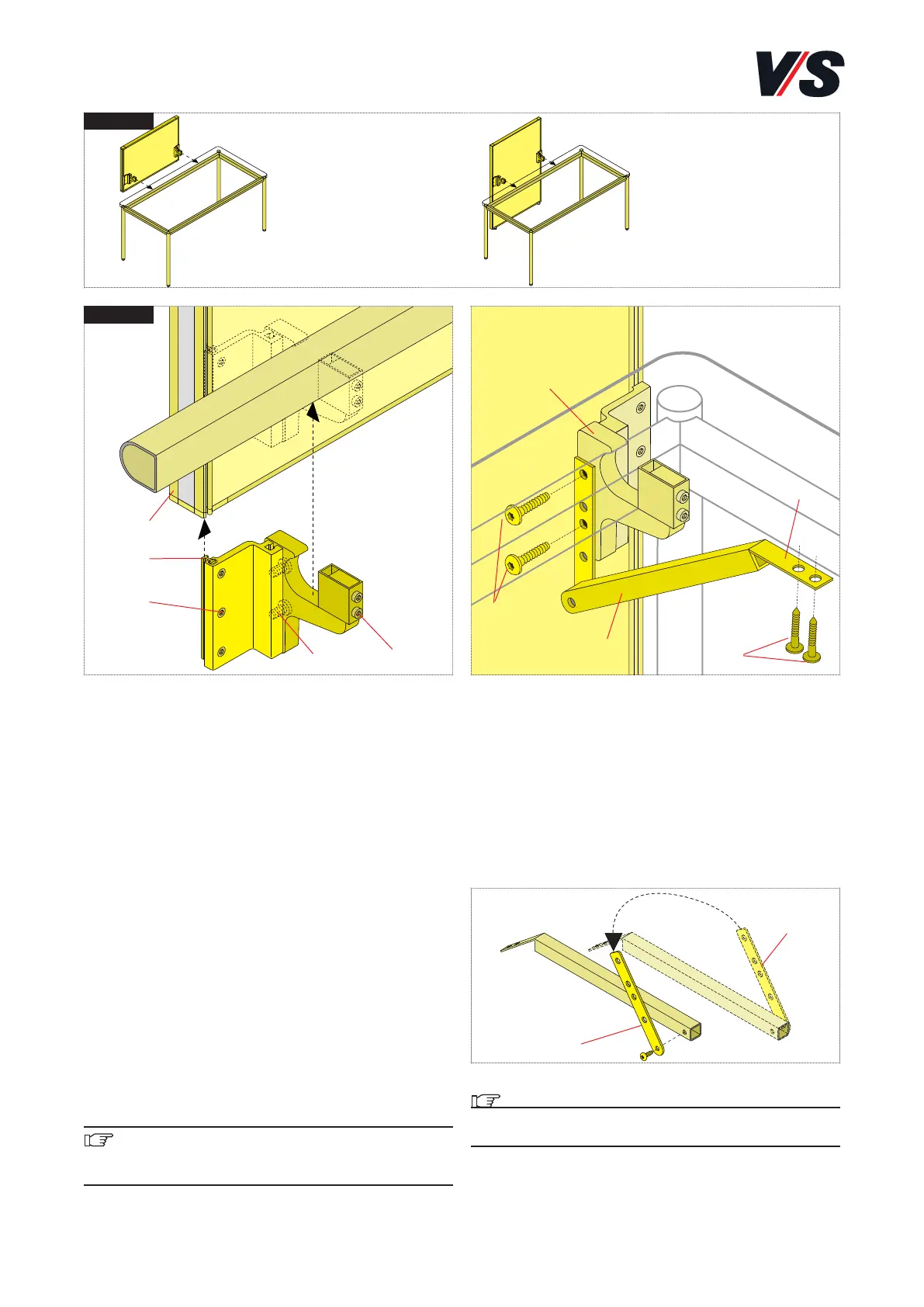

12. System connection NetWork.
Connecting screens/adaptable screen to NetWork. Screen
models 05900-05908, adaptable screen models 05910-
05923.
Slide the table connection with clamping block (1) on both
sides into the function groove in frame profile (7). Position
at the desired height. Tighten the 3 M5 x 12 mm screws (2)
on both sides in the clamping block. Engage the panel in
cross-tube (3). Position in a line and tighten with threaded
pin (4) (M5 x 16 mm) on both sides. Engage the complete
panel in table frame/function rail (3) from the bottom up-
wards. Position in a line and secure with threaded pin (4)
(M6 x 45 mm).
Alignment: The panel can be aligned horizontally to the ta-
ble top by gently releasing screws (2) in the clamping block.
The panel can be aligned at right angles to the table top by
releasing screws (5) (M8 x 16 mm).
Fine adjustment of the adaptable screen is performed by
means of the adjustable feet on the floor. The adjustable gli-
de elements can be turned by hand by gently raising the
adaptable screen. Approx. 10 mm height travel.
Important! The maximum load is:
Screens 20 kg
Adapatable screen 30 kg
Support of adaptable screen and counter system.
Use two M8x20 mm pan-head tapping screws (8) to con-
nect the supporting piece (7) to the clamping profile (9).
Adjust the lug (10) on the supporting piece and fix to the
table top from below using two M5x20 mm chipboard
screws (11).
The support piece is prepared as standard for use at the
right-hand corner of the table. If it is to be used at the left-
hand corner then the mounting (12) must be swapped over.
Important! Make sure that the adaptable screen and
counter system are vertically aligned!
(12)
(12)
