Wacker Neuson Dumper 6001 - Electric System 6001; Fuse Box

BA 5001-6001 US – Edition 1.2 * 6001b610.fm 6-5
Specifications
6.10 Electric system 6001
Fuse box
Electric system
Alternator 12 V 55 A
Starter 12 V 2.3 kW
Battery 12 V 100 Ah

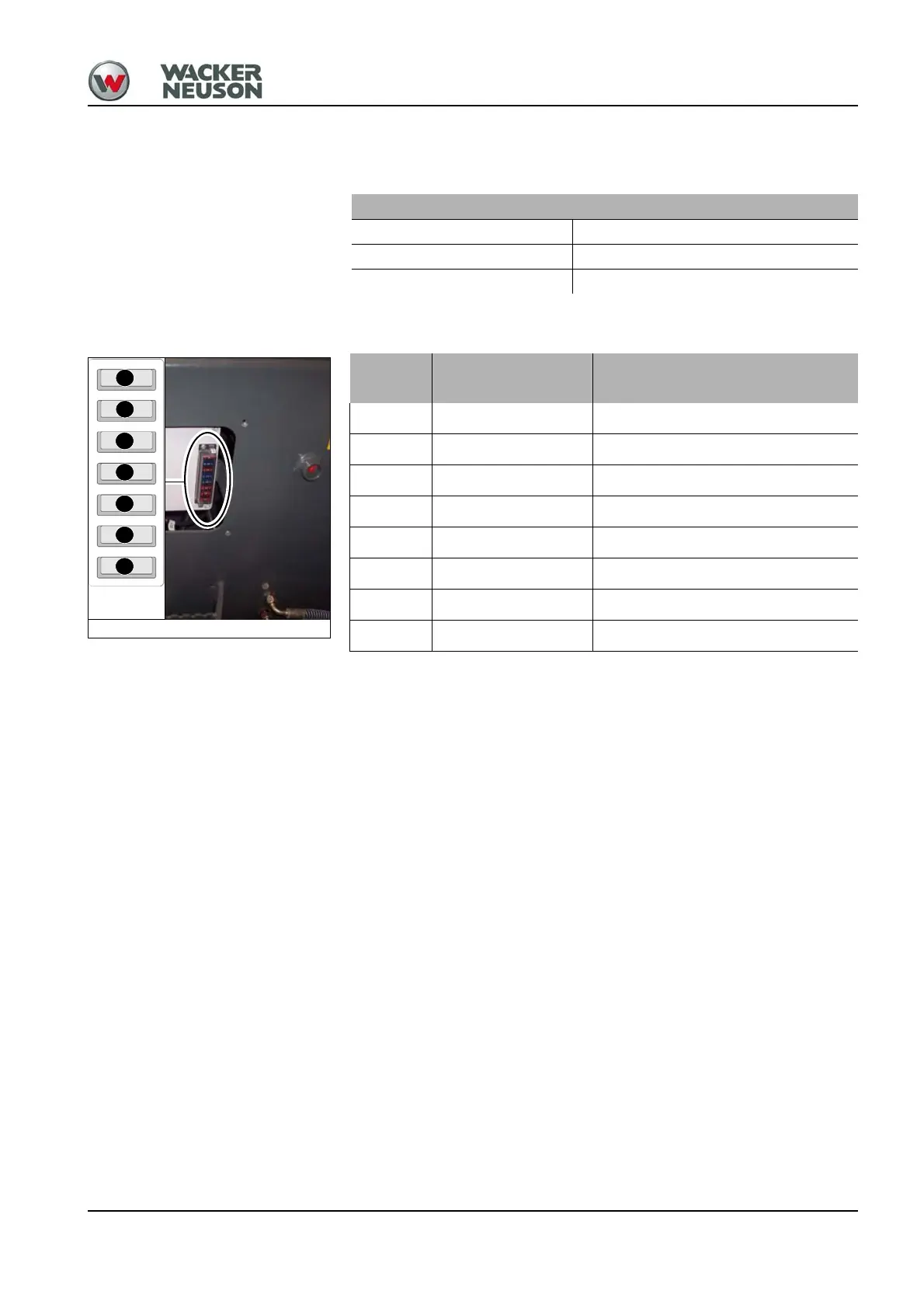

Fig. 94: Fuse box
F10
F9
F8
F7
F6
F5
F4
Fuse
Rated
current (A)
Protected circuit
F 4 10 A – Preheating
F 5 15 A – Drive solenoid valves
F 6 10 A – Horn, brake lights
F 7 15 A – Turn indicators
F 8 15 A – High beam
F 9 10 A – Low beam
F 10 10 A – Clearance light
F 11 10 A – Hazard warning system
