Maintenance
Replacing the filter
• Replace filter A as follows:
☞ Stop the engine.
☞ Remove the key and carry it with you.
☞ Let the engine cool down.
☞ Open the engine cover.
☞ Remove dirt and dust from the air filter and the area around the air filter.
☞ Fold both bow clips D on lower housing section E to the outside.
☞ Remove lower housing section E.
☞ Unscrew wing nut F.
☞ Carefully remove filter B with slightly turning movements.
☞ Make sure all dirt (dust) inside the air filter housing has been removed.
☞ Clean the parts with a clean lint-free cloth, do not use compressed air.
☞ Check the air filter cartridges for damage, only install intact filters.
☞ Carefully insert the new filter B in the air filter housing.
☞ Position lower housing section E (make sure it is properly seated).
☞ Close both bow clips D.

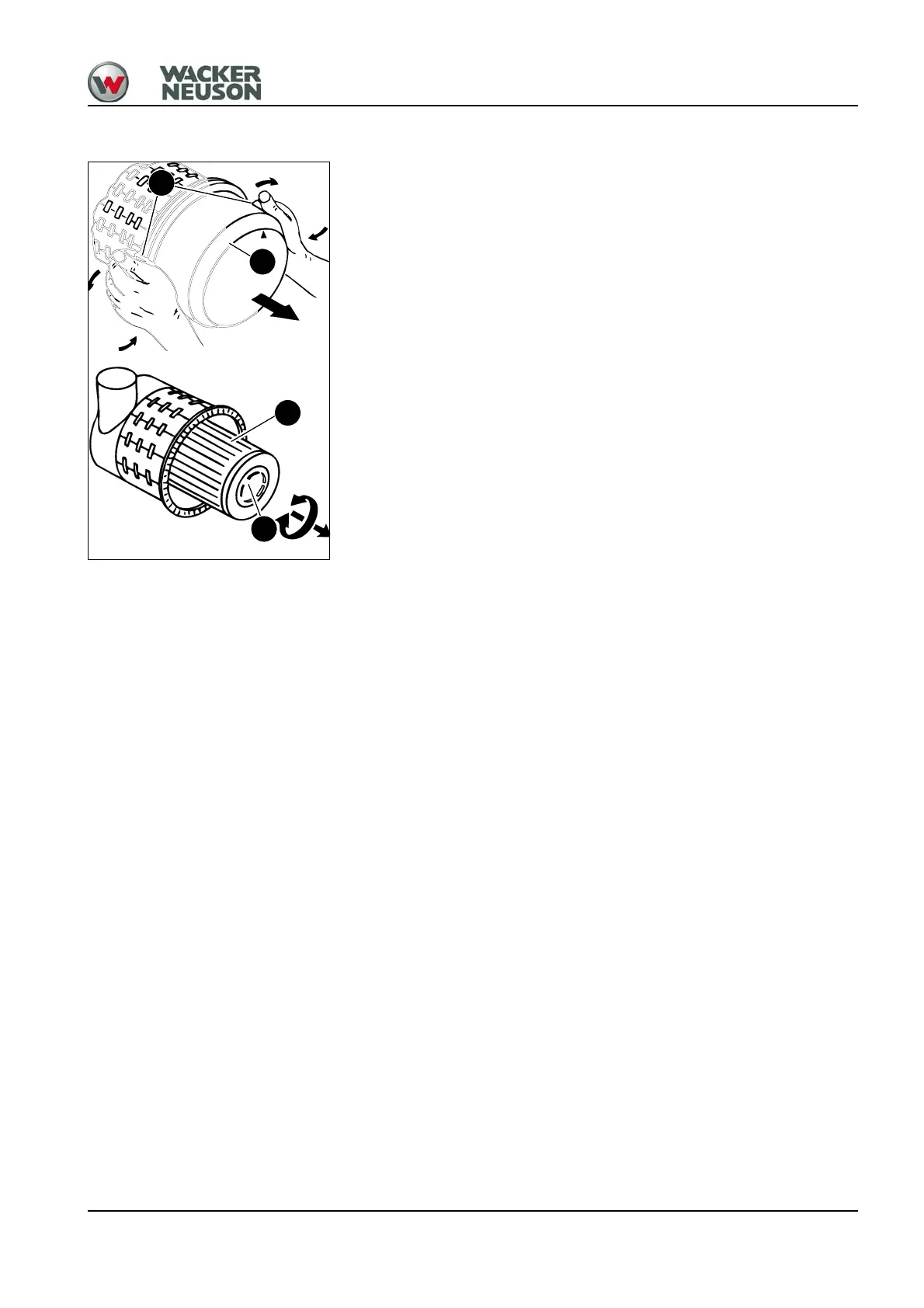

Fig. 80: Removing the lower housing section
Fig. 81: Removing the filter element
D
E
B
F
