Maintenance
Front dump bucket maintenance strut (6001)
WARNING
Crushing or striking hazard. An improperly supported dump bucket can fall
unexpectedly during maintenance work.
☞ Fold down the red maintenance strut before you perform maintenance work
with the dump bucket raised.
Procedure to follow:
☞ Raise the dump bucket.
☞ Remove split pin A out of lock pin B.
☞ Pull out lock pin B.
☞ Hold maintenance strut C as you do so.
☞ Fold down maintenance strut C.
WARNING
Personal injury hazard. Persons can be struck or crushed by a dump bucket
that is being lowered too quickly.
☞ To insert the retaining pin, slowly and carefully lower the dump bucket to
align the hole in the bracket with the hole in the maintenance strut.
☞ Lower the dump bucket until maintenance strut C fits into bracket D.
☞ Fasten maintenance strut C in bracket D with lock pin B.
☞ Insert split pin A in lock pin B.
Important
Fasten maintenance strut C on the dump bucket again (in the reverse order)
once maintenance work is over.

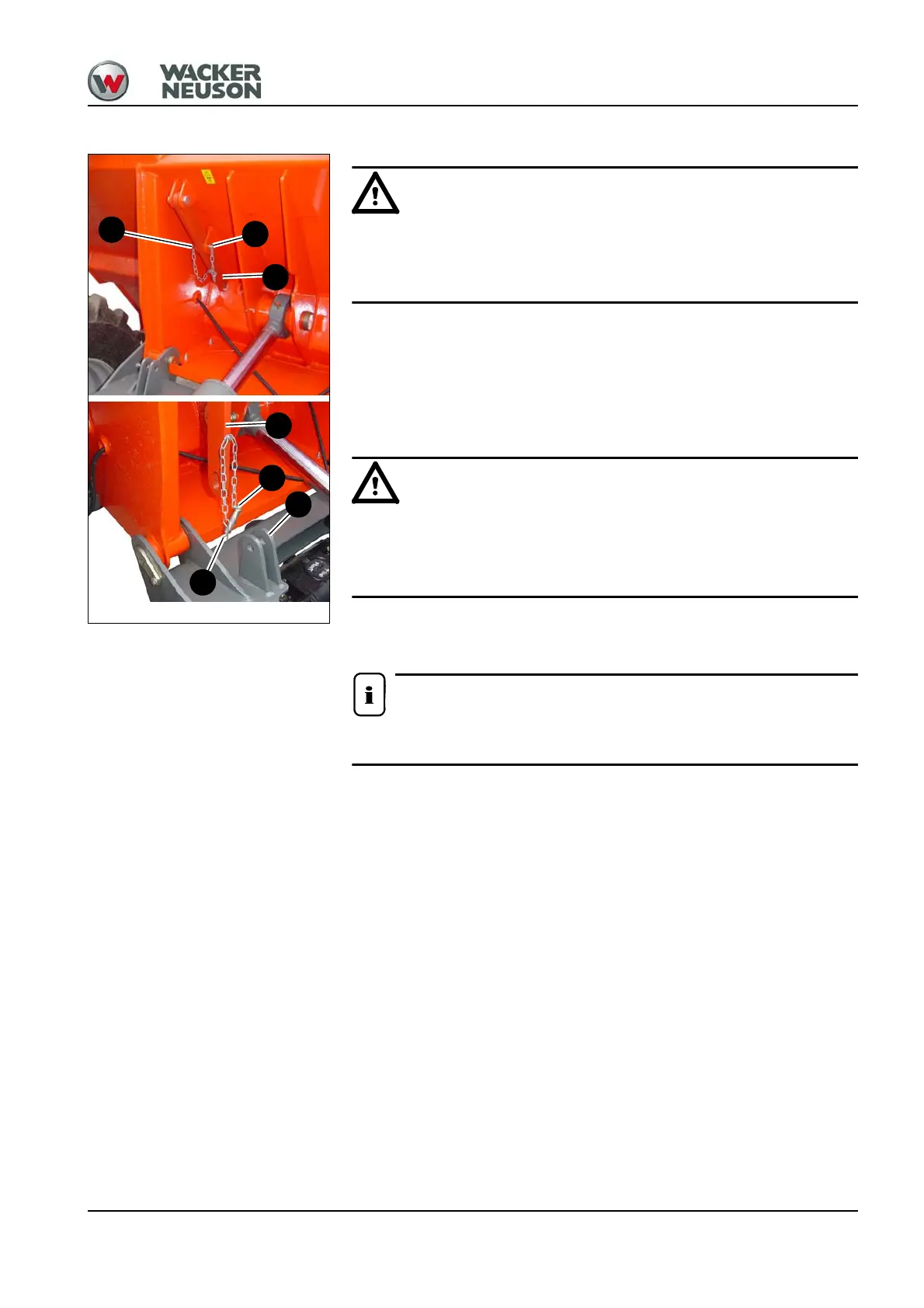

Fig. 71: Front dump bucket maintenance strut
