Wacker Neuson Dumper 6001 - Swivel dump bucket operation

BA 5001-6001 US – Edition 1.2 * 6001b330.fm 3-35
Operation
3.20 Swivel dump bucket operation
CAUTION
The working speed of the dump bucket is set with the bucket control lever and
the accelerator pedal.
Material that sticks in the dump bucket shall be dumped out only to the front in
the straight-ahead position of the dumper.
NOTICE: Lowering the dump body too rapidly and knocking it against the chassis
may cause machine damage
WARNING
Crushing hazard. Lowering the dump bucket rapidly may cause the machine to
tip over
☞ Do not lower the dump bucket rapidly.
Set the dump bucket to the required position before dumping out the dump bucket.
Swiveling the dump bucket:
Before swiveling the dump bucket, press the lever forward to raise it until lock cog T is
raised from lock recess K.
The dump bucket can then be swiveled.
The normal position of the dump bucket is the position in which the dump bucket is in
center position and in which lock cog T engages in lock recess K.
A
B
C
D
T
K
T
K

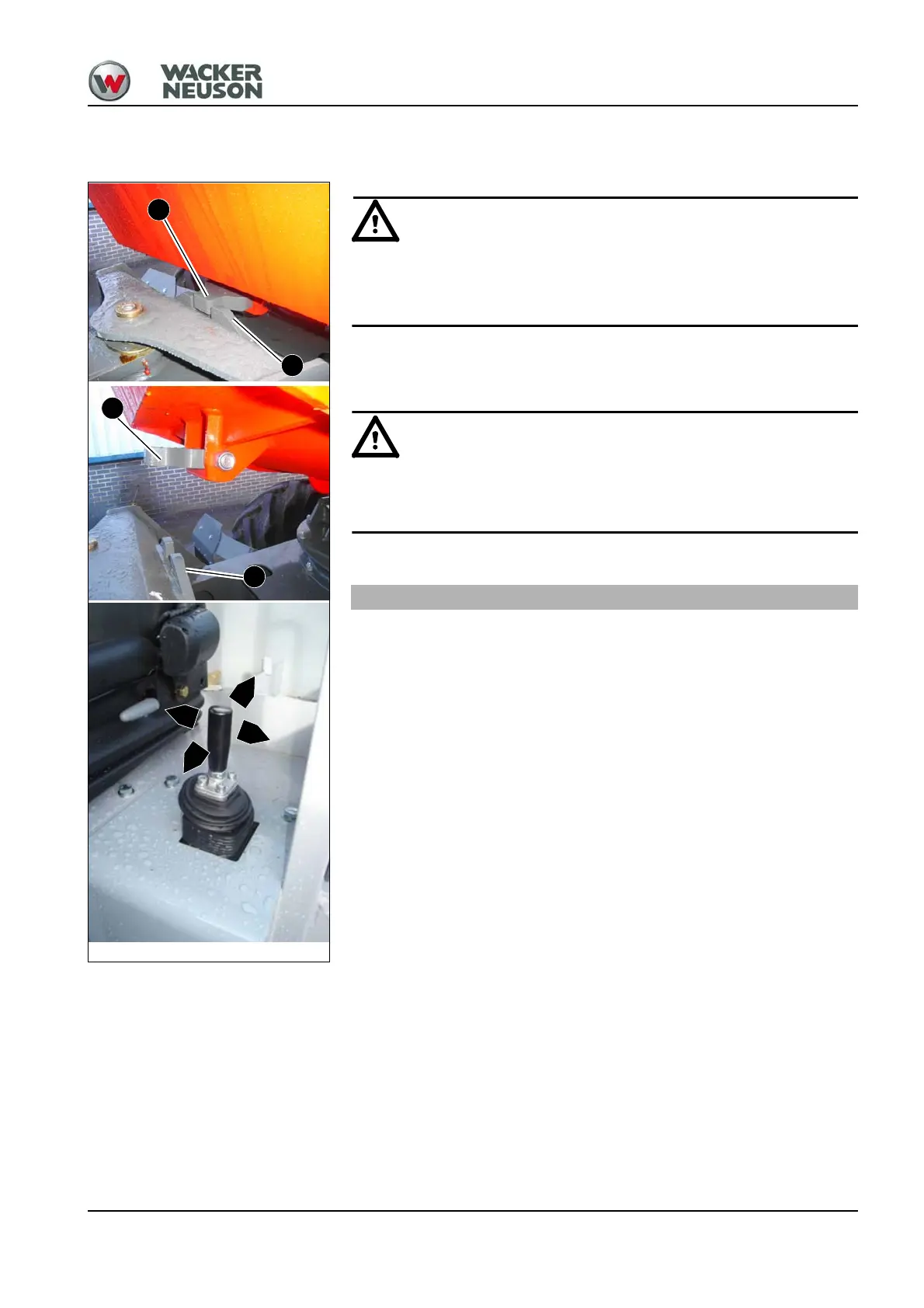

Fig. 58: Swivel dump bucket operation
Position Lever Function
A
☞ Lever forward ➥ Dumps out the dump bucket
B
☞ Lever pulled backward ➥ Lowers the dump bucket
C
☞ Lever to the left ➥ Dump bucket swivels to the left
D
☞ Lever to the right ➥Dump bucket swivels to the right
