Operation
Multifunctional lever
The horn, the turn indicators and high beam are actuated with lever 21 on the steering
wheel.
Interior light (cab option)
Rotating beacon (option)
The rotating beacon (option) is switched on automatically as soon as ignition is switched
on.
Important
Observe the legal regulations of your country for operating the rotating
beacon.
R
F
Z

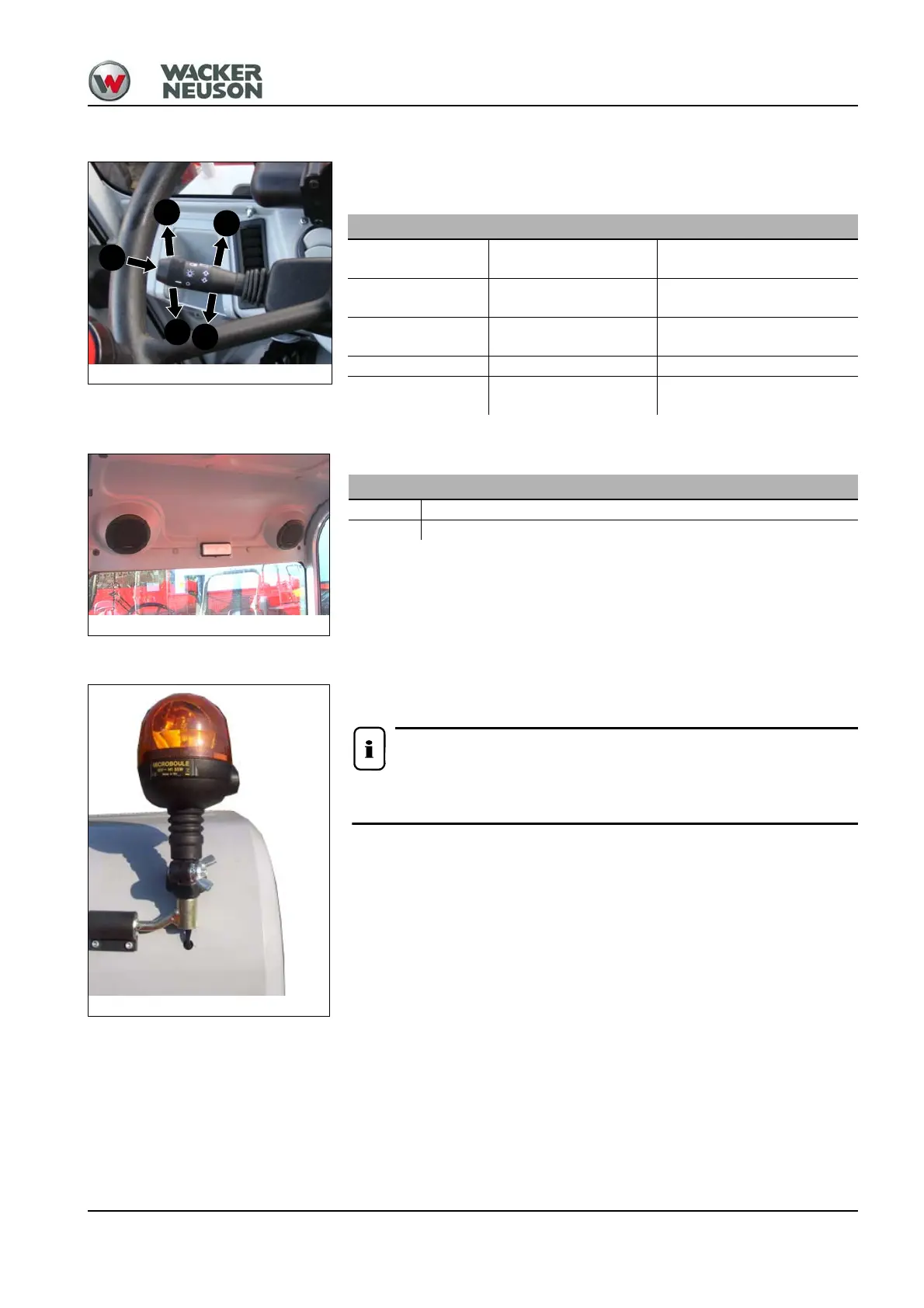

Fig. 46: Multifunctional lever
A
B
Light switch
Turn indicators (left)
☞ Pull lever 21 backward Z ➥ Left-hand side turn indicators
flash
Turn indicators
(right)
☞ Push lever 21 forward F ➥ Right-hand side turn indicators
flash
Headlight flasher
☞ Pull lever 21 upward A ➥ High beam is ON as long as
the lever is pulled upward
High beam (ON) ☞ Push lever 21 down B ➥ High beam (ON)
Horn
☞ Push lever 21 toward the
steering column E
➥ The horn sounds
Fig. 47: Interior light
Interior light
ON ☞Press switch to the left or right
OFF ☞ Move switch to center position
Fig. 48: Rotating beacon
