Specifications
Relays
The relays are located in the relay box under the the floor panel of the control stand
K 10
K 29
K 31
K 33
K 32
K 35

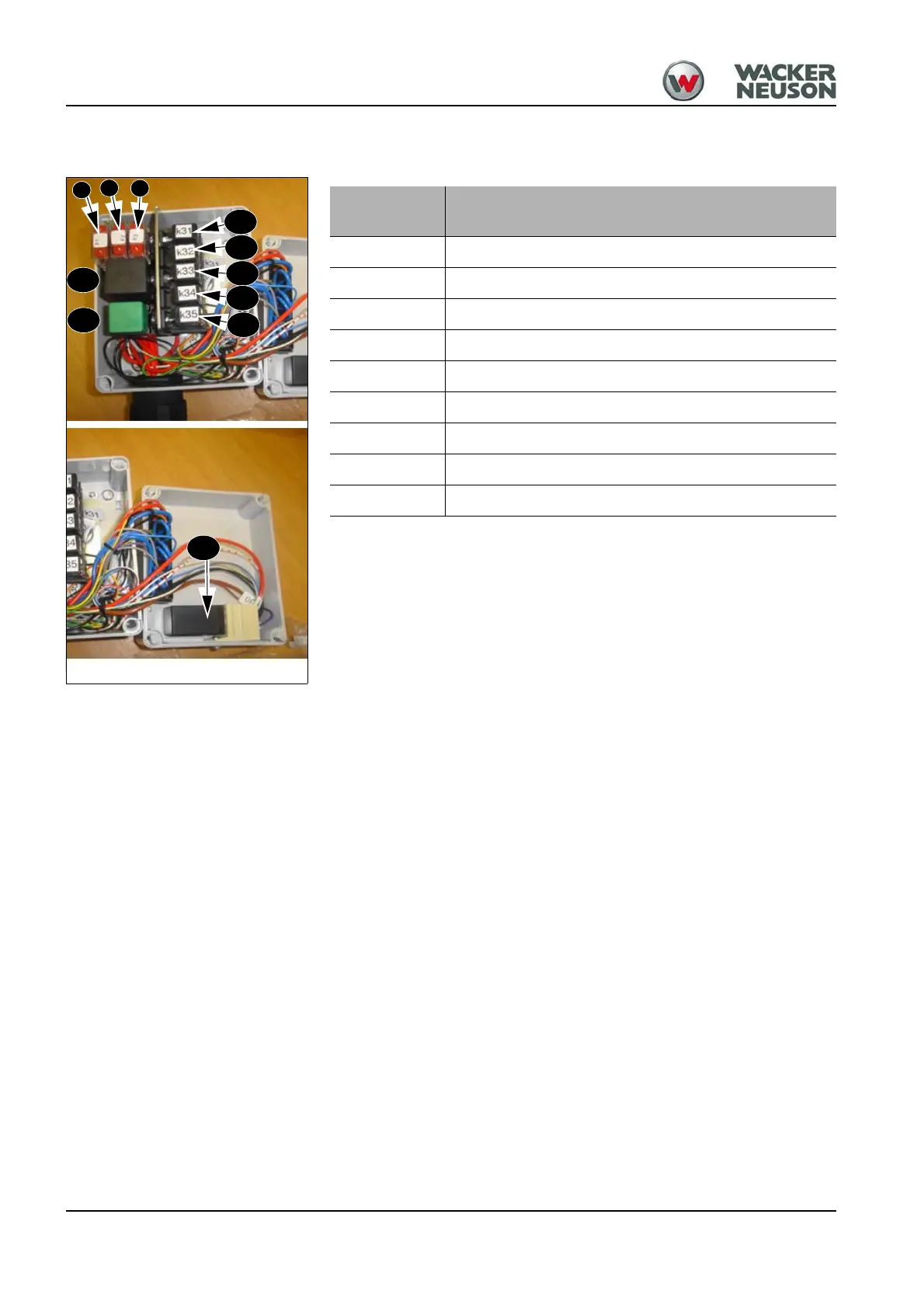

Fig. 95: Relays
K 30
F2
F1
F3
K 34
Switching relay
no.
Protected circuit
F 1, F2, F3 – Main fuses (50 A)
K 10 – Turn indicator relay
K 29 – Preheating relay
K 30 – Deutz preheating time relay
K 31 – Low beam relay
K 32 – Preheating indicator relay
K 33 – High beam relay
K 34 – Parking brake indicator relay
K 35 – Start interlock relay
