3-36 BA 5001-6001 US – Edition 1.2 * 6001b330.fm
Operation
3.21 Rollbar
CAUTION
Personal injury hazard. The rollbar is very heavy and should not be raised or
lowered by one person.
☞ Two persons are required for raising or lowering the rollbar.
Important
Fasten the seat belt only if the rollbar is raised.
Raising the rollbar:
☞ Place the machine on level ground.
☞ Raise the rollbar with the help of a second person.
☞ Secure the rollbar with lock pins A.
☞ Secure lock pins A with split pins B.
☞ Fold down ring C.
➥ Split pin B cannot fall out.
Lowering the rollbar:
☞ Place the machine on level ground.
☞ Fold up ring C.
☞ Remove split pins B from lock pins A.
☞ Remove lock pins A.
☞ Slowly and carefully lower the rollbar with the help of a second person.

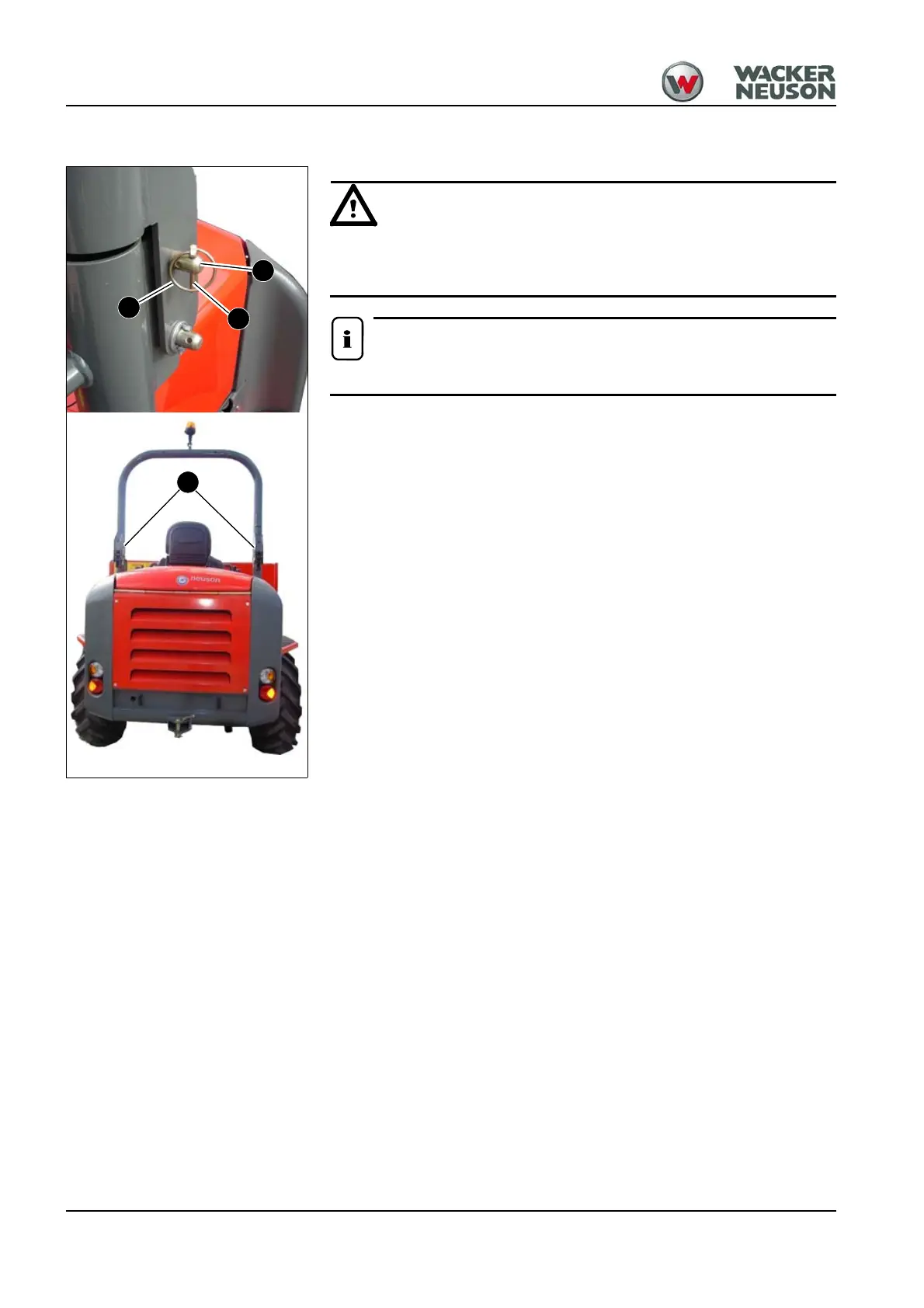

Fig. 59: Rollbar
A
A
B
C
