Operation
3.23 Articulated steering locking bar
WARNING
Personal injury hazard. An unlocked articulated joint may cause unexpected
machine movement while the machine is being lifted.
☞ Secure the steering ram with the articulated steering locking bar when
lifting the machine by the lift points.
The articulated steering locking bar secures the steering ram to prevent steering
movements (via the articulated joint) when lifting the dumper.
Procedure to follow:
☞ Remove the spring plug from pin B.
☞ Rotate articulated steering locking bar A toward rear chassis C.
☞ Secure articulated steering locking bar A with the spring plug on pin B.
Important
Before putting the machine into operation again, mount the articulated steering
locking bar back onto the front chassis again by means of pin B.
3.24 Locking the control lever (5001)
CAUTION
Personal injury hazard. An unlocked control lever may cause unintentional
actuation of the dump bucket.
☞ Lock the control lever for the dump bucket while traveling.
Lock as follows:
☞ Remove split pin A from lock B.
☞ Fold lock B to the front.
☞ Insert split pin A in lock B.
Unlock in the reverse order!
A
C
B
A
C

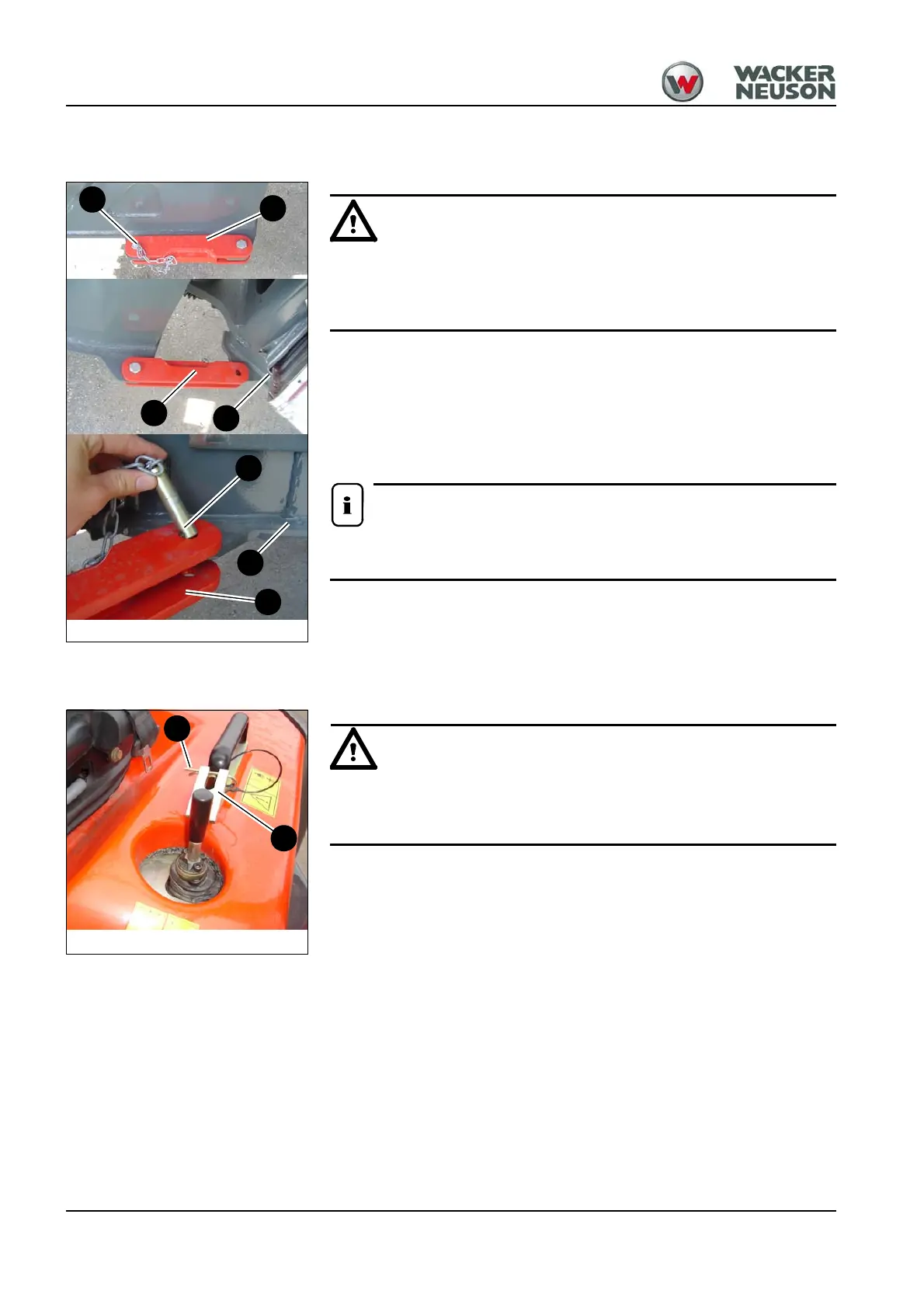

Fig. 61: Articulated steering locking bar
A
B
Fig. 62: Locking the control lever
A
B
