Introduction
Description
Hydraulic oil filler inlet. Use only specified hydraulic fluid.
– see chapter Filling up hydraulic oil on page 5-21
Location
On the filler inlet of the hydraulic oil tank
Description
Rotate the dump bucket support bracket from the stored position to the locked position,
supporting the dump bucket before entering the area under the dump bucket to perform an
inspection, maintenance, or repair to the machine.
Location
Near the maintenance strut
Description
Dump bucket control mode: dump and lower
Location
On the engine cover by the hand control
Description
Control identification for swiveling the dump bucket as viewed from the operator seat.
Location (5001, 6001S)
On the engine cover
Description
1:Attention! Remove starter key and read the Service Manual before servicing the
machine.
2:Hot surface! Do not touch. Keep a safe distance from the machine.
3:Cutting hazard. Cooling fan can cut when rotating. Stop engine before working on the
engine or cooling system.
4:Crushing hazard. Before performing maintenance work, let the safety strut lock into
place under the engine cover.
Location
On the engine cover
Description
Always fasten the lap belt if the rollbar is raised!
Do not use the seat belt when the ROPS bar is lowered to the stored position.
Location
On the engine cover

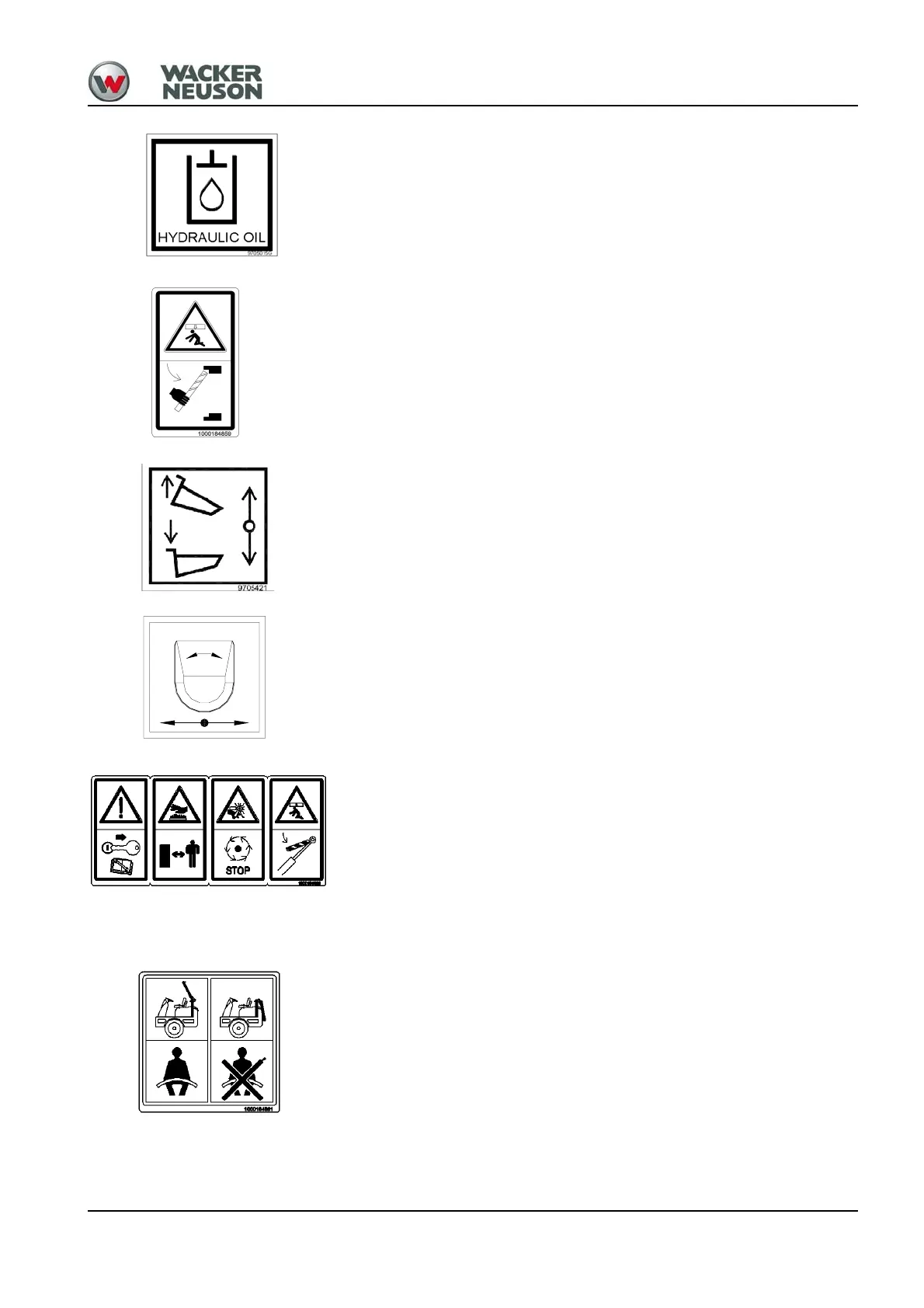

Fig. 17: Hydraulic oil label
Fig. 18: Label: maintenance strut
Fig. 19: Dump bucket control mode
Fig. 20: Swiveling the dump bucket
Fi
. 21: Label: caution
Fig. 22: Seat belt application
