Operation
3
4
5
6
10
15
9
2
1
7
8

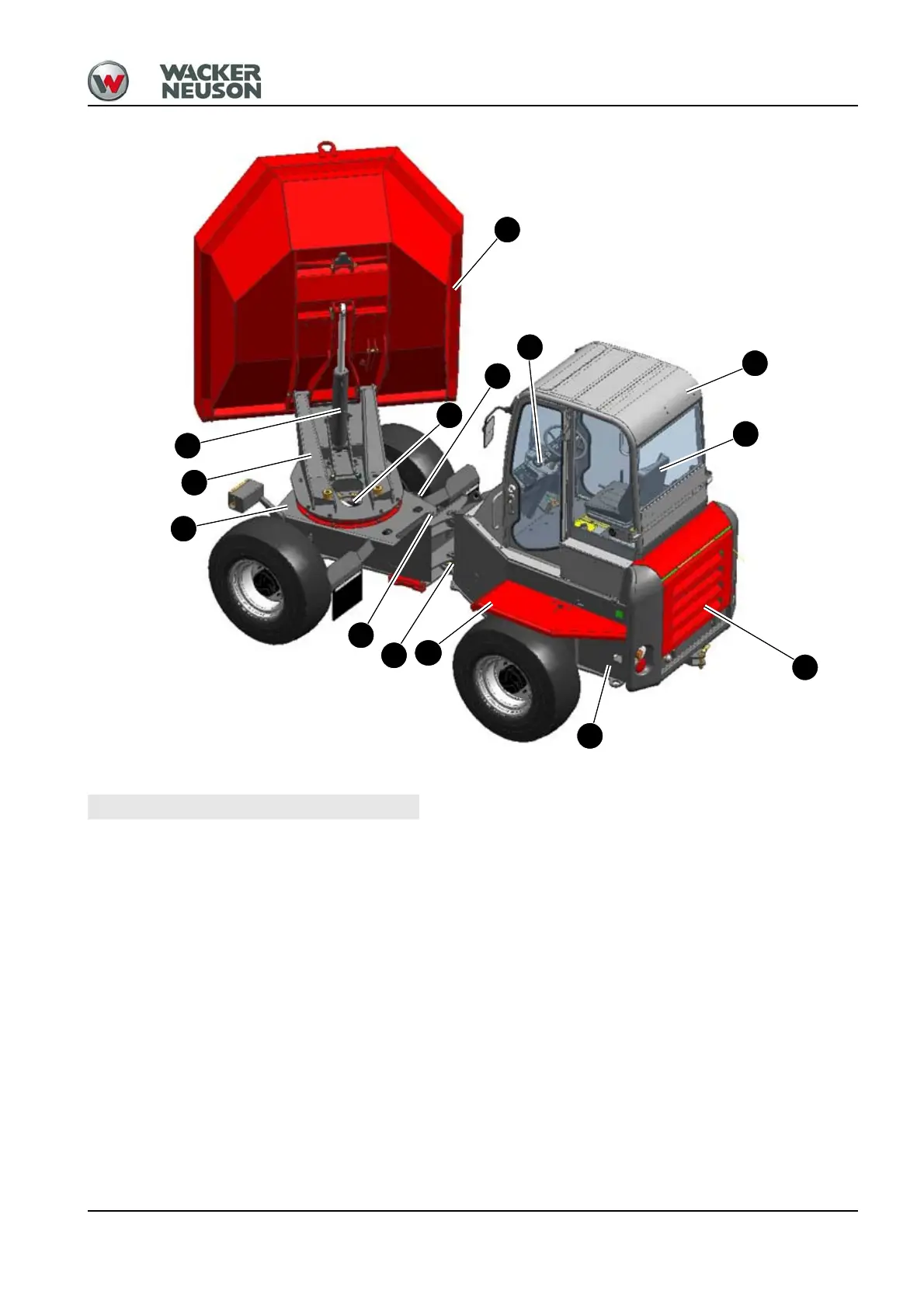

Model 6001 with cab (option)
12
14
13
Pos.
Description
1 Rear chassis
2 Front chassis
3Tilt ram
4 Articulated joint
5 Operator seat
6 Control stand
7 Mudguard
8 Engine cover
9Steering ram
10 Dump bucket
11 Rollbar (machines without cab)
12 Swiveling console (option)
13 Slewing ram (option)
14 Slewing center position (option)
15 Cab (option)
