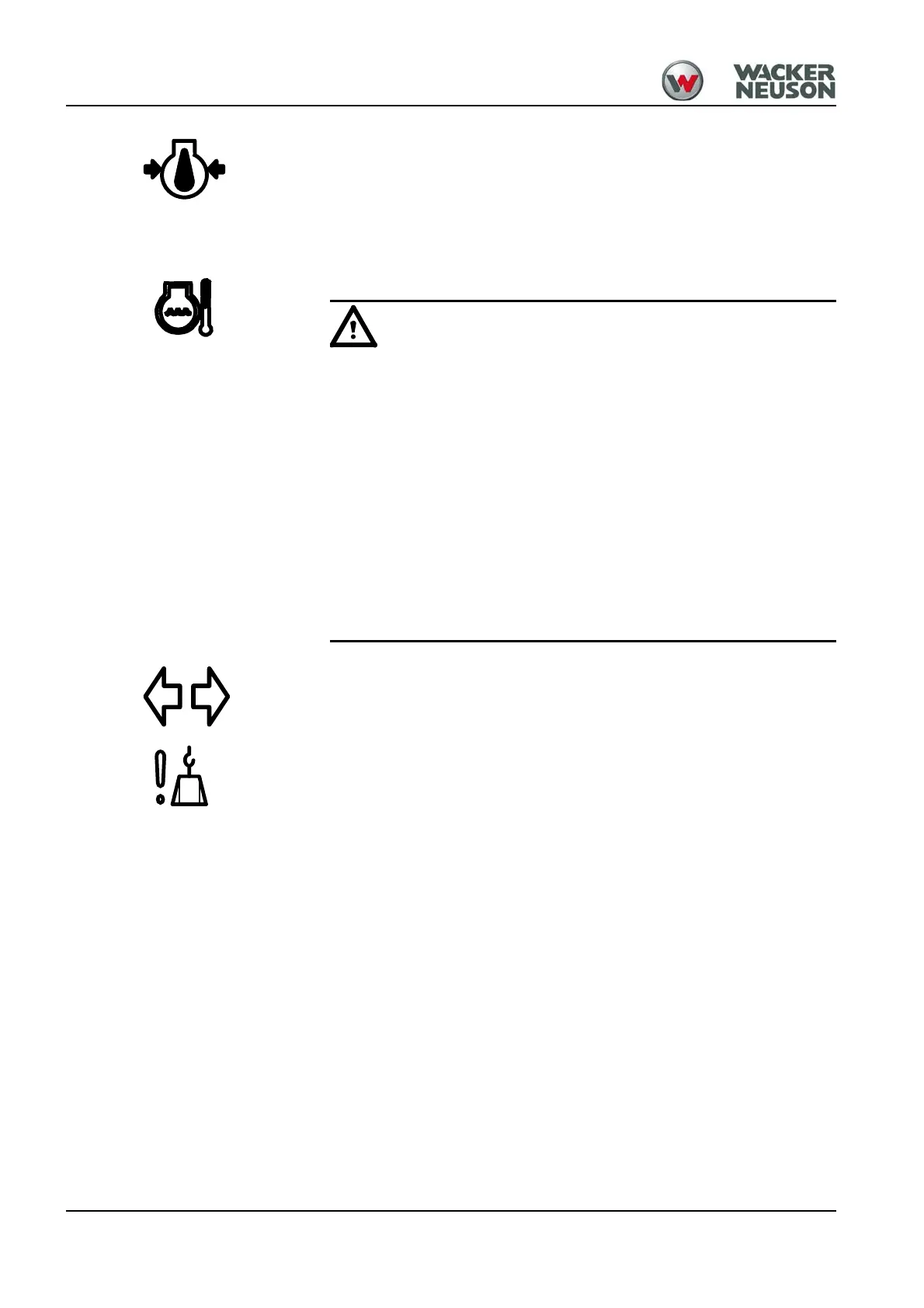

Operation
8 Engine oil pressure indicator (red)
Comes on if the engine oil pressure is too low. In this case:
☞ Stop the machine.
☞ Stop the engine immediately and check the oil level.
The indicator comes on when the ignition is turned on and goes out as soon as the engine
runs.
9
Coolant temperature indicator (red)
WARNING
Burn hazard. The engine coolant is under pressure at high temperature.
Failure to observe specific instructions to check the coolant level in the radiator
of the cooling system may cause serious injury from burns or pressure spray of
the coolant.
☞ Do not attempt to remove the radiator filler cap or drain the radiator coolant
until the coolant temperature is less than 43°C (110°F).
☞ Stop the engine and wait at least 10 minutes or until the cap is comfortable
to the touch before attempting removal.
☞ Wear protective gloves and eye protection.
☞ After determining the temperature is low enough to avoid burns, slowly turn
the cap counterclockwise to the first notch stopping cap rotation. Wait to
confirm that any pressure has been relieved. Depress the cap and continue
to rotate the cap in a counterclockwise motion until the cap is free and can
be removed.
10 Turn indicator (green)
Flashes if the turn indicators are switched on
20 Not assigned
