BA 5001-6001 US – Edition 1.2 * 6001b330.fm 3-43
Operation
6001
The battery master switch is located under the engine cover. The battery master switch is
located behind the right-hand side maintenance flap on machines equipped with an
optional cab.
Important
Do not disconnect the battery while the engine is running.
Important
Power supply is interrupted directly after the battery, by means of a key.
• Disconnect the battery before working on the electric system.
Interrupting power supply:
☞ Turn key A of the battery master switch to position B and remove it.
Switching on power supply:
☞ Insert key A in the battery master switch.
☞ Turn the key down to the notched position C.

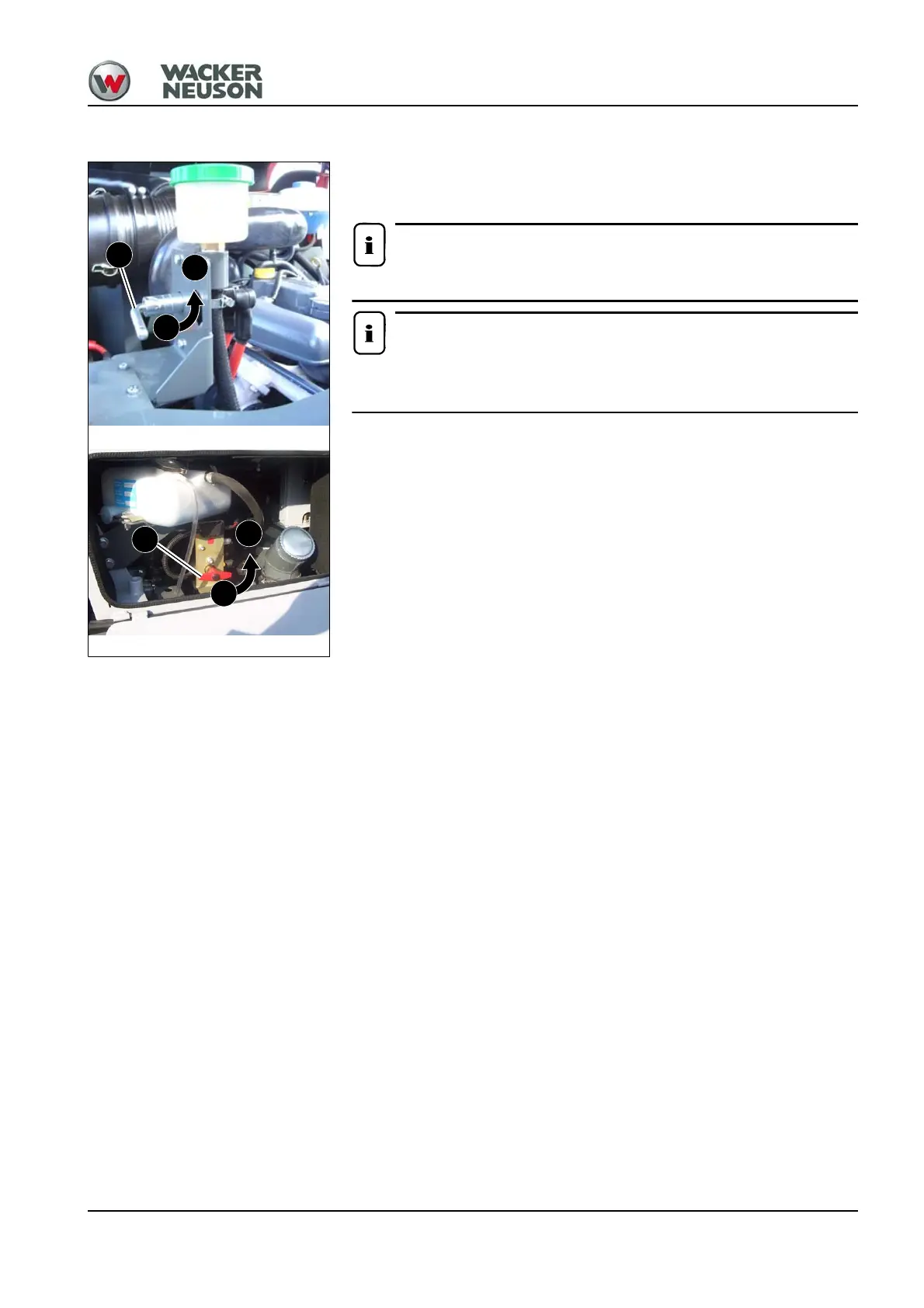

Fig. 68: Battery master switch (6001 with cab)
A
C
B
A
C
B
Fig. 68: Battery master switch (6001)
