Wacker Neuson WM 170

WM 130/170/270 Repair Clearance Data and Limits Table
wc_tx000385gb.fm 97

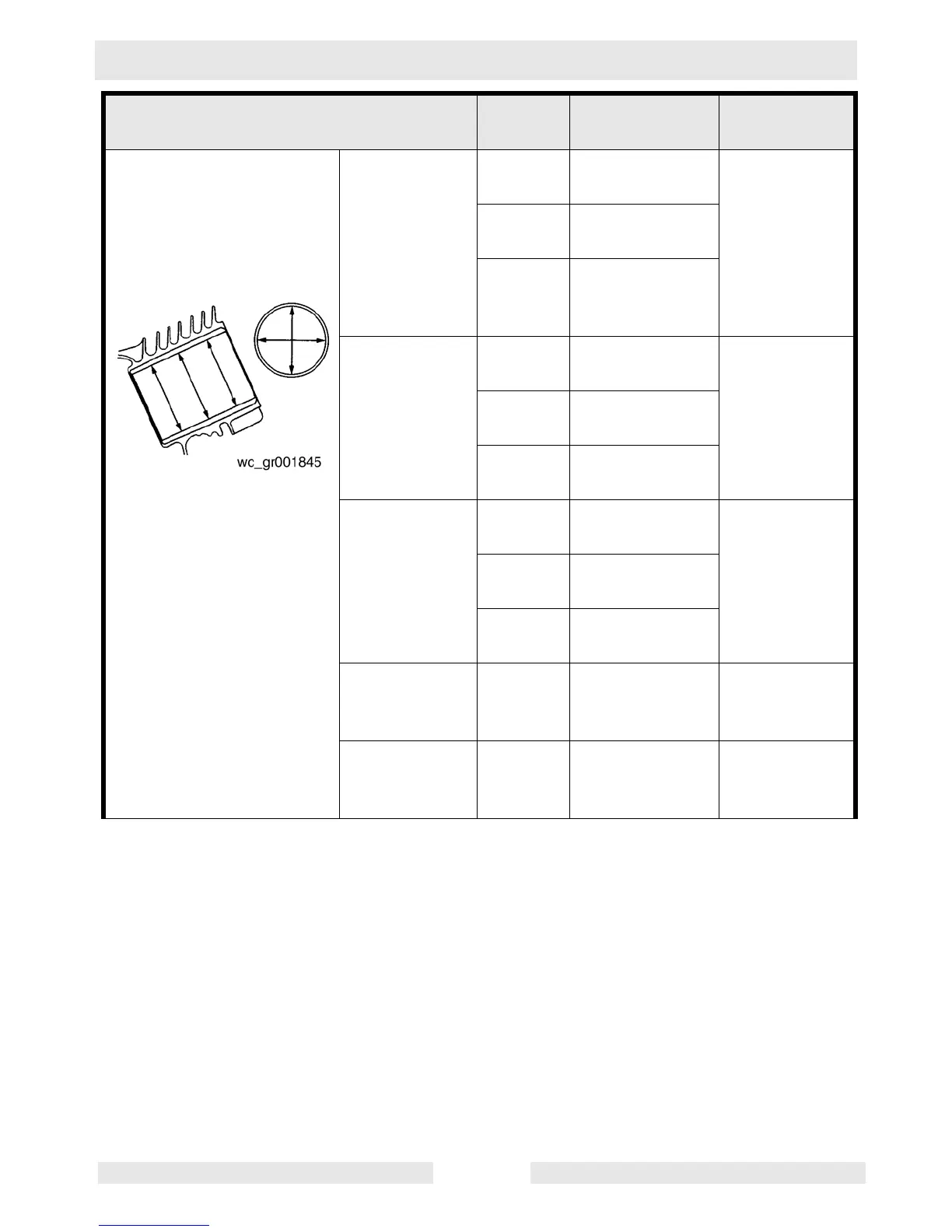

Cylinder
Inner diame-
ter Standard
WM 130
58.000–58.019
(2.2835–2.2842)
To be rebored
when the dif-
ference
between max.
and min.
diameter
reaches 0.1
(0.004).
WM 170
67.000–67.019
(2.6378–2.6385)
WM 270
75.000–75.019
(2.9528–2.9535)
First reboring
WM 130
58.250–58.269
(2.2933–2.2842)
Same as
above
WM 170
67.250–67.269
(2.6476–2.6484)
WM 270
75.250–75.269
(2.9626–2.9633)
Second
reboring
WM 130
58.500–58.519
(2.3031–23039)
Same as
above
WM 170
67.500–67.519
(2.6575–2.6582)
WM 270
67.500–67.519
(2.6575–2.6582)
Roundness after reboring WM 130
WM 170
WM 270
Less than 0.01
(0.0004)
Cylindricity after reboring WM 130
WM 170
WM 270
Less than
0.015
(0.0006)
Item Model Standard
mm (in.)
Limit
mm (in.)
