WM 130/170/270 Repair Disassembly Procedures
wc_tx000379gb.fm 51
8.13 Removing Crankshaft and Oil Sensor

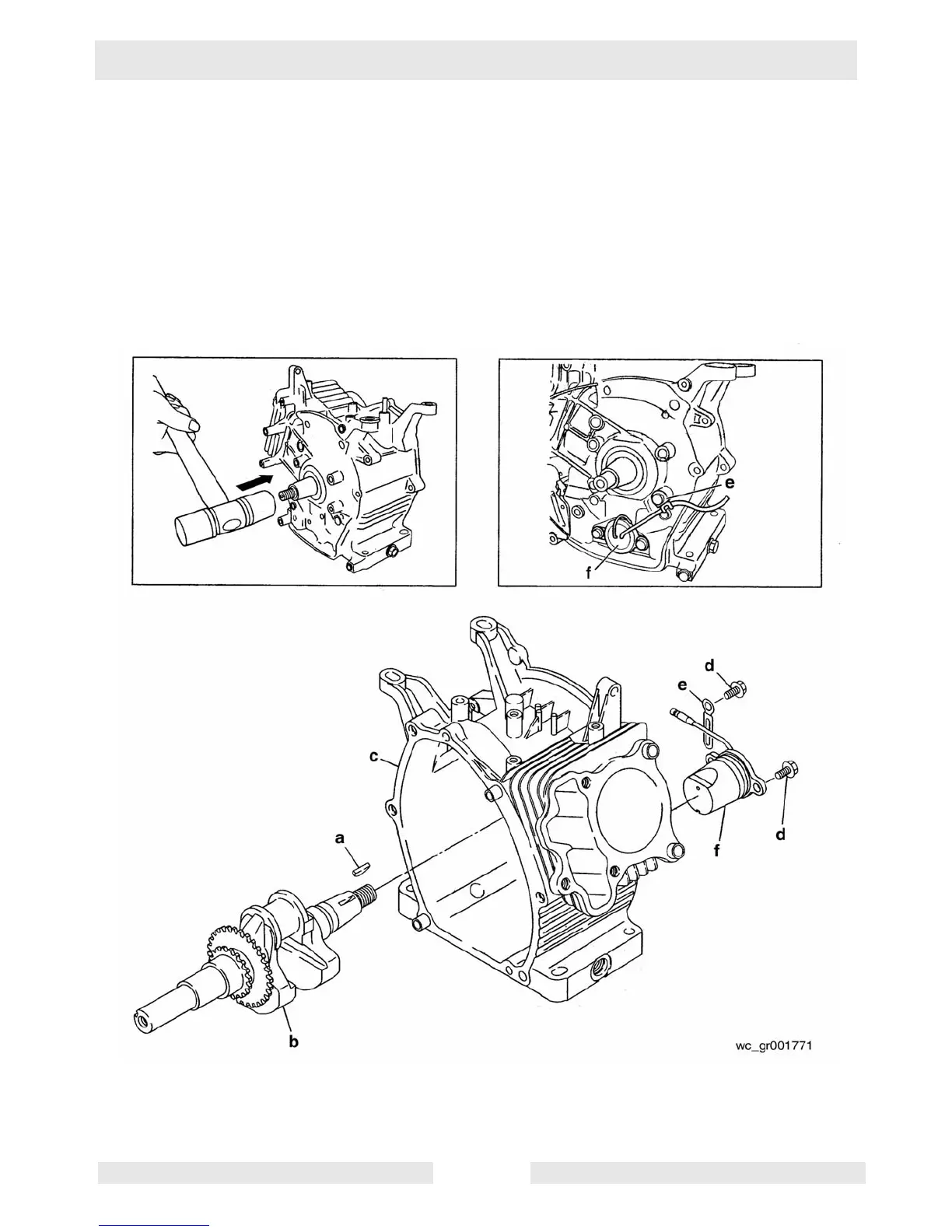

See Graphic: wc_gr001771
8.13.1 Remove Woodruff key (a).
8.13.2 Taking care not to damage the oil seal, remove the crankshaft (b) from
the crankcase (c) by tapping its magneto-side end with a rubber mallet.
8.13.3 Remove the screws (d) securing the sensor clamp (e) and then the oil
sensor (f).
