WM 130/170/270 Repair Sub Systems
wc_tx000382gb.fm 89
10.8 Other Starter Checks

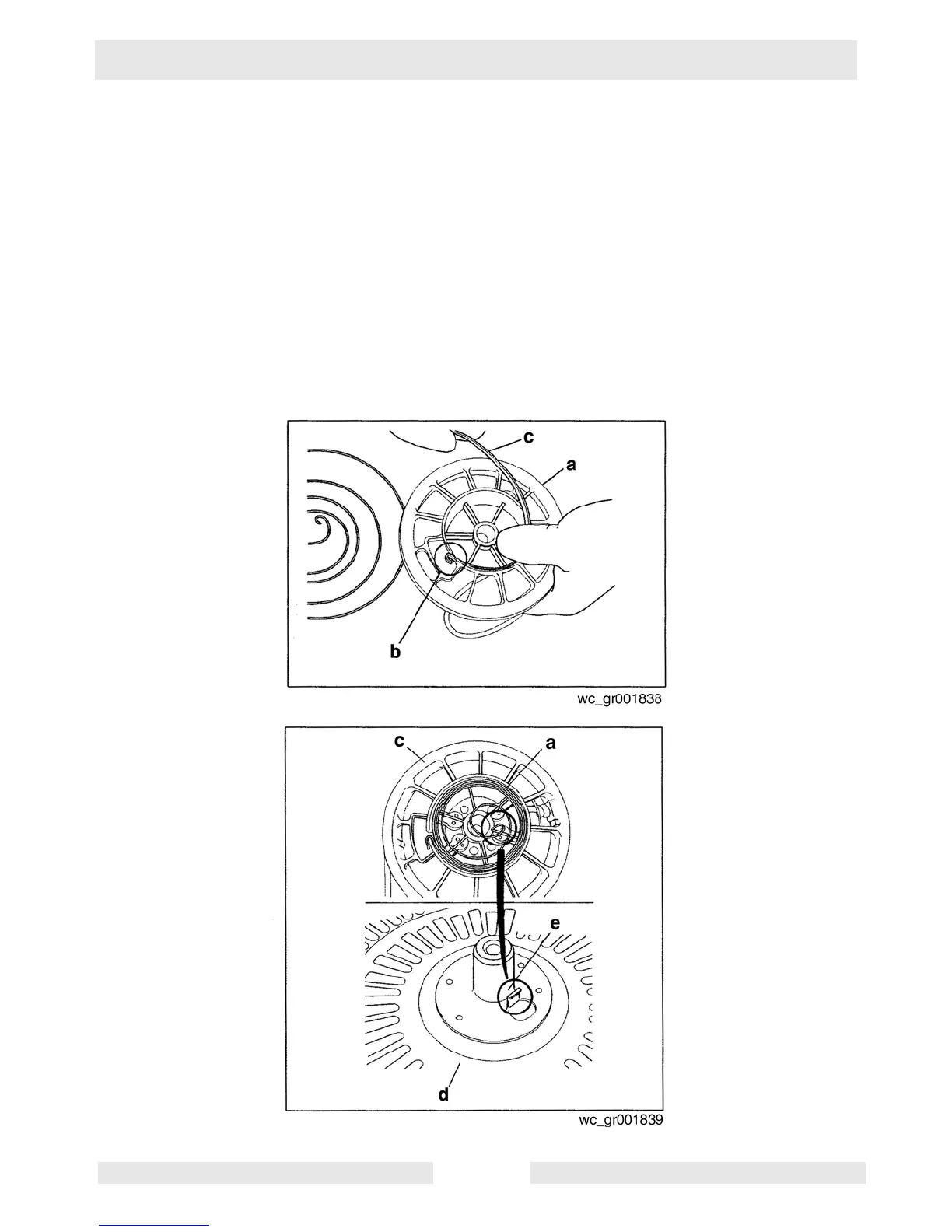

See Graphic: wc_gr001838 and wc_gr001839
10.8.1 If the spring escapes from the reel (a) during assembly:
• Hook the outer end of the spring (b) onto the gap in the reel and
rewind the spring, holding the spring (c) with your fingers to prevent it
from spinning out of the housing unit.
• Hook the inner end of the spring onto the projection on the starter
case (d).
Refer to the assembly procedure for more details.
10.8.2 Lubricate the rotating parts and the spring with grease (e) when the
starter is disassembled and prior to long-term storage.
