WM 130/170/270 Repair
Reassembly Procedures
wc_tx000379gb.fm
73
9.26

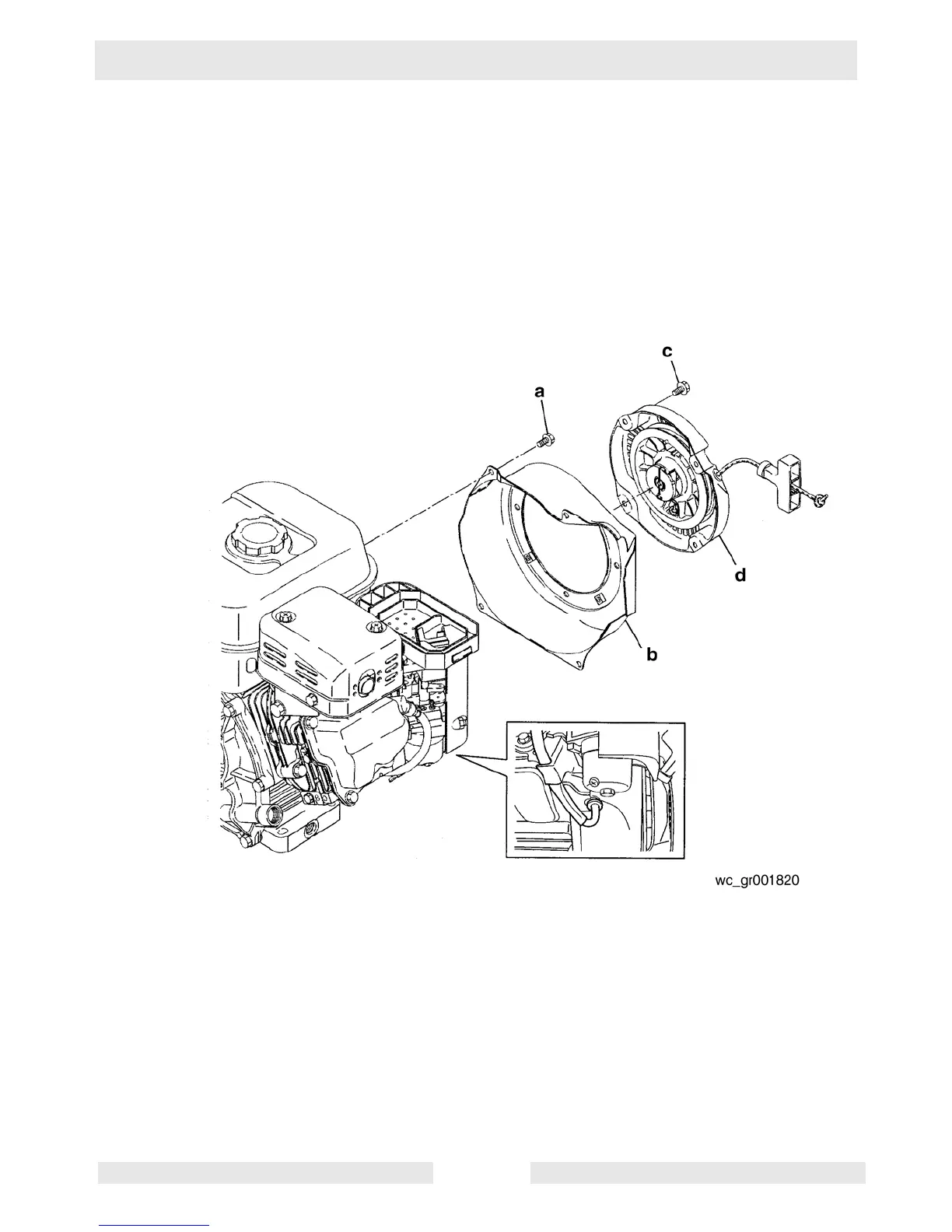

Blower Housing and Recoil Starter
See Graphic: wc_gr001820
9.26.1
Mount the ignition coil cord on
the crankcase by aligning it with the
case baffle.
9.26.2
Using four M6 x 12 bolts
(a)
, mount the blower housing
(b)
to the
engine.
9.26.3
Using four M6 x 8 bolts
(c)
, mount the recoil starter
(d)
to the engine.
76
78
