Reassembly Procedures
WM 130/170/270 Repair
wc_tx000379gb.fm
66
9.17
Case Baffle

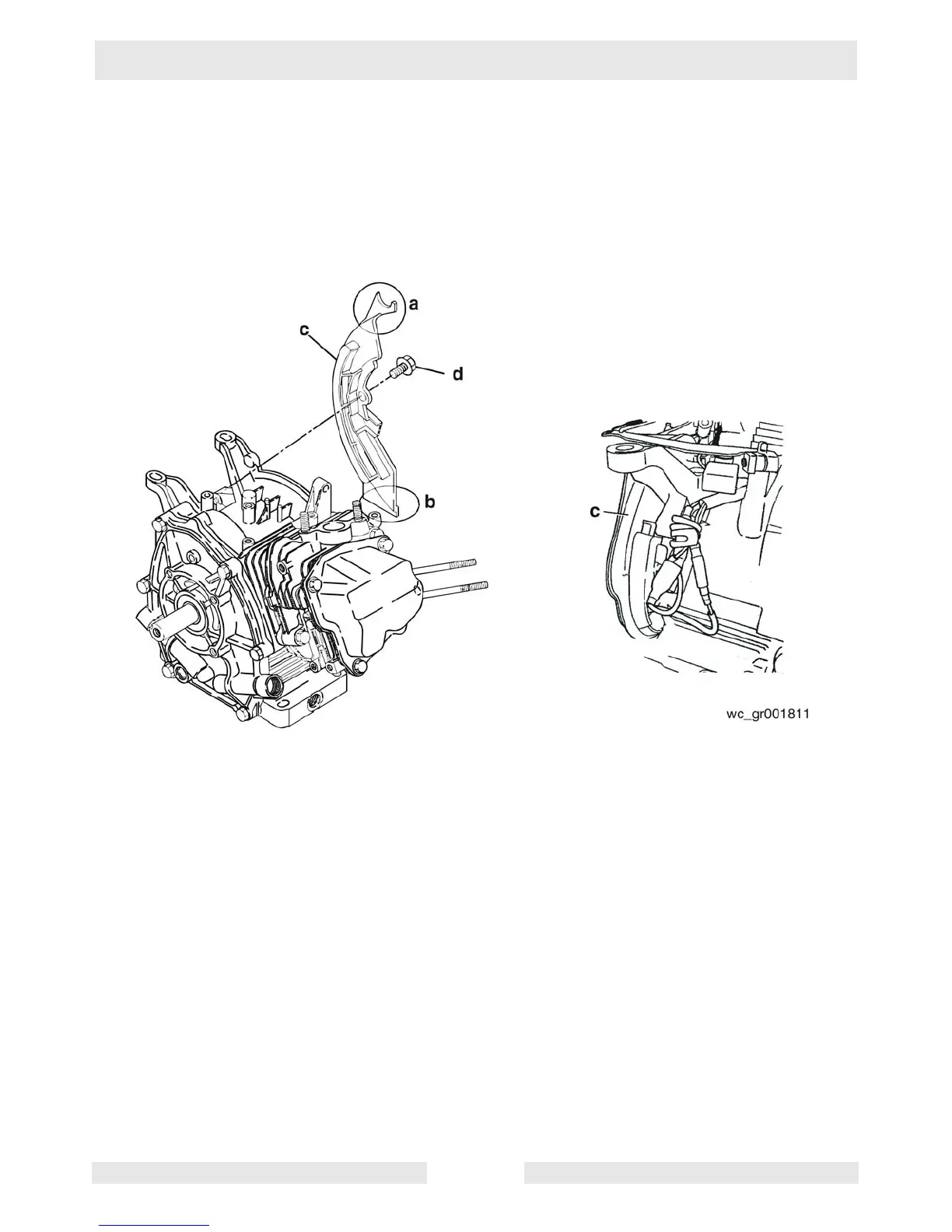

See Graphic: wc_gr001811
9.17.1
Align the top
(a)
and bottom
(b)
of the baffle
(c)
with the crankcase and
using the M6 (WM 130/170)
or the M8 (WM 270) bolt
(d)
secure the
case baffle to the crankcase.
