WM 130/170/270 Repair
Reassembly Procedures
wc_tx000379gb.fm
61
9.11
Mounting th
e Camsha
ft on the Cylinder Head

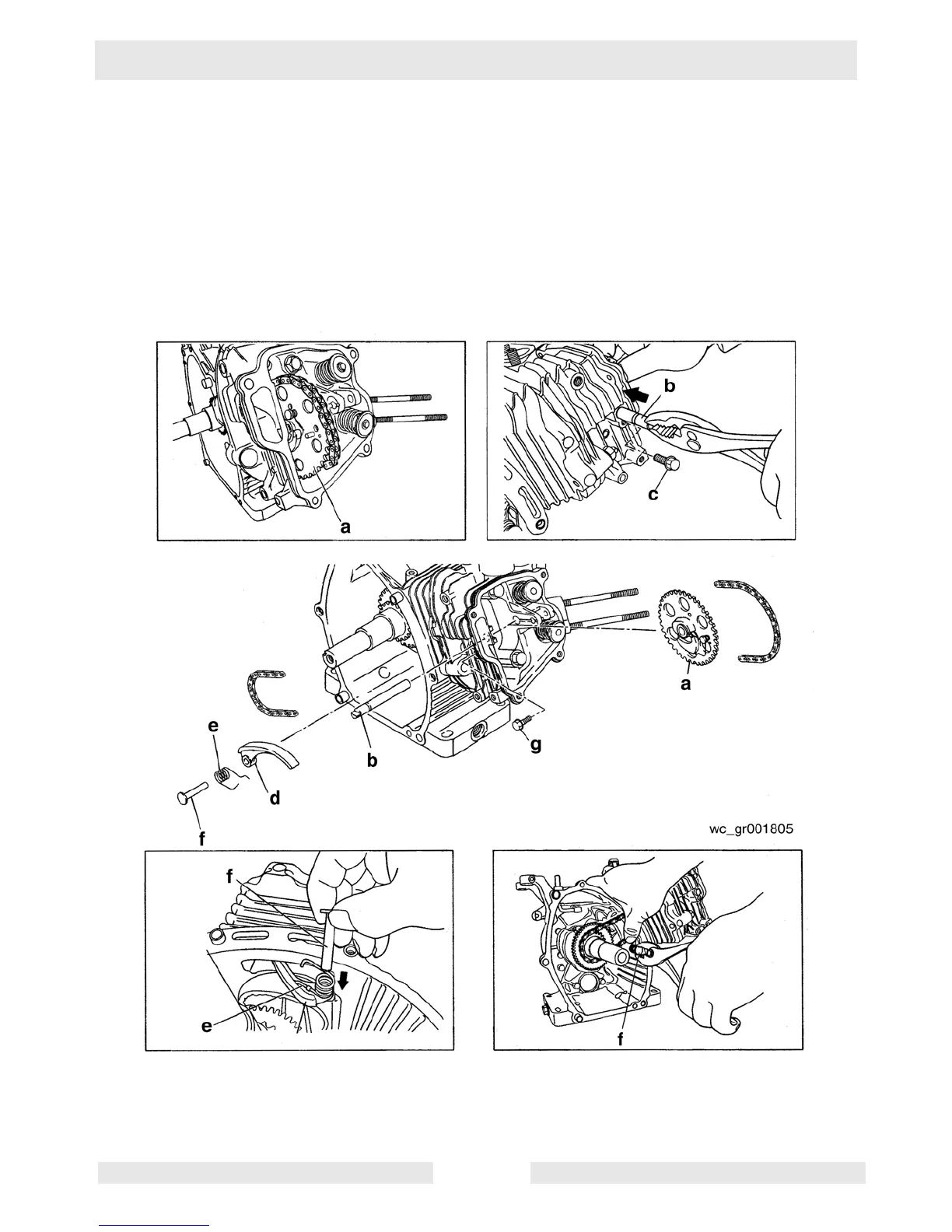

See Graphic: wc_gr001805
9.11.1
Mount the camshaft (
a)
on the cylinder head by
inserting the camshaft
pin
(b)
through the head.
Secure the pin with the M6 x 12 bolt
(c)
.
9.11.2
Also mount the tensioner
(d)
, the tensioner spring
(e)
, and the
tensioner pin
(f)
.
64
66
