WM 130/170/270 Repair Disassembly Procedures
wc_tx000379gb.fm 41
8.3 Removing Stop Switch, Recoil Starter, and Blower Housing

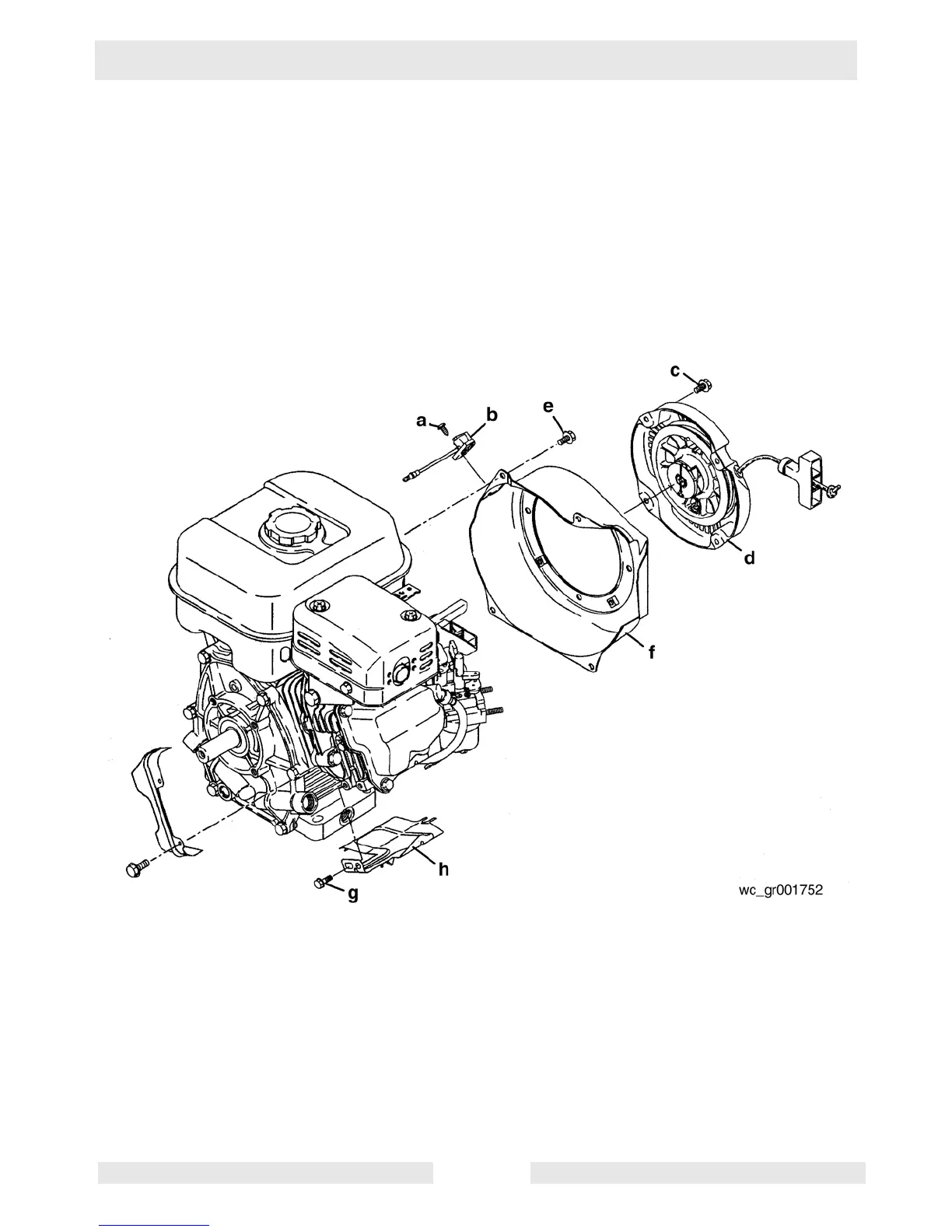

See Graphic: wc_gr001752
8.3.1 Remove the two M4 screws (a), disconnect wire, and remove the stop
switch (b).
8.3.2 Remove the four M6 bolts (c) and remove the recoil starter (d).
8.3.3 Remove the four M6 bolts (e) and remove the blower housing (f).
8.3.4 Also remove the two M6 bolts (g) and remove the head baffle (h).
