WM 130/170/270 Repair
Reassembly Procedures
wc_tx000379gb.fm
63
9.14
Mounting Rocker Arms

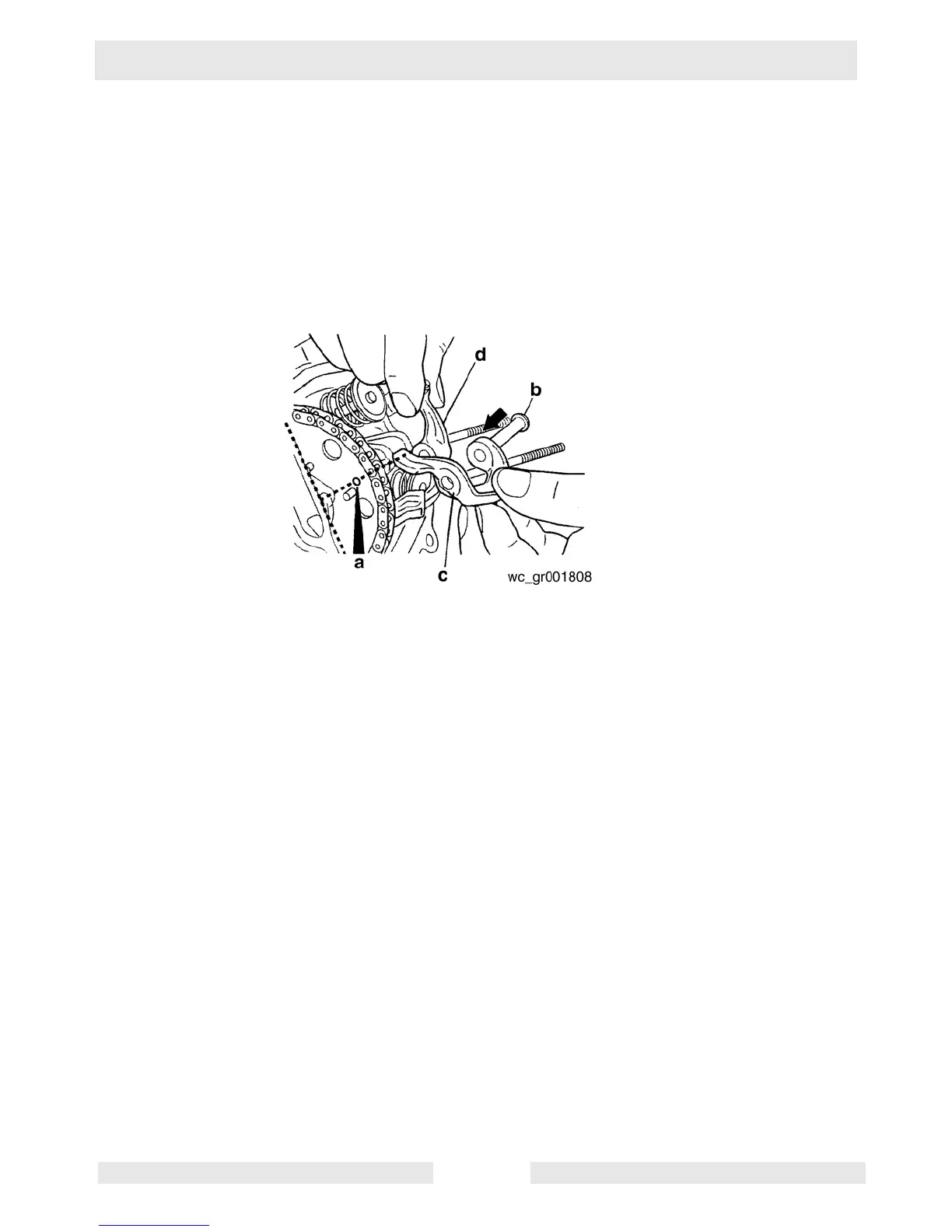

See Graphic: wc_gr001808
Note:
Complete this procedure when th
e piston is at the top dead
center position
(a)
. (Timing mark is 90° to
the cylinder head surface.)
9.14.1
Insert the rocker arm pin
(b)
through the intake valve rocker arm
(c)
,
through the exhaust rocker arm
(d)
, and mount them
to the cylinder
head.
66
68
