Disassembly Procedures
WM 130/170/270 Repair
wc_tx000379gb.fm
46
8.8
Removing Rocker Cover and Rocker Arm

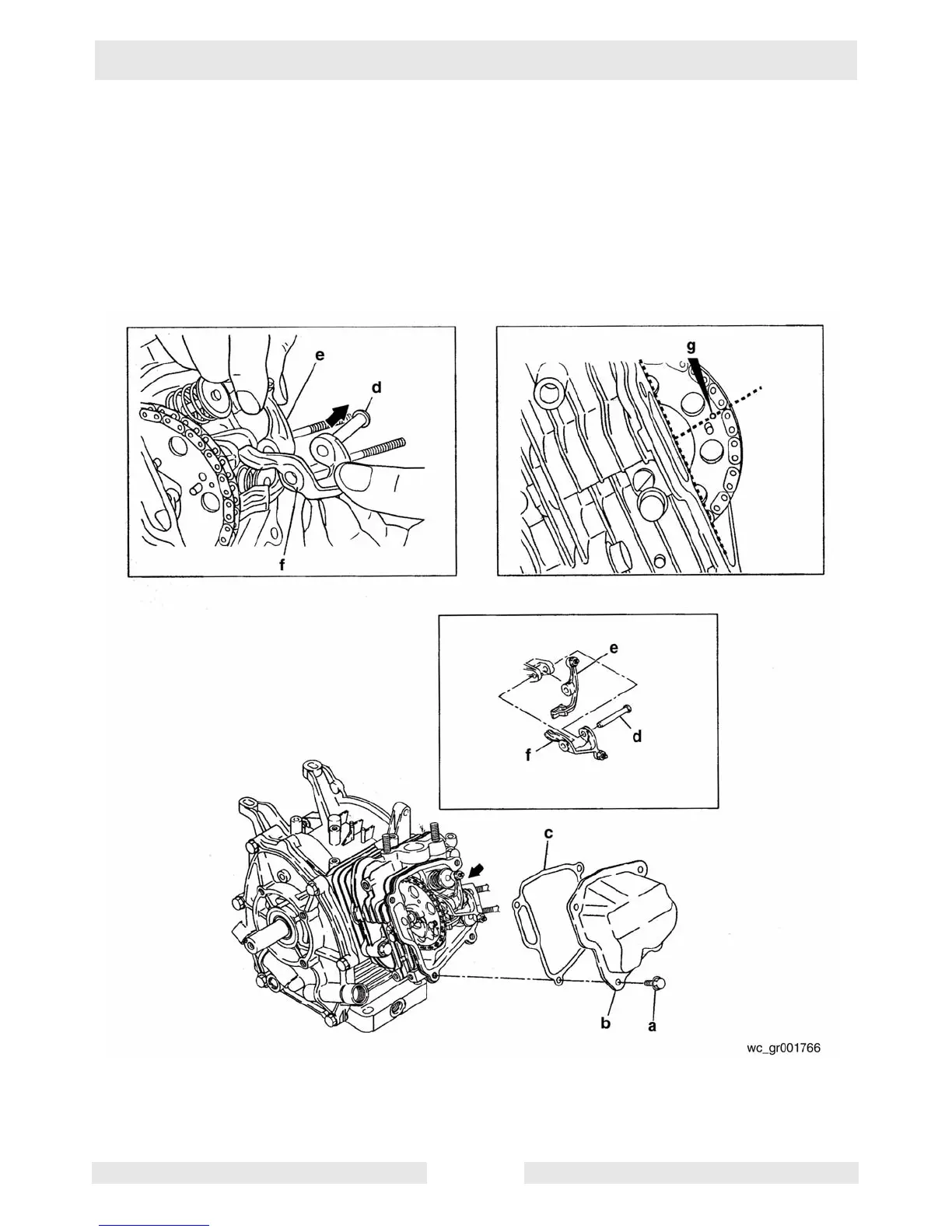

See Graphic: wc_gr001766
8.8.1
Remove the M6 bolts
(a)
securing the rocker cover
(b)
and remove the
rocker cover. Remove
the rocker cover gasket
(c)
.
8.8.2
Remove the rocker arm pin
(d)
and both exhaust-valve-side
(e)
and
intake-valve-side
(f)
rocker arms at compression top dead center
(g).
49
51
