Wacker Neuson WM 170 Repair Manual

WM 130/170/270 Repair Reassembly Procedures
wc_tx000379gb.fm 55
9.5 Piston and Connecting Rod

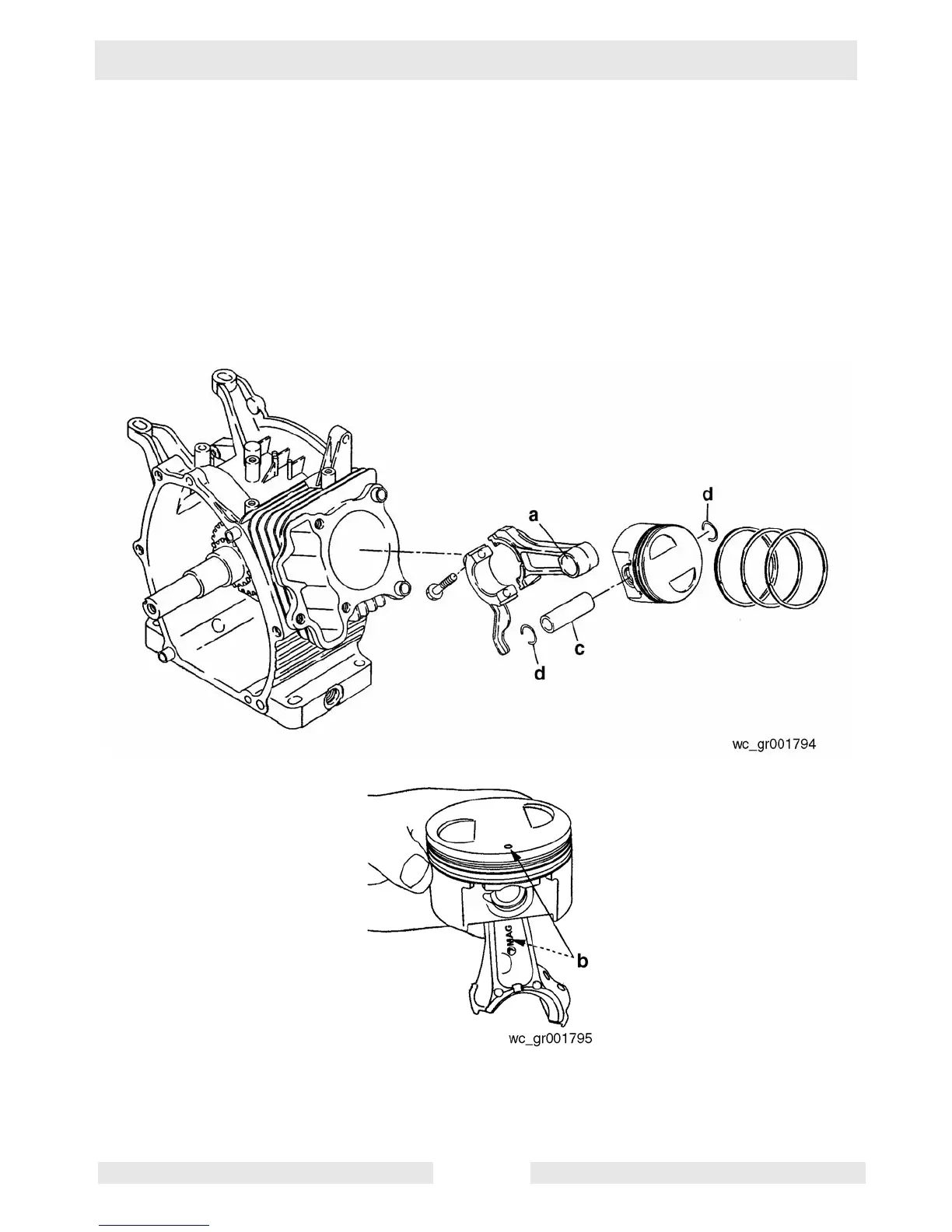

See Graphic: wc_gr001794 and wc_gr001795
9.5.1 Apply a coat of oil to the inside of the connecting rod’s small end (a).
9.5.2 Align the mark on the piston head (b) with the “MAG” mark on the
connecting rod. Insert the connecting rod into the piston head.
9.5.3 Slide the piston pin (c) through the piston and through the connecting
rod. Secure the pin with clips (d). Check pins for play. Refer to the
Clearance Data and Limits Table.
