WM 130/170/270 Repair Disassembly Procedures
wc_tx000379gb.fm 49
8.11 Removing Cylinder Head and Valves

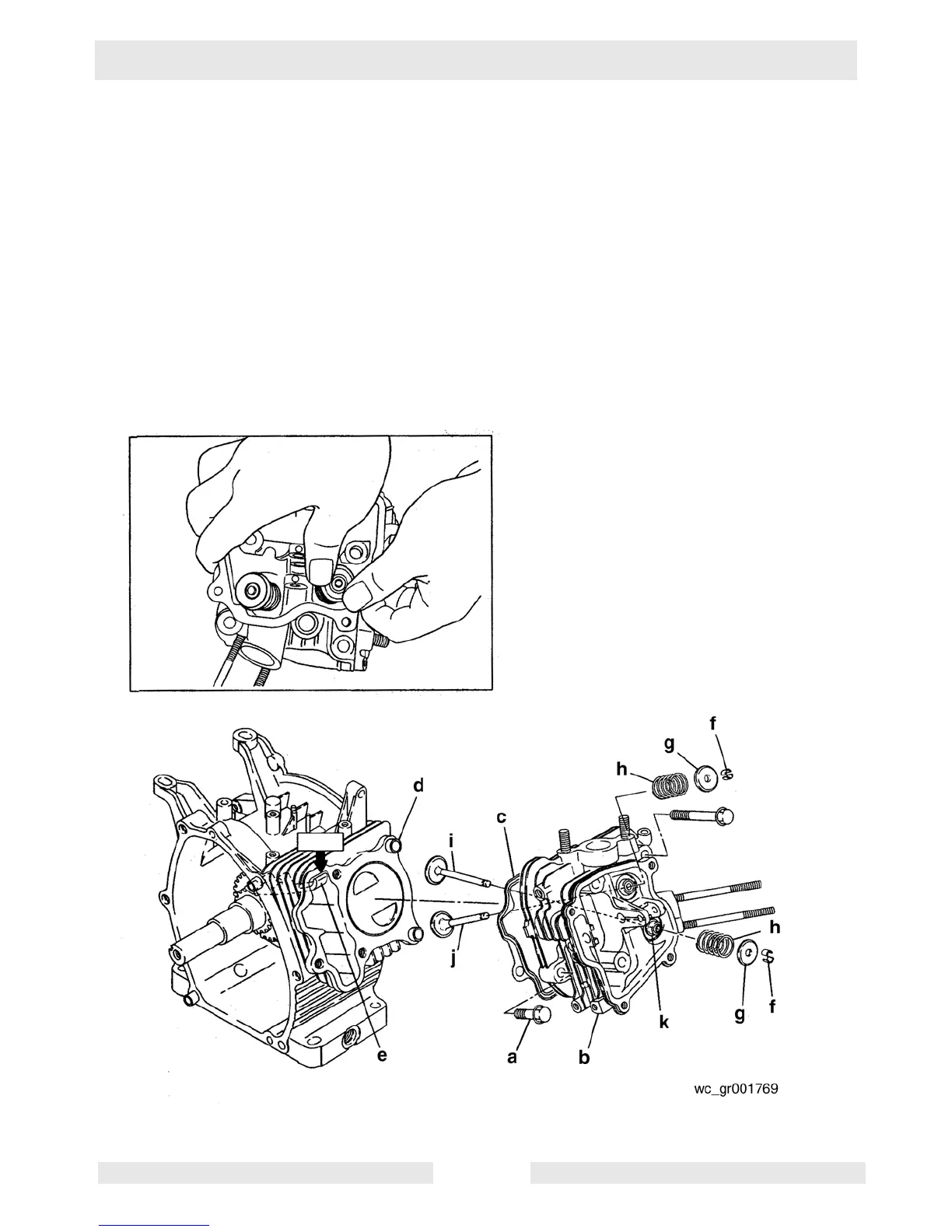

See Graphic: wc_gr001769
8.11.1 Remove the M8 bolts (a) securing the cylinder head (b) to the
crankcase and remove the cylinder head. Also remove the cylinder
head gasket (c). Be careful not to lose the guide pins (d).
8.11.2 Press down on the chain guide (e) and remove it by pulling it through
the top side of the crankcase.
8.11.3 Remove the collet (f), spring retainer (g), and valve spring (h).
Complete for both intake and exhaust.
8.11.4 Remove the intake valve (i) and the exhaust valve (j).
Reference: Stem seal (k).
