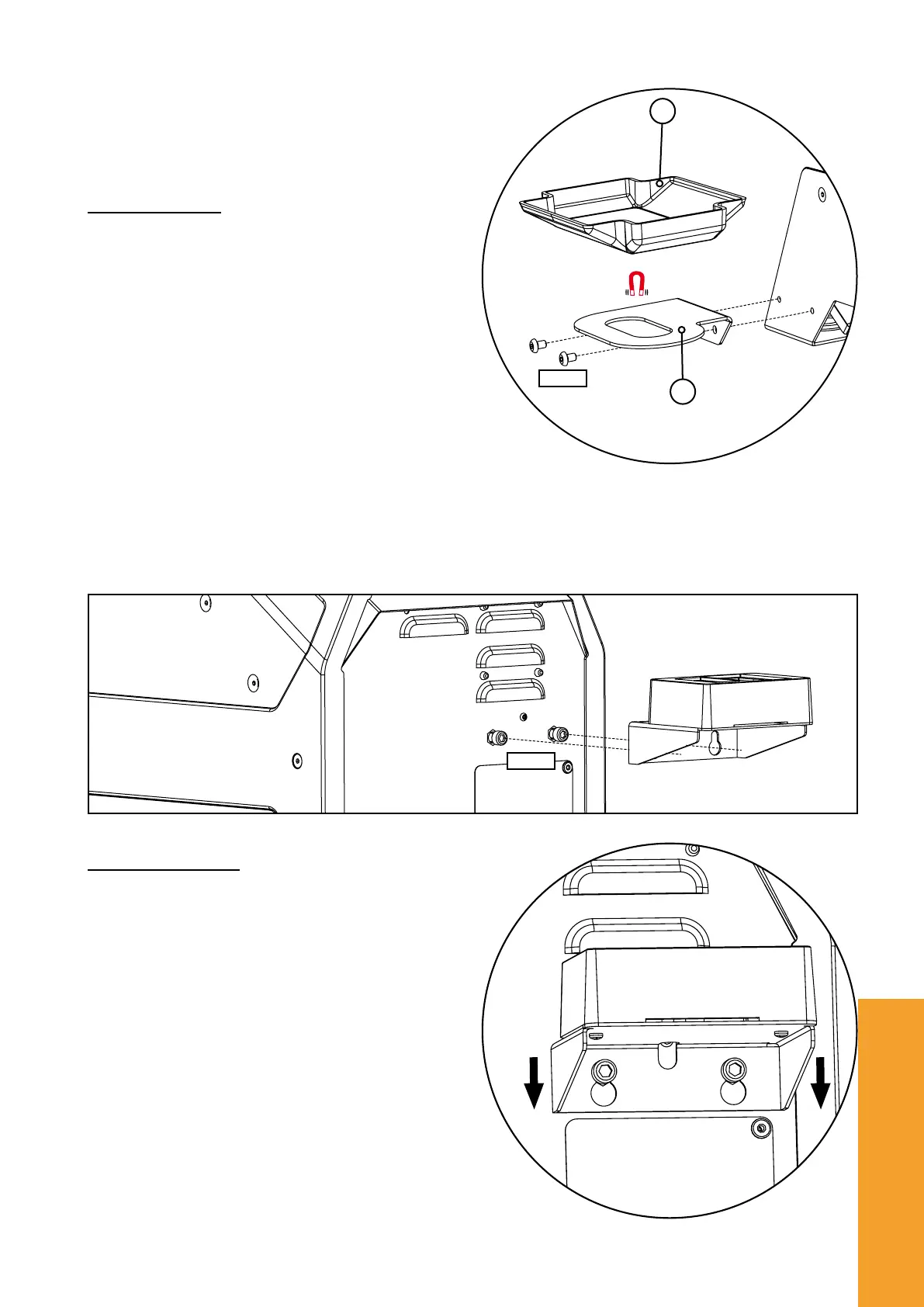

2. COLLECTING TRAY
• The collection tray consists of two parts: the bracket (A)
and the tray (B).
• First, use a 3 mm hex key (included) and two M5X8 screws
to install the bracket into the corresponding holes on the
left side of the unit.
• Then install the tray, which is equipped with magnets and
requires no tools to t into the slot on the bracket.
3. PAD MOUNTING TOOL
• The pad mounting tool should be placed on the back of the
unit, below the air intakes.
• First, use a 5 mm hex key (included) to loosen (do not
remove them completely) the two pre-installed M6X20
xing screws.
• Install the pad mounting tool using the shaped slots. Insert
the head of the screws into the widest part of the hole, then
push the bracket down to lock.
• Tighten the screws to secure the pad mounting tool.
