7.5. Mounting DW brush

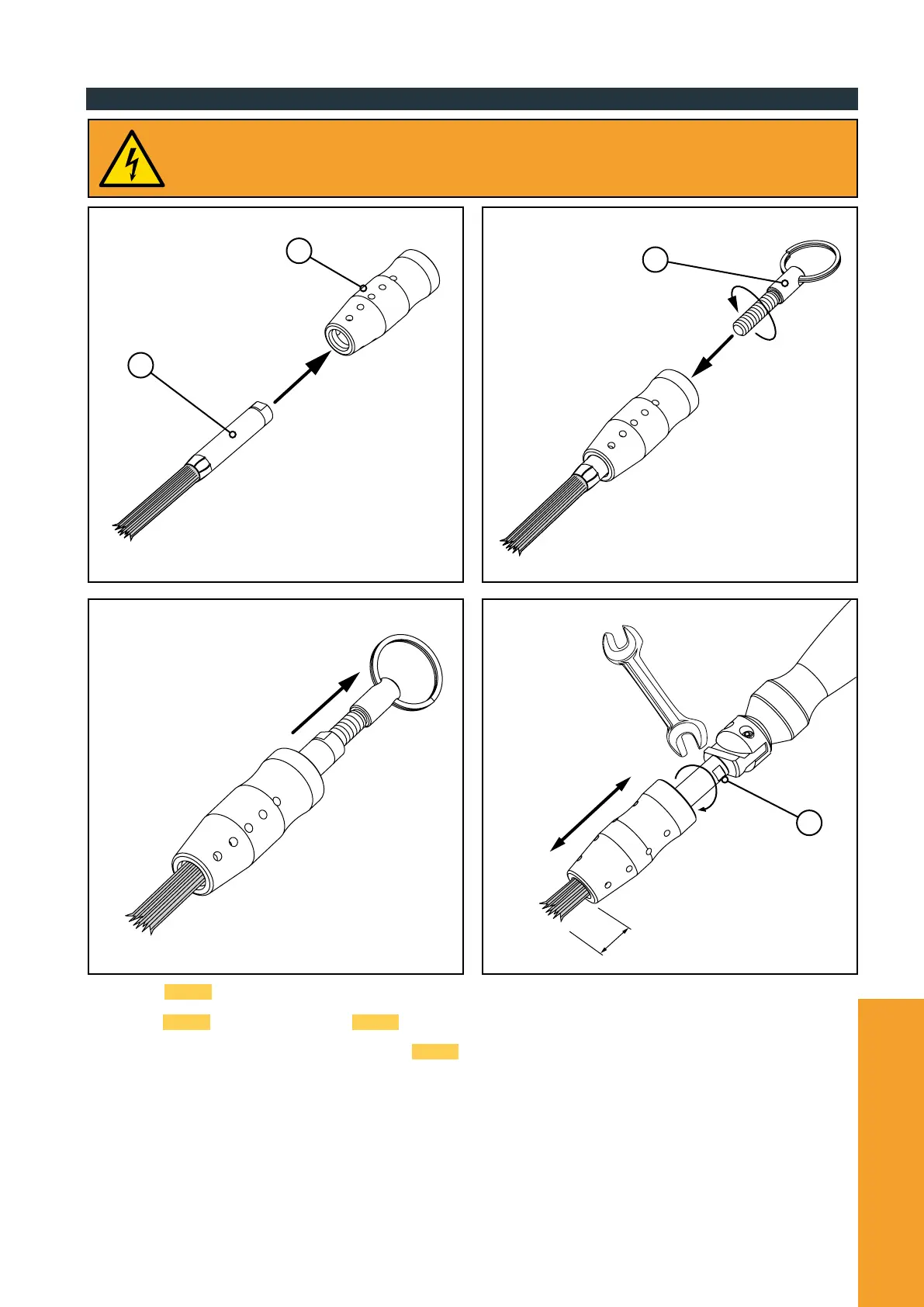

• Install the 54-B 149 brush adaptor (A) on the DW wand (see chapter 7.2).
• Insert the
54-B 604 DW brush (A) into the 54-B 605 sleeve (B).
• Screw the threaded coupling of the extraction tool
54-B 618 (C) onto the brush.
• Pull the brush out of the sleeve.
• Remove the extraction tool
• Use the 10 mm wrench (included) to tighten the brush rmly onto the adaptor thread. The brush coupling segment is shaped
(D) for easy grip with the wrench.
• Ensure that no more than 5/8" (15 mm) of carbon ber is exposed.
When installing the brushes, the DW wand must not be connected to the device.
Included
10 mm wrench
