SURFOX 306
USER MANUAL
8.4. Electrical installation

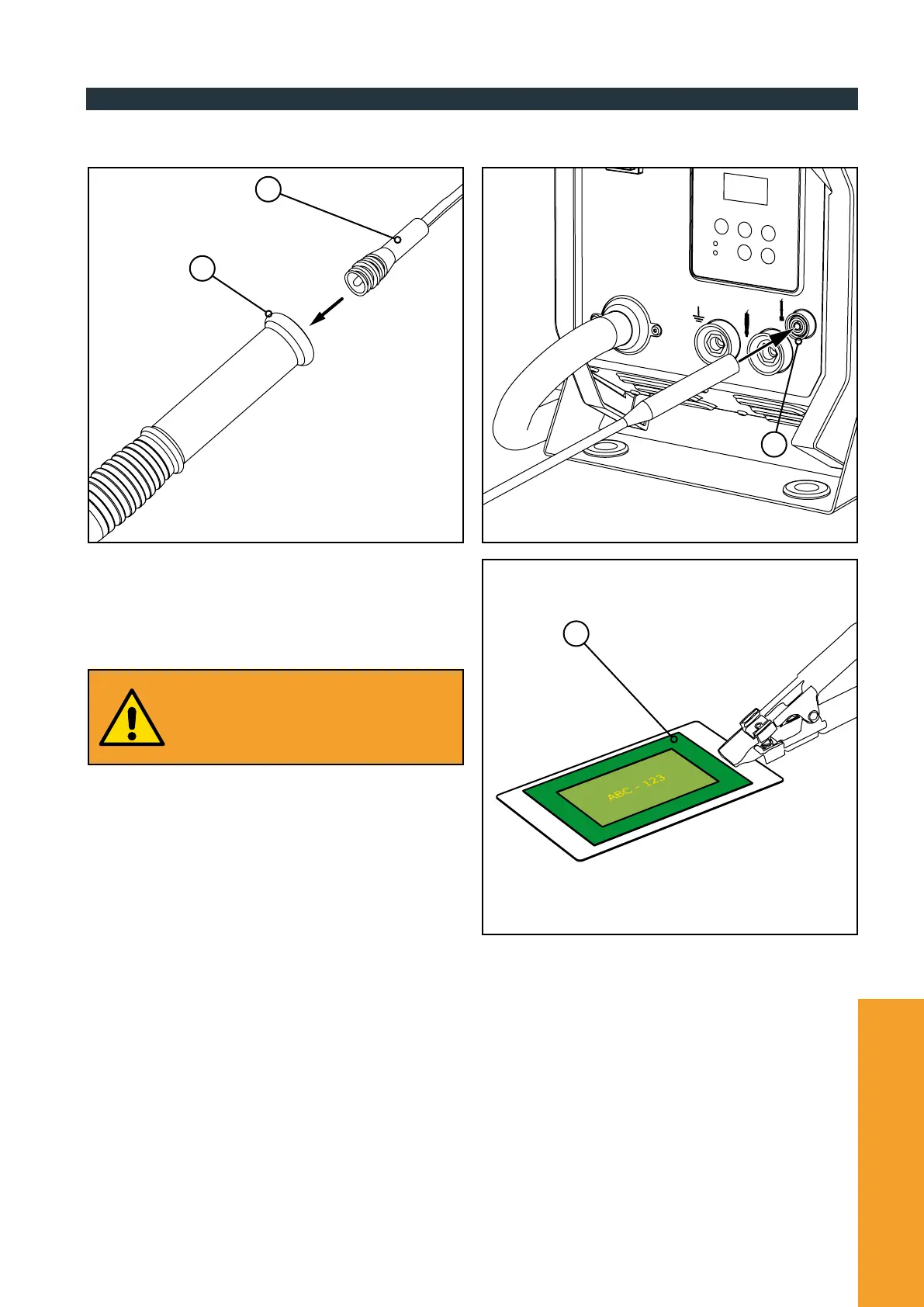

• Use the connecting cable (A) to carry out the electrical installation of the marking/etching wand; connect one end to the
appropriate coupling on the wand (B) and the other into the designated socket on the front panel of the device (C).
• Lay the screen-printing stencil (D) on the piece to
be marked/etched and check that all the preliminary
operations described in chapter 5 have been carried out
correctly. In particular, make sure that the ground cable
crocodile clip has been fastened to the stainless steel
piece to be treated.
Before using a new screen-printing stencil, it
is recommended that you use it on a sample
surface to make some test markings in order
to fully open its meshes and obtain an optimal
image.
