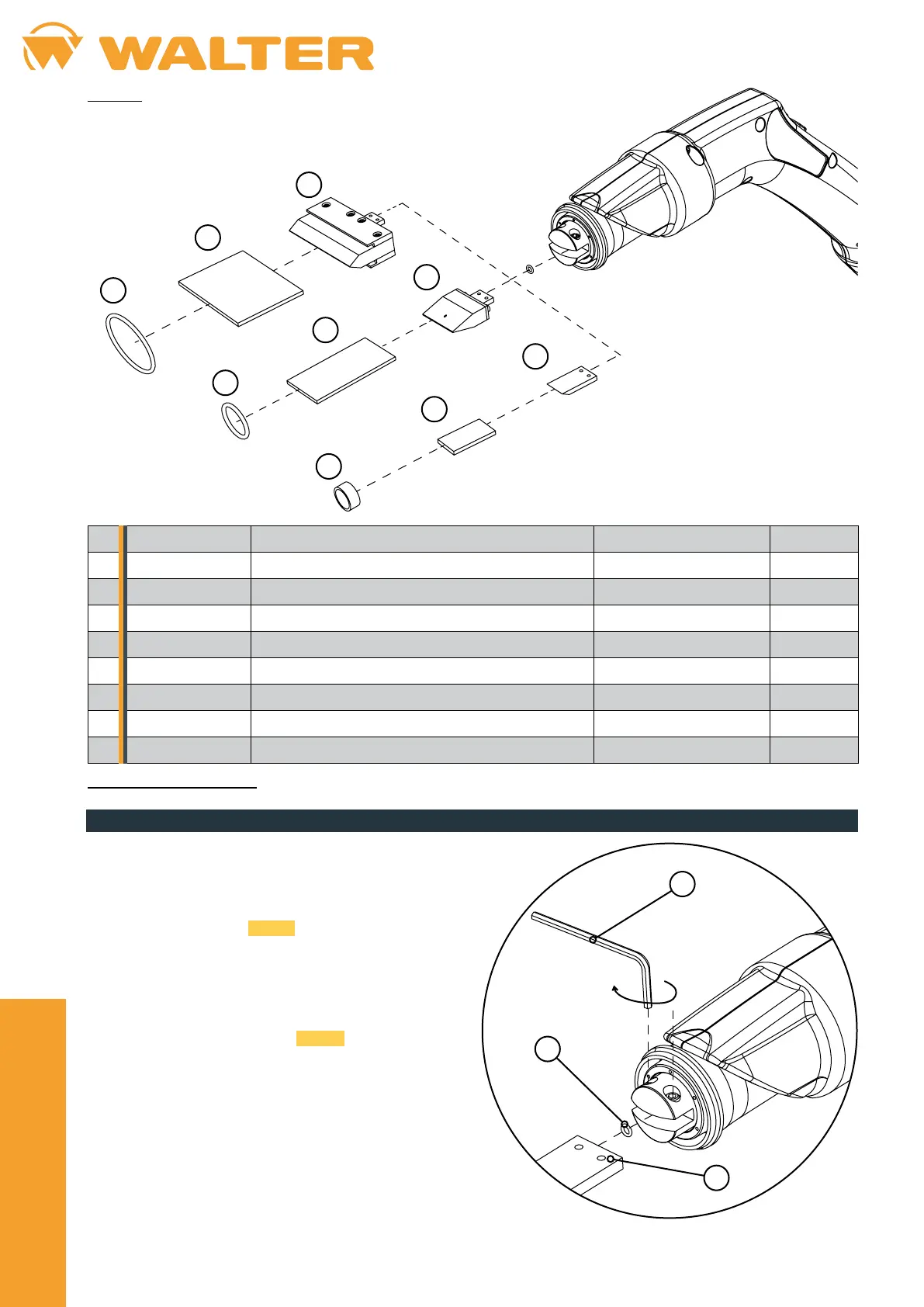

Walter SURFOX 306 - Installation of Brush Adaptor; Inserts

20
5
8
11
A
B
C
6
9
12
7
10
13
SURFOX 306 USER MANUAL
INSERTS
5 54-B 607 Graphite insert | 100 mm optional p. 22
6 54-B 608 SURFOX cleaning pad for graphite insert 100 mm optional p. 22
7 54-B 609 O-ring for graphite insert 100 mm optional p. 22
8 54-B 009 Graphite insert | 45 mm optional p. 22
9 54-B 043 SURFOX cleaning pad for graphite insert 45 mm optional p. 22
10 54-B 180 O-ring | 30 x 3.5 optional p. 22
11 54-B 143 Tungsten insert | 22 mm optional p. 23
12 54-B 026 Standard cleaning pad optional p. 23
13 54-B 002 PTFE clamp ring for standard cleaning pads optional p. 23
4.2. Installation of brush adaptor / inserts
• Take the brush adaptor 54-B 149 or the desired insert.
• In the back of the adaptor (or insert) there are the two
countersinks (A) where the wand coupling set screws will
be tightened.
• Before positioning the adaptor (or insert) on the wand
coupling, make sure that the
48-R 113 O-ring seal is in
place (B).
• Place the adaptor (or insert) on the wand coupling and
tighten the two set screws with a 2.5 mm hex key (C)
(included); make sure the set screws are properly aligned
with the countersinks (A).
Included
2.5 mm hex key
WALTER Customer Service (walter.com) is available for any additional information.
