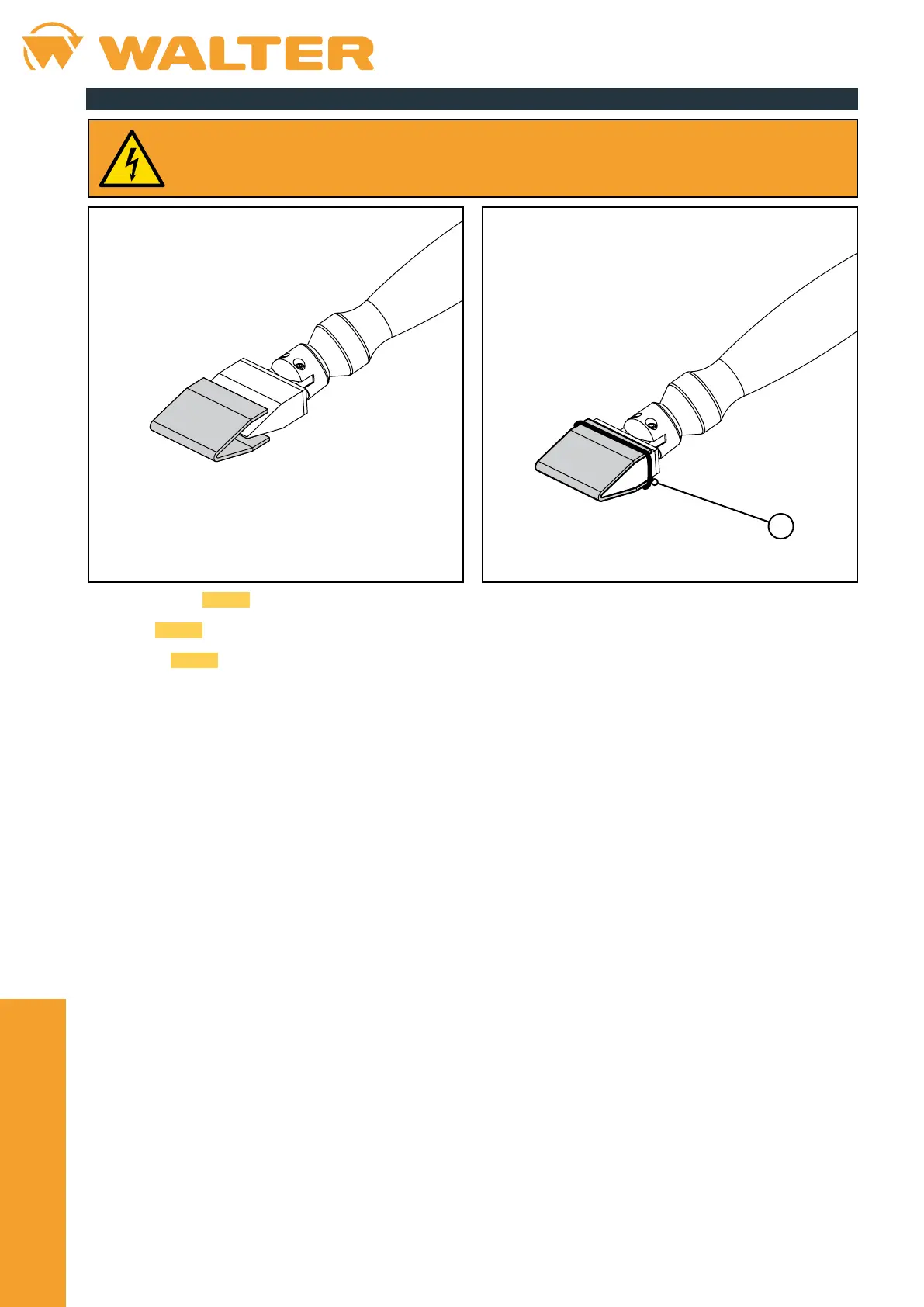

7.4. Mounting pad on graphite insert 45 mm
• Install the insert 54-B 009 on the DW wand (see chapter 7.2).
• Fold the
54-B 043 pad into a "U" shape and stick it on to the electrode.
• Fasten the
54-B 180 pad in place using the O-ring (A).
When installing the pads, the DW wand must not be connected to the device.
