Walter SURFOX 306 - Brush Bristle Length Adjustment; Direction of Inserts

24
A CB
SURFOX 306 USER MANUAL
The electrodes reach very high
temperatures during the processing
operations.
If it is necessary to change the orientation of
the insert, take care to prevent burns to the
hands.

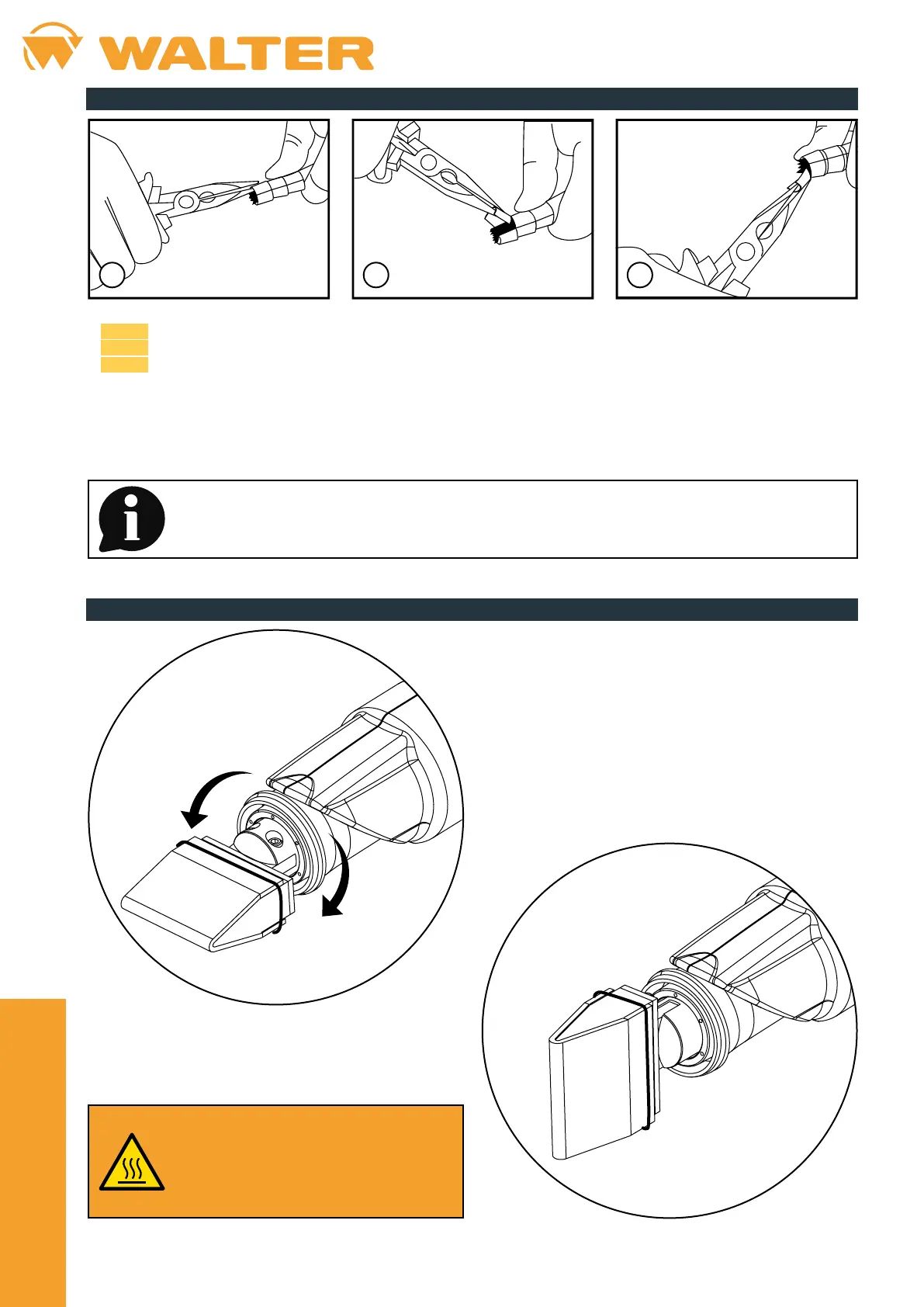

To facilitate processing when the surfaces to be treated have
particular shapes or are located in places that are di󰀩cult to
access, it is possible to adjust the wand coupling to arrange
the insert in a more comfortable position.
The insert can be rotated about ±90° with respect to the
horizontal position.
4.7. Brush bristle length adjustment
• The SURFOX 306 brushes are made up of segments that must be gradually removed as the bristles wear out.
54-B 606 4 segments
54-B 155 3 segments
54-B 601 3 segments
• Once the bristles are worn down, use long nose pliers to remove the rst segment (A).
• Insert the long nose into the sleeves and lift up the top part of the sleeve (B).
• Do the same with the other half (C).
For an optimum performance and a better durability of the brush, thoroughly saturate the bers and perform the
cleaning of the welds with su󰀩cient amount of electrolyte solution. Rinse the brush with water and neutralize
with Surfox-N after use.
4.8. Direction of inserts
