SURFOX 306 USER MANUAL

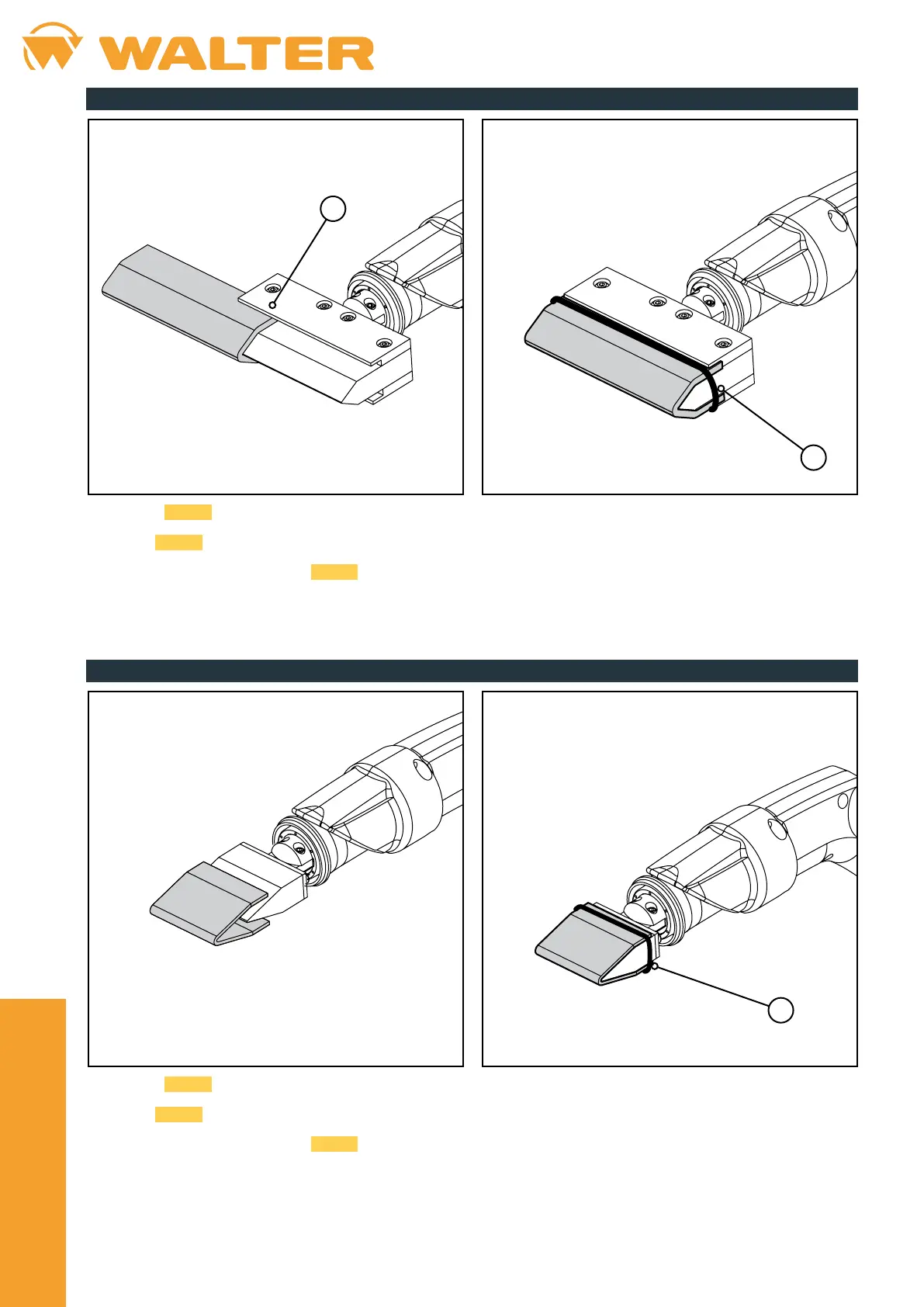

4.4. Mounting pad on graphite insert 100 mm
• Install the 54-B 607 insert on the wand (see chapter 4.2).
• Fold the
54-B 608 pad into a "U" shape and slide it into the ns with grooves (A) on the electrode.
• Fasten the pad in place using the
54-B 609 O-ring (B).
• Adjust the insert direction as needed (see chapter 4.8).
4.5. Mounting pad on graphite insert 45 mm
• Install the 54-B 009 insert on the wand (see chapter 4.2)
• Fold the
54-B 043 pad into a "U" shape and stick it on to the electrode.
• Fasten the pad in place using the
54-B 180 O-ring (A).
• Adjust the insert direction as needed (see chapter 4.8).
