SURFOX 306
USER MANUAL

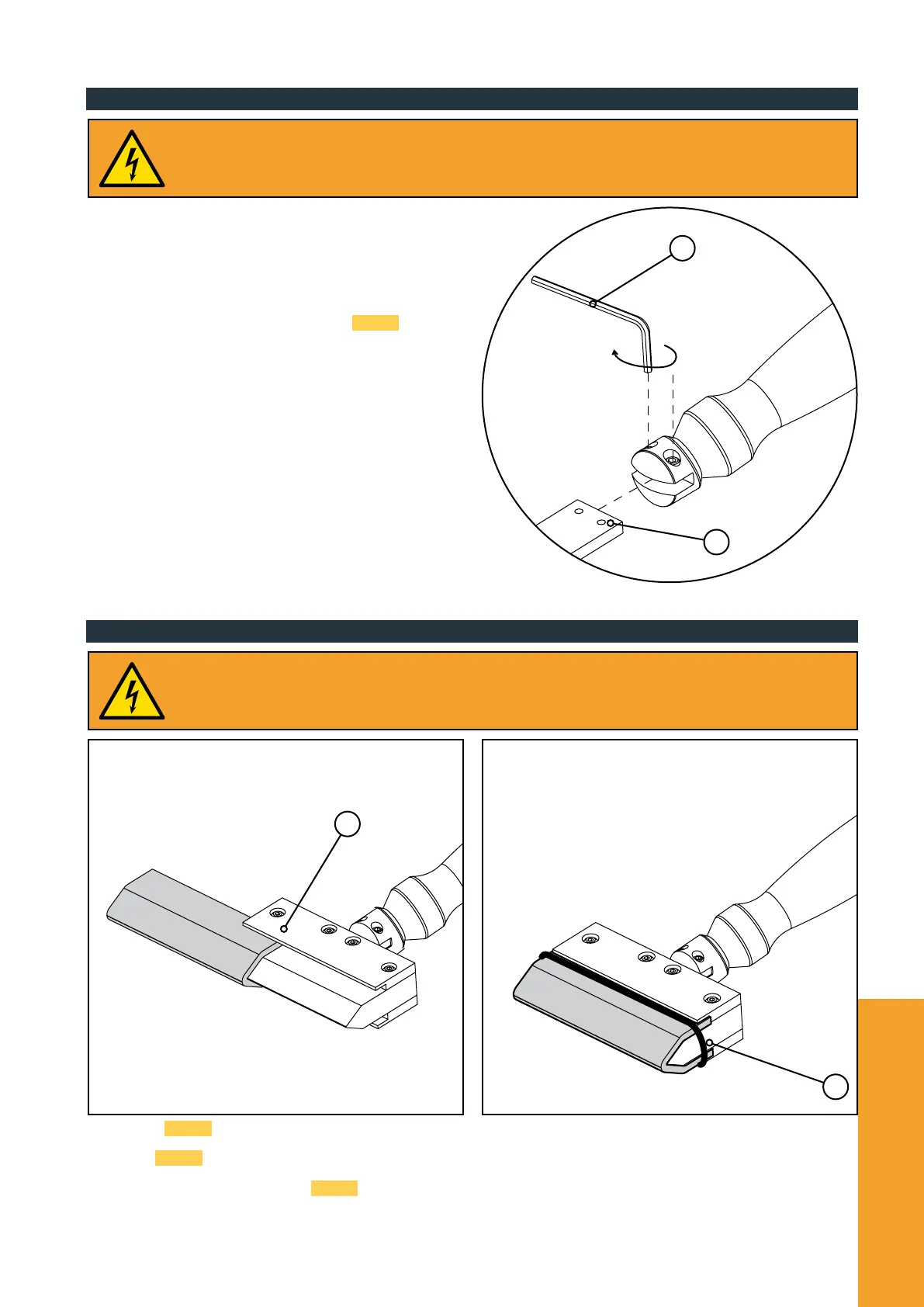

7.2. Installation of inserts / brush adaptor
• Take the desired insert or brush adaptor 54-B 149.
• In the back of the insert (or adaptor) there are the two
countersinks (A) where the DW wand coupling set screws
will be tightened.
• Place the insert (or adaptor) on the DW wand coupling
and tighten the two set screws with a 2.5 mm hex key (B)
(included); make sure the set screws are properly aligned
with the countersinks (A).
7.3. Mounting pad on graphite insert 100 mm
• Install the 54-B 607 insert on the DW wand (see chapter 7.2).
• Fold the
54-B 608 pad into a "U" shape and slide it into the ns with grooves (A) on the electrode.
• Fasten the pad in place using the
54-B 609 O-ring (B).
When installing the pads, the DW wand must not be connected to the device.
When installing the inserts and adaptor, the DW wand must not be connected to the device.
