2.6.1.9 One piece PEEK fitting

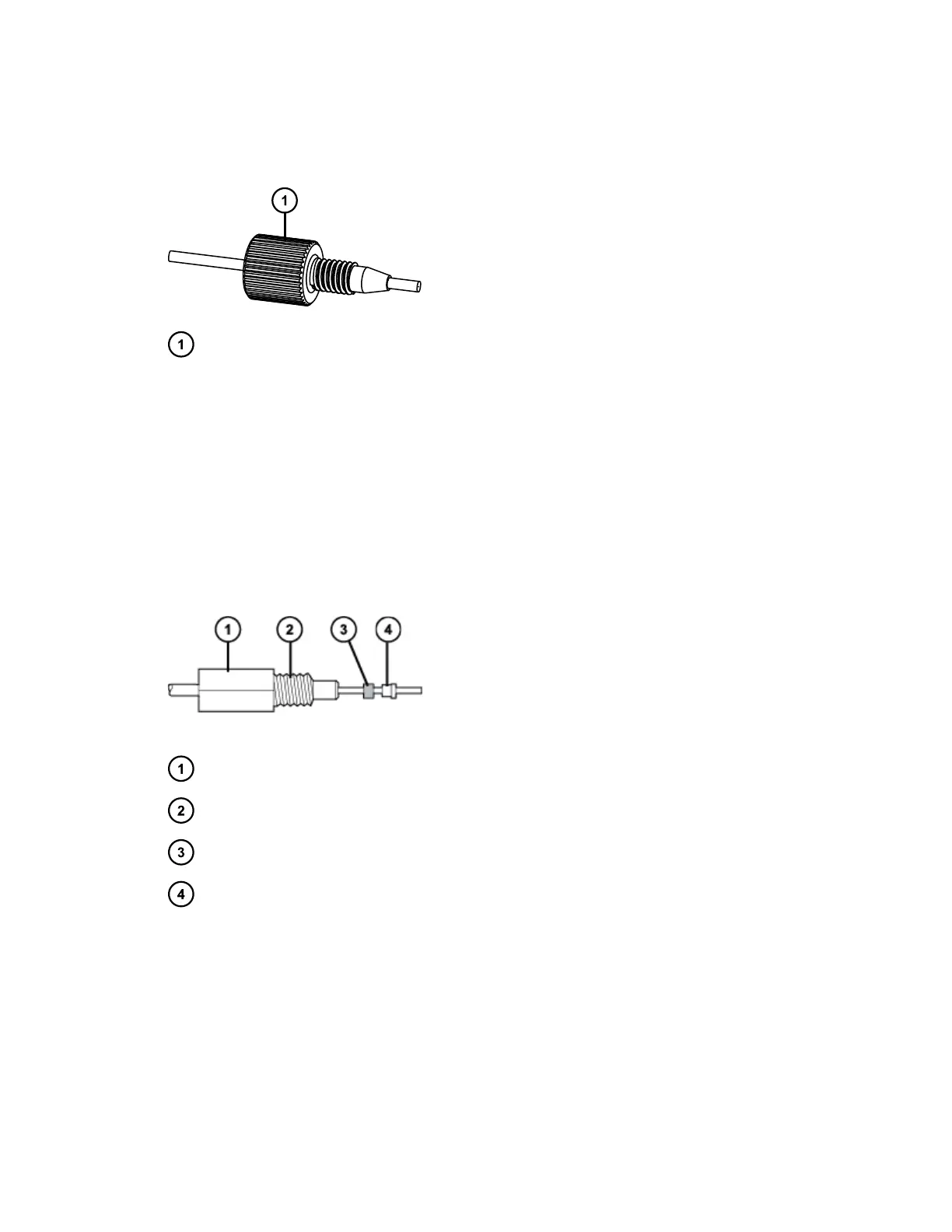

Figure 2–6: First use or reinstalled
Compression screw
Tighten the fitting finger-tight.
Tips:
• You can also use the column-gripping tool when tightening this fitting.
• To prevent band spreading, ensure that the tubing is fully bottomed in the connection port
before tightening the fitting.
2.6.1.10
PEEK fitting with flat bottom ferrule
Figure 2–7: First use with unassembled ferrule
Flats
Compression screw
Lock ring
Ferrule
Tighten the fitting finger-tight plus an additional 1/4-turn using a 1/4-inch open-end wrench.
Tip: To prevent band spreading, ensure that the tubing is fully bottomed in the connection port
before you tighten the compression screw.
November 26, 2019, 715003588 Revision C
Page 39
