Waters ACQUITY UPLC M-Class - Page 44

Reinstalled
Short flats
Compression screw
Two-piece stainless steel ferrule
Tighten the fitting finger-tight plus as much as an additional 1/6-turn using a 1/4-inch open-end
wrench.
Reinstalled tightening
2.6.1.14

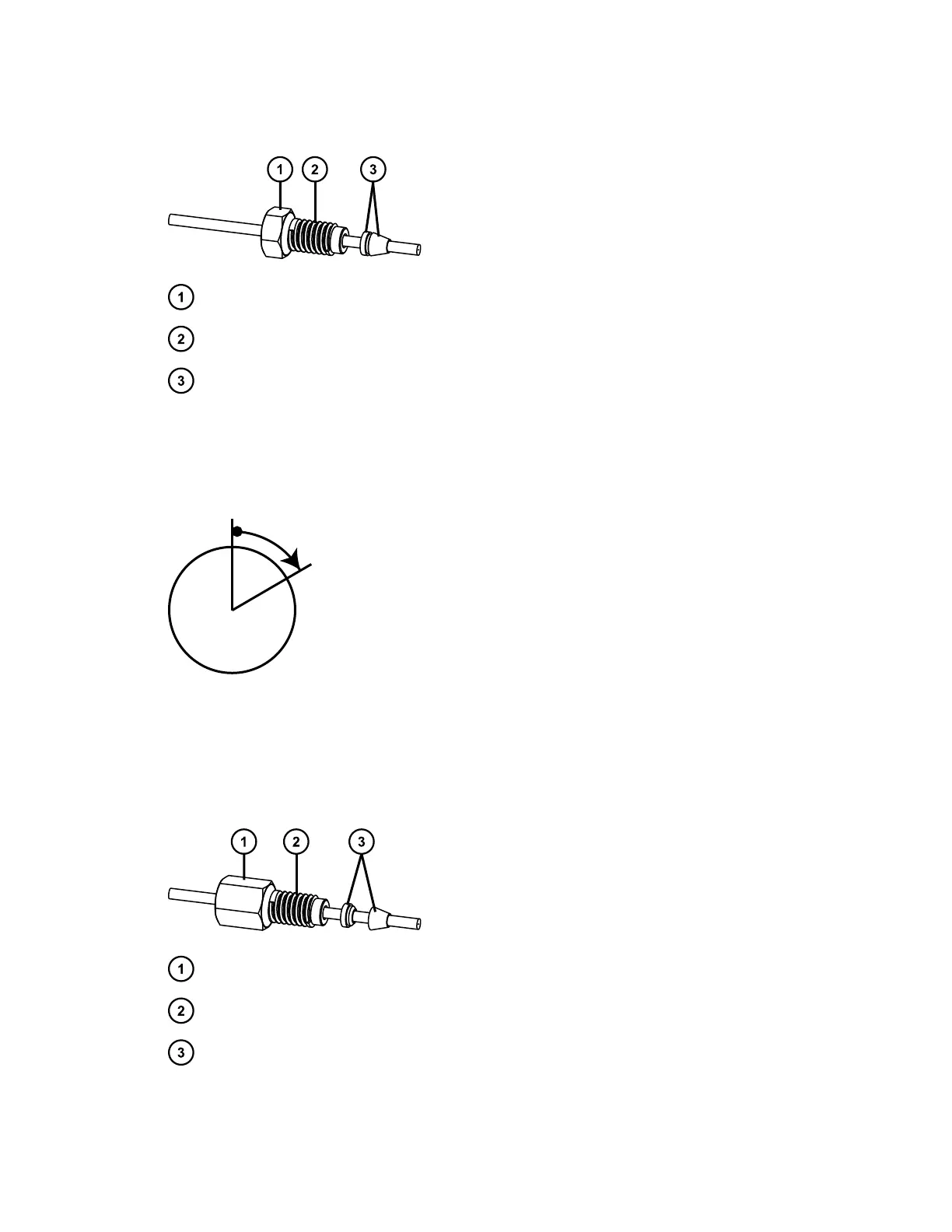

V-detail stainless steel (gold-plated) fitting with long flats and two-piece
stainless steel ferrule (for use with stainless steel tubing)
First use
Long flats
Compression screw
Two-piece stainless steel ferrule
Tighten the fitting finger-tight, plus an additional 3/4-turn using a 1/4-inch open-end wrench.
November 26, 2019, 715003588 Revision C
Page 44
