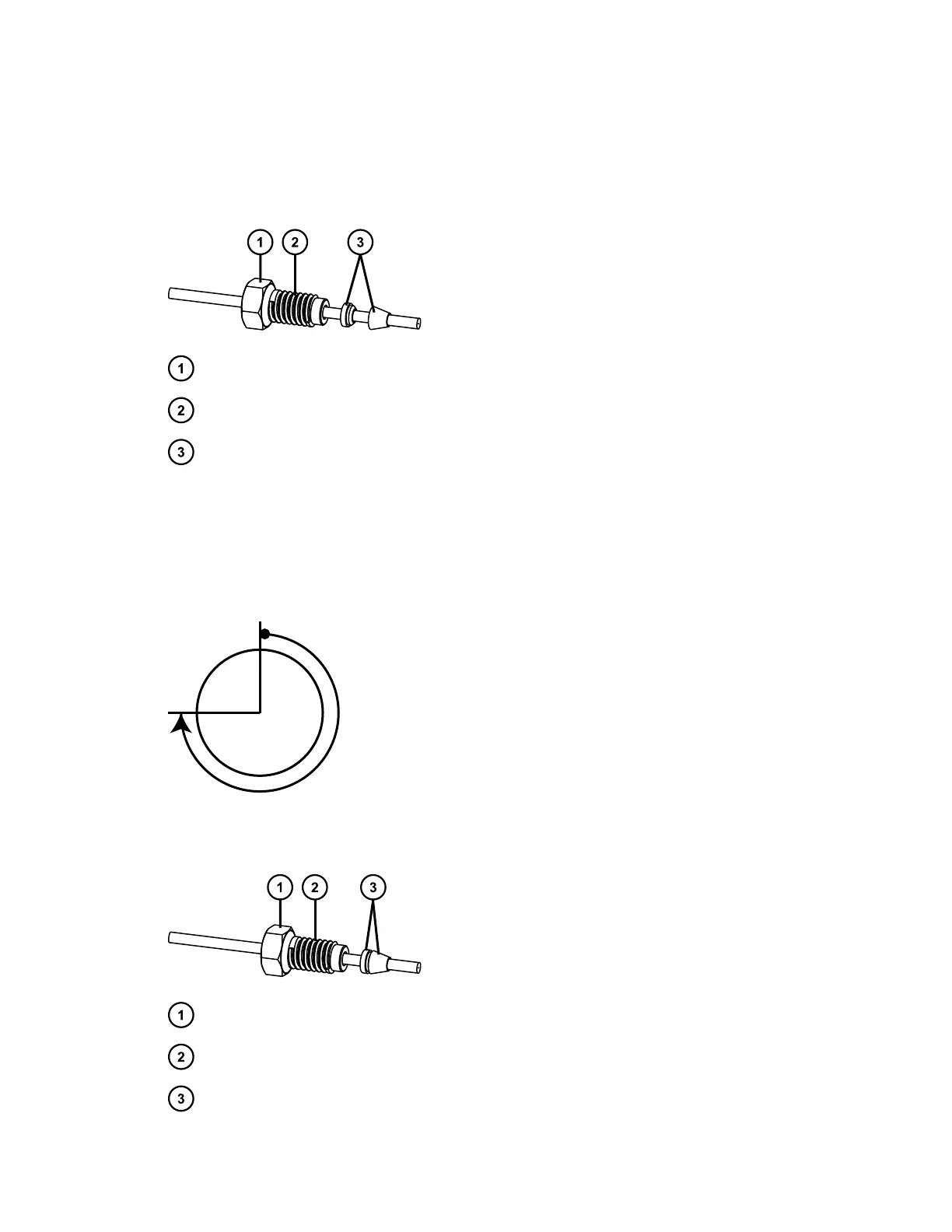

2.6.1.15 V-detail stainless steel (gold-plated) fitting with short flats and two-piece
stainless steel ferrule (for use with stainless steel tubing)
First use
Short flats
Compression screw
Two-piece stainless steel ferrule
Tighten the fitting finger-tight, plus an additional 3/4-turn using a 1/4-inch open-end wrench.
Tip: To prevent band spreading, ensure that the tubing is fully bottomed in the fitting before
tightening the compression screw.
First use tightening
Reinstalled
Short flats
Compression screw
Two-piece stainless steel ferrule
November 26, 2019, 715003588 Revision C
Page 46
